Bently Nevada Vibration Probe 3500/32M 4 Channel Relay Module 149986-02 125720-01
| Place of Origin | USA |
|---|---|
| Brand Name | Bently Nevada |
| Certification | ROHS |
| Model Number | 149986-02 |
| Document | 3500-32M 4-Channel Relay Mo...33.pdf |
| Minimum Order Quantity | 1pc |
| Price | negotiable |
| Packaging Details | standard carton packing |
| Delivery Time | 12-16weeks |
| Payment Terms | T/T |
| Supply Ability | 100pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Consumption | 5.8 Watts Typical | Type | Single-pole, Double-throw (SPDT) Relays |
|---|---|---|---|
| Dimensions | 241 Mm X 24.4 Mm X 242 Mm | Weight | 0.7 Kg (1.6 Lb.) |
| Main Module | 1 Full-height Front Slot | I/O Modules | 1 Full-height Rear Slot. |
| Highlight | bently nevada vibration probe,4 Channel Relay Module,125720-01 |
||
Product Description

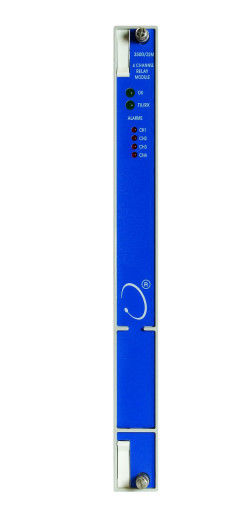

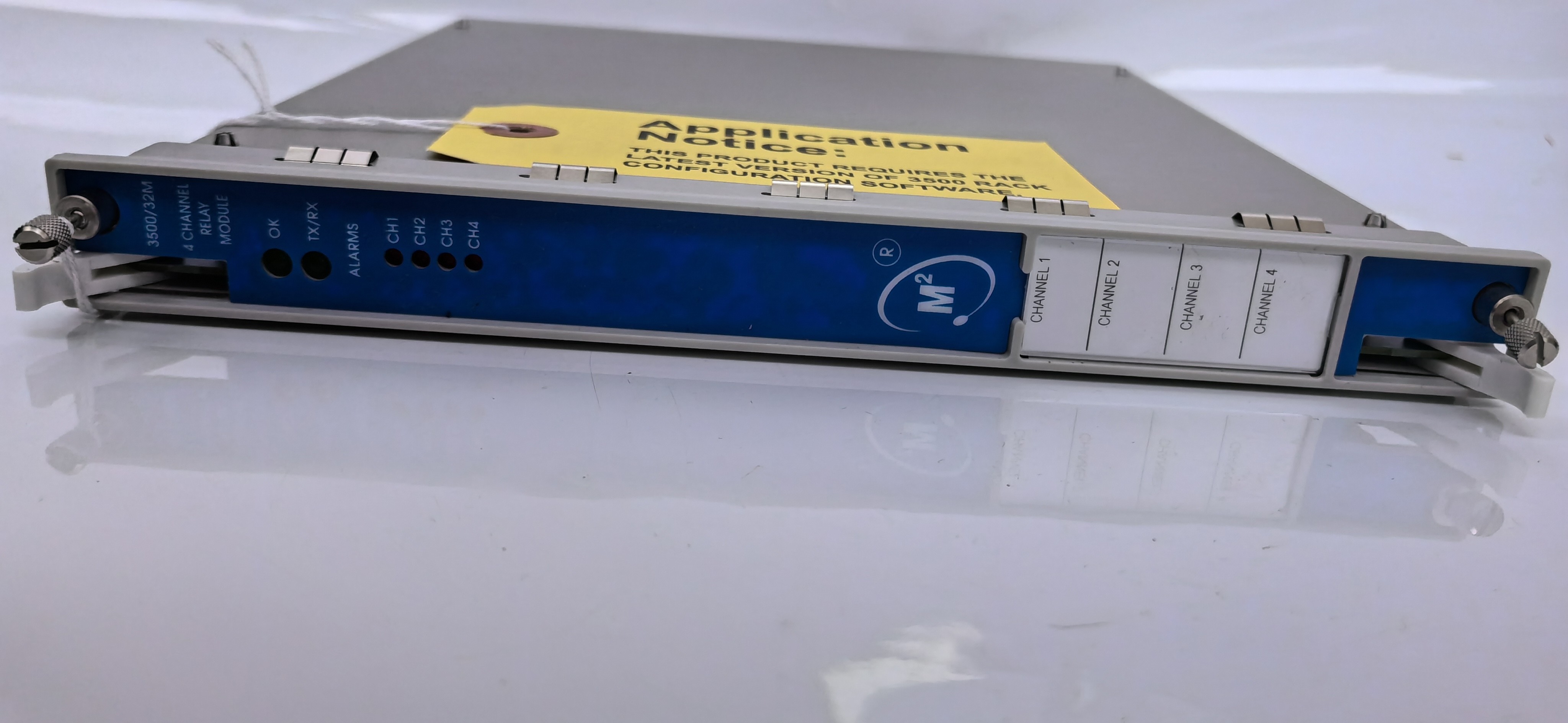

Bently Nevada 3500/32M 4-Channel Relay Module 3500/32-01-00 149986-02 125720-01
Description
The 4-Channel Relay Module is a full-height module that provides four relay outputs. Any number of 4-Channel Relay Modules can be placed in any of the slots to the right of the Transient Data Interface Module. Each output of the 4- Channel Relay Module can be independently programmed to perform voting logic.
Each relay utilized on the 4-Channel Relay Module includes Alarm Drive Logic.
Programming for the Alarm Drive Logic uses AND and OR logic, and can use alarming inputs (Alert and Danger statuses), Not- OK, or individual PPLs from any monitor channel or any combination of monitor channels in the rack. You can program this Alarm Drive to meet your application needs using the 3500 Rack Configuration Software.
Ordering Information
3500/32 -AA-BB
|
A: Output Module |
|
|
01 |
4-Channel Relay Output Module |
|
B: Agency Approval Option |
|
|
00 |
None |
|
01 |
cNRTLus (Class I, Div 2) |
|
02 |
ATEX/IECEx/CSA (Class I, Zone 2) |
Spares
|

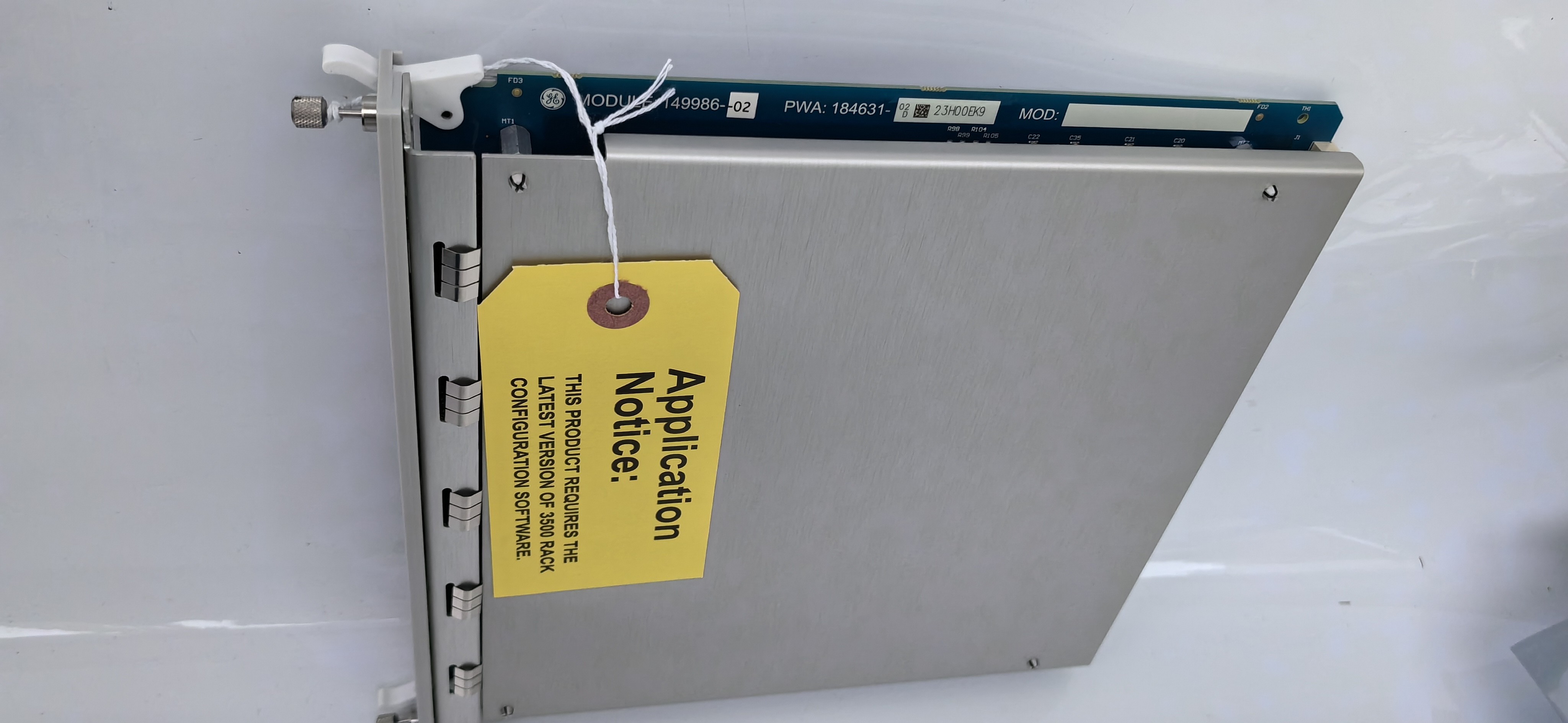

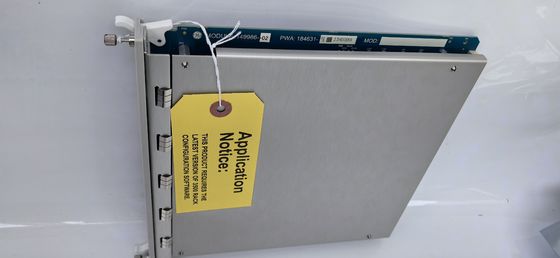

149986-02 |
Spare 4-Channel Relay Control Module |
|
125720-01 |
Spare 4-Channel Relay Output Module (available for repair only) |
|
125720-02 |
Spare 4-Channel Relay Output Module for hazardous area systems and functional safety systems |
|
04425545 |
Grounding wrist strap (single use) |
|
00580453 |
Connector header, internal termination, 16-position, green |
|
00580436 |
Connector header, internal termination, 6-position, green |
|
166M2390 |
Connector header, push-inspring type (alternative for PN 00580436) |
