Bently Nevada 3500 System 40m Proximitor Monitor 3500/40-01-00 126615-01 125680-01
Product Details:
| Place of Origin: | USA |
| Brand Name: | Bently Nevada |
| Certification: | CE |
| Model Number: | 3500/40-01-00 3500/40-02-00 176449-01 126615-01 125680-01 |
| Document: | 3500-40M Proximitor Monitor...35.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard carton packing |
| Delivery Time: | 12-16weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Signal: | Accepts From 1 To 4 Proximity Transducer Signals | Power Consumption: | 7.7 Watts, Typical |
|---|---|---|---|
| Standard I/O: | The Effective Impedance Of Three Bussed TMR I/O Channels Wired In Parallel To One Transducer Is50 KΩ | Dimensions: | 241.3 Mm X 24.4 Mm X 241.8 Mm |
| Monitor Module Weight: | 0.91 Kg (2.0 Lb) | Rack Space Requirements: | Monitor:1 Full-height Front Slot I/O Modules:1 Full-height Rear Slot |
| Highlight: | Bently Nevada 3500 System 40m,Bently Nevada 3500 System 7.7watt,bently nevada 3500 40m 125680-01 |
||
Product Description
Bently Nevada 3500/40M Proximitor Monitor 3500/40-01-00 3500/40-02-00 176449-01 126615-01 125680-01
Description

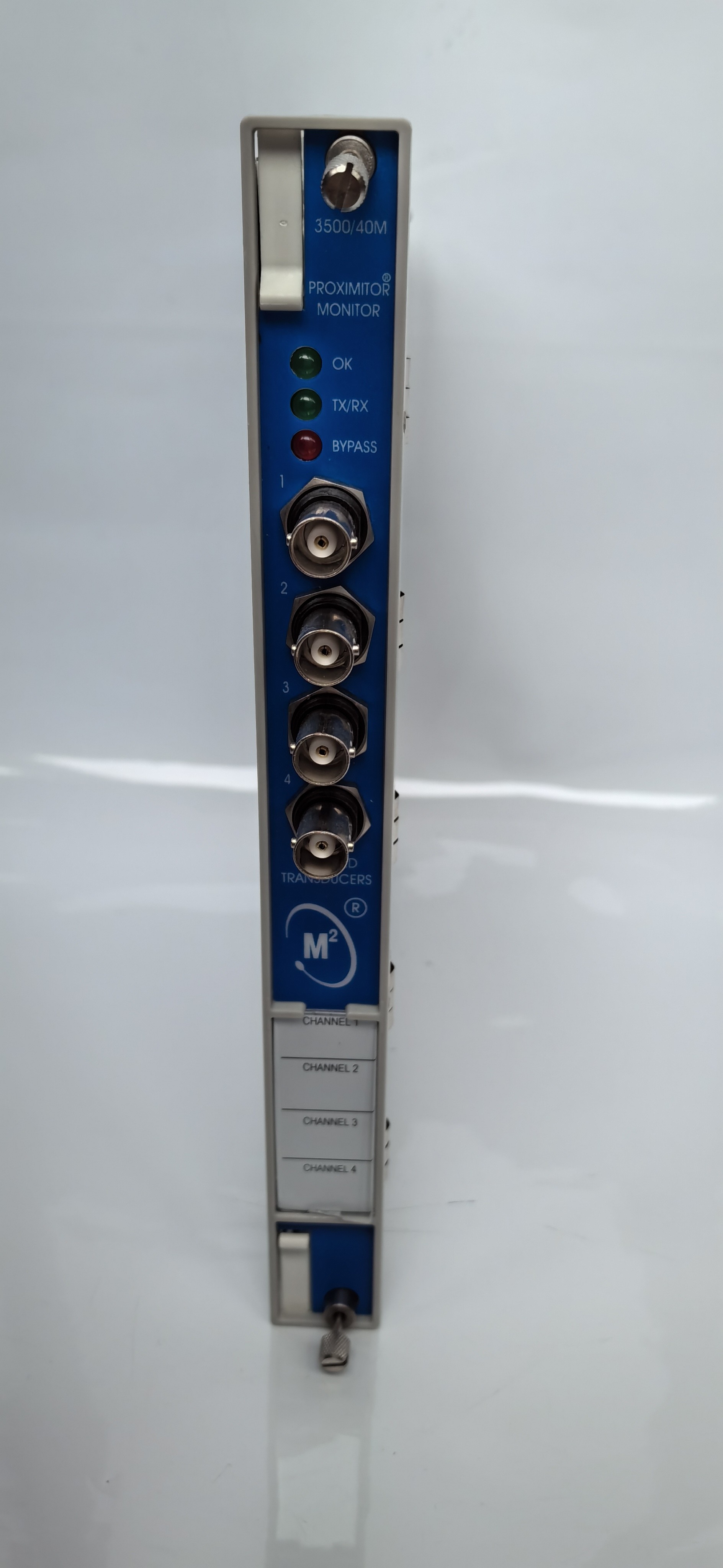

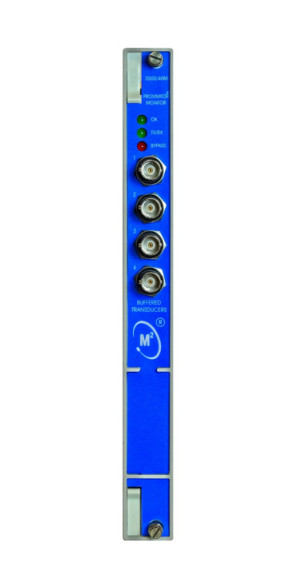

The 3500/40M Proximitor Monitor is a four-channel monitor that accepts input from Bently Nevada proximity transducers, conditions the signal to provide various vibration and position measurements, and compares the conditioned signals with user-programmable alarms. The user can program each channel of the 3500/40M with the 3500 Rack Configuration Software to perform any of the following functions:
Radial vibration Eccentricity REBA
Thrust position Differential expansion
The primary purpose of the 3500/40M Proximitor Monitor is to provide the following:
Machinery protection by continuously comparing monitored parameters against configured alarm setpoints to drive alarms
Essential machine information for both operations and maintenance personnel.
Each channel, depending on configuration, typically conditions its input signal to generate various parameters called static values. You can configure alert setpoints for each active static value and danger setpoints for any two of the active static values.
Ordering Information
Proximitor Monitor 3500/40M - AA-BB
|
A: I/O Module Type |
|
|
01 |
Proximitor I/O Module with Internal Termination |
|
02 |
Proximitor I/O Module with External Terminations |
|
03 |
Proximitor I/O Module with Internal Barriers and Internal Terminations |
|
B: Hazardous Area Approval Option |
|
|
00 |
None |
|
01 |
cNRTLus (Class 1, Division 2) |
|
02 |
ATEX / IECEx / CSA (Class 1, Zone 2) |
External Termination Blocks
| 125808-01 | Proximitor ET Block Euro Style Connectors |
| 128015-01 | Proximitor ET Block Terminal Strip Connectors |
| 132242-01 | Proximitor/ Seismic TMR ET Block Euro Style Connectors |
| 132234-01 | Proximitor/Seismic TMR ET Block Terminal Strip Connectors |
Spares

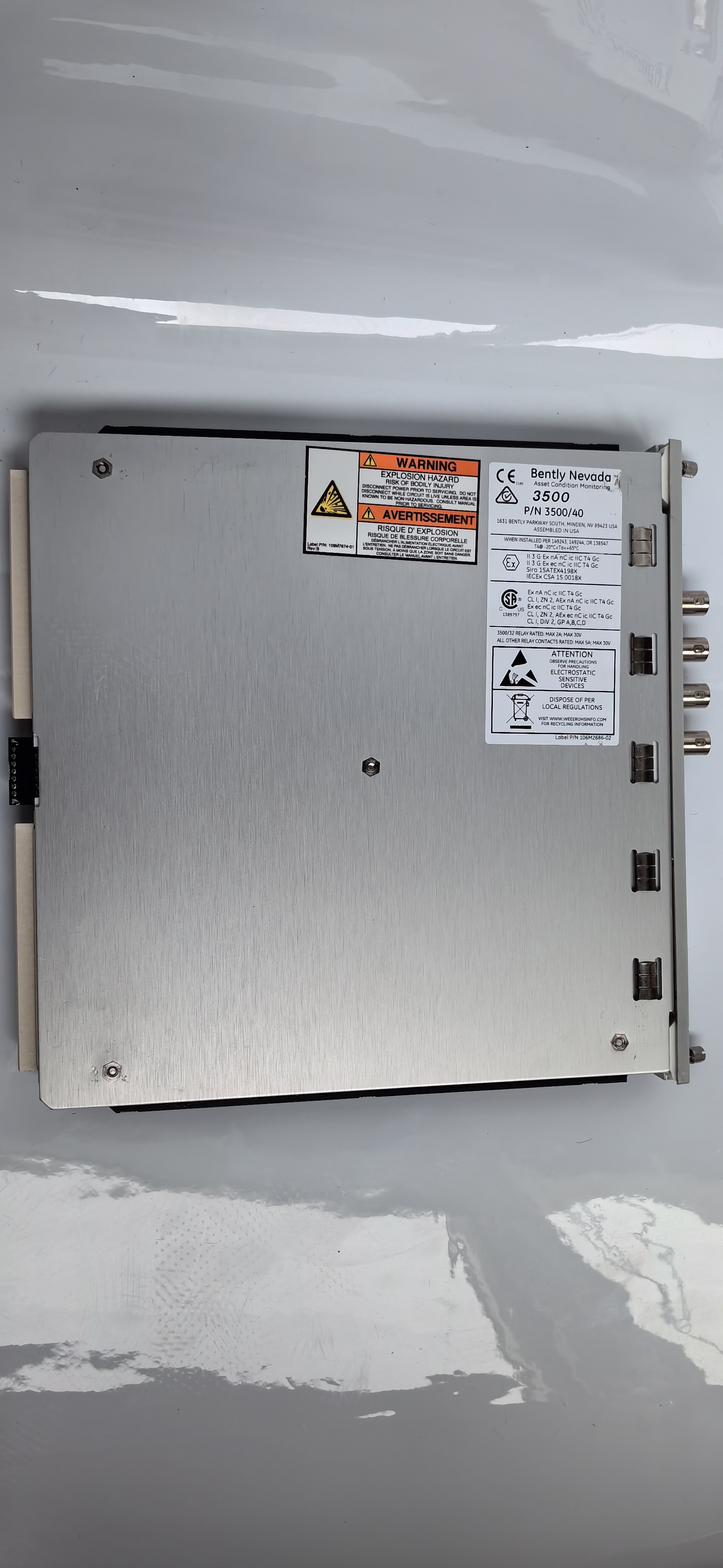

| 176449-01 | 3500/40M Proximitor Monitor |

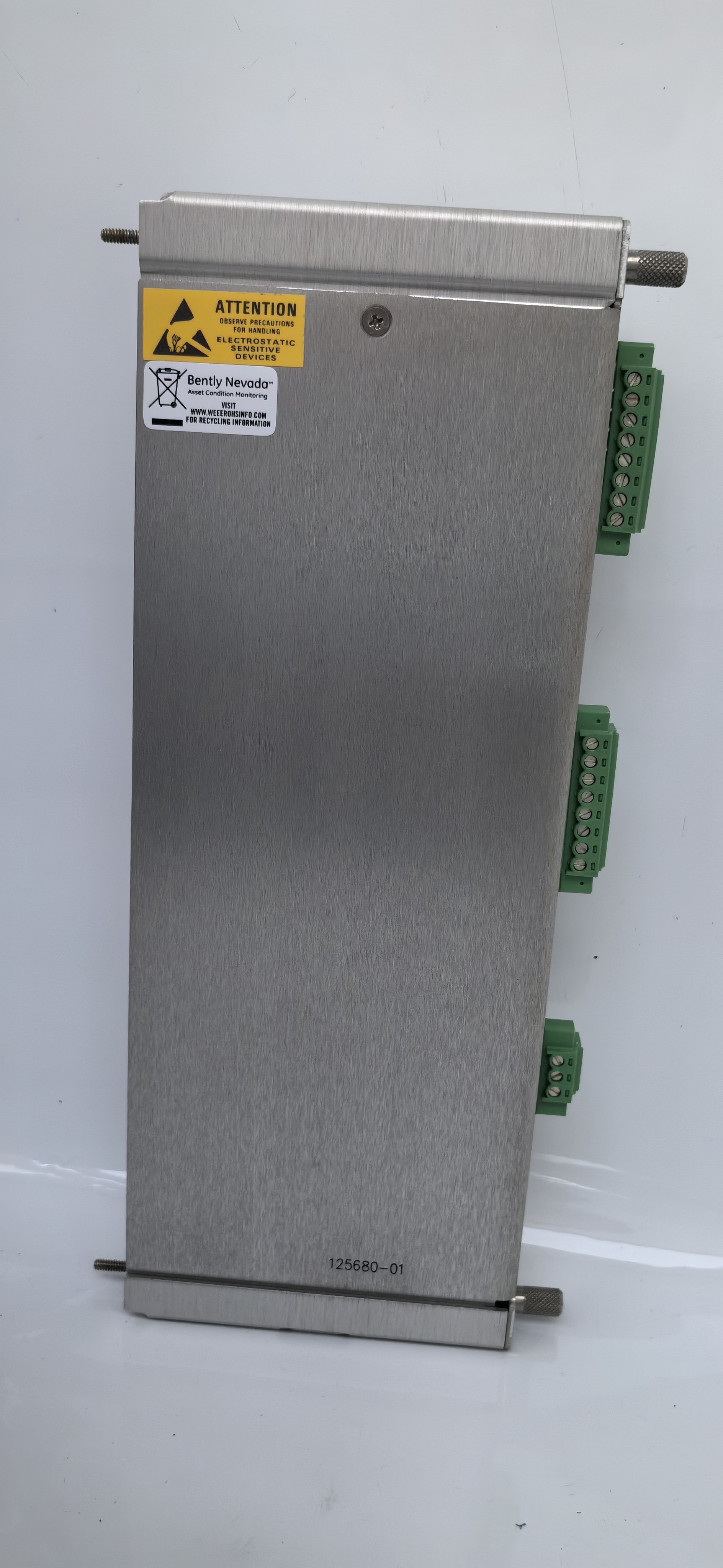

| 125680-01 | Proximitor I/O Module with Internal Terminations |

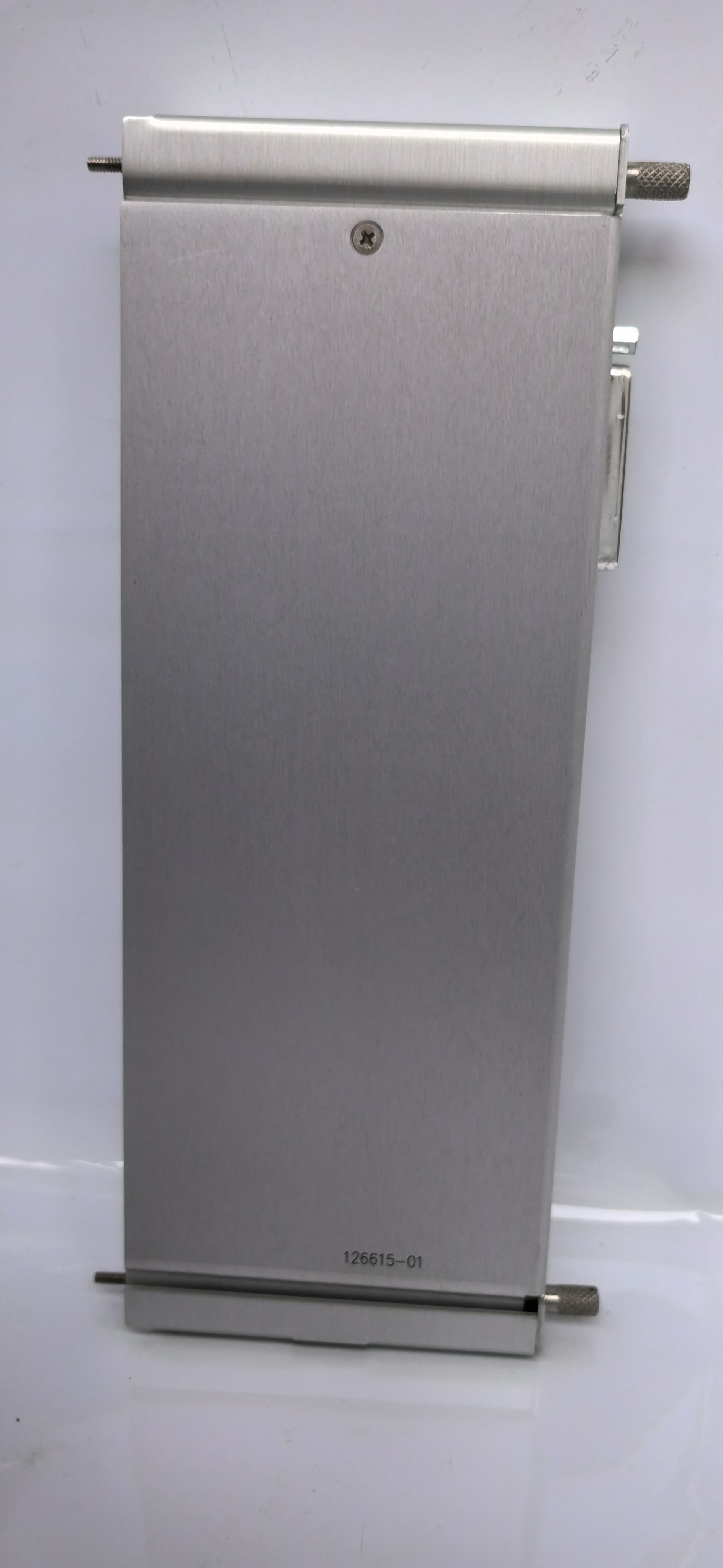

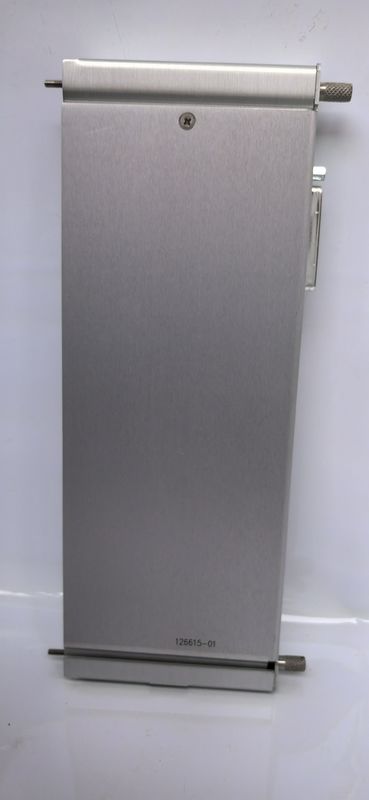

| 126615-01 | Proximiotr I/O Module with Extrnal Terminations |
| 135489-04 | Proximitor I/O Module with Internal Barriers and Internal Terminations |
| 149716-01 | TMR Proximitor I/O Module with External Terminations |
| 143488 | 3500/40M Monitor User Guide |
| 00580434 | Internal I/O Module connector header, Euro style, 8-pin |
| 00502133 | Internal I/O Module connector header, Euro style, 12-pin |
| 166M4363 | Connector header, push-in-spring type (alternative for PN 00580441) |
| 166M2389 | Connector header, push-in-spring type (alternative for PN 00580434) |
