160mA 24V Siemens Simatic S7 PLC Analog Input Module SM3366

Product Description

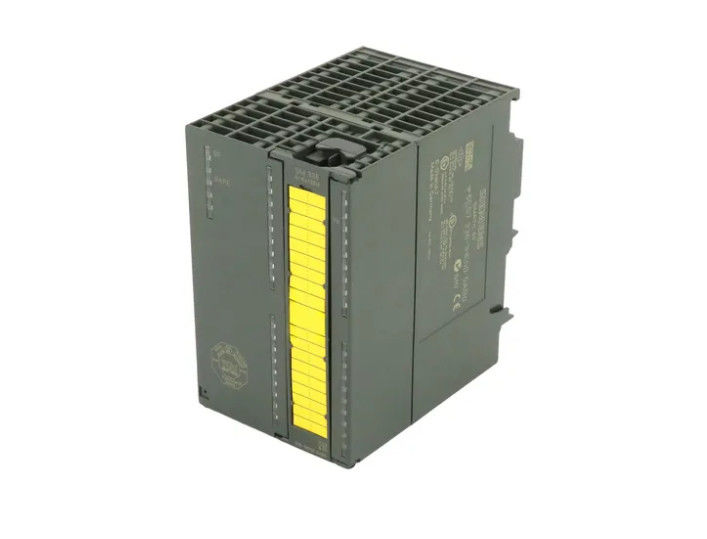

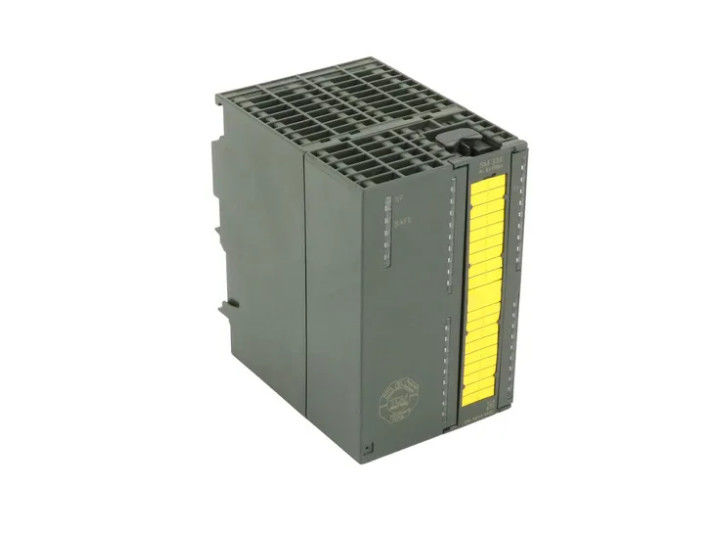

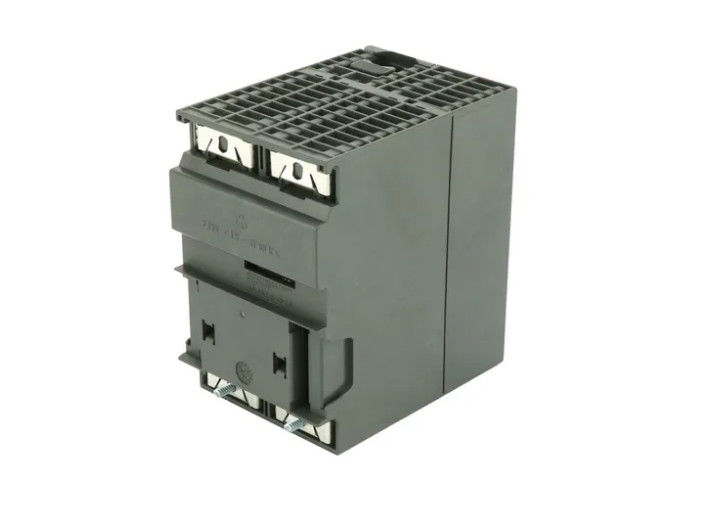

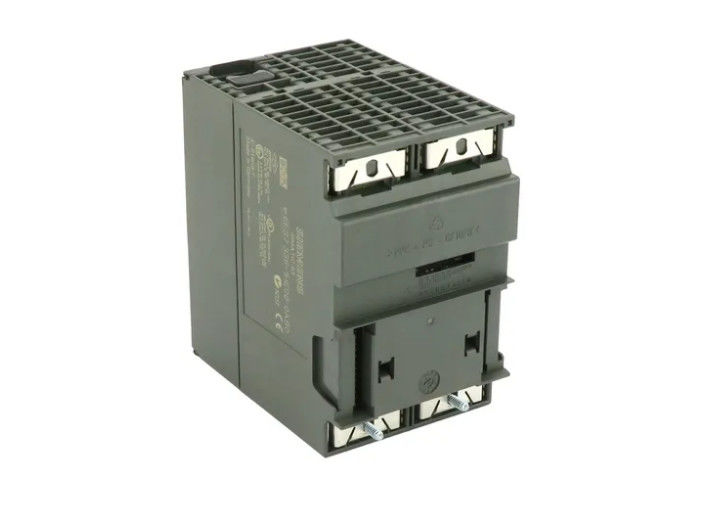

Siemens Simatic S7 PLC - Analog input SM 336 6  6ES7336-1HE00-0AB0

***Spare part*** SIMATIC S7, Analog input SM 336, 6 AI; 14 bit; 40-pole, fail-safe analog inputs for SIMATIC S7F systems with diagnostic alarm

Supply voltage

Rated value (DC) 24 V

Reverse polarity protection Yes

Load voltage L+

● Rated value (DC) 24 V

● Reverse polarity protection Yes

Input current

From power supply L+, typ. 160 mA

from backplane bus 5 V DC, max. 90 mA

Power loss

Power loss, typ. 4.25 W

Analog inputs

Number of analog inputs 6

● For voltage measurement 4

permissible input voltage for voltage input (destruction limit), max. 30 V

permissible input current for current input (destruction limit), max. 40 mA

Input ranges

● Voltage Yes

● Current Yes

Input ranges (rated values), voltages

● 0 to +10 V Yes

— Input resistance (0 to 10 V) 59 kΩ

Input ranges (rated values), currents

● 0 to 20 mA Yes

— Input resistance (0 to 20 mA) 107 Ω

● 4 mA to 20 mA Yes

— Input resistance (4 mA to 20 mA) 107 Ω

Cable length

● shielded, max. 200 m
