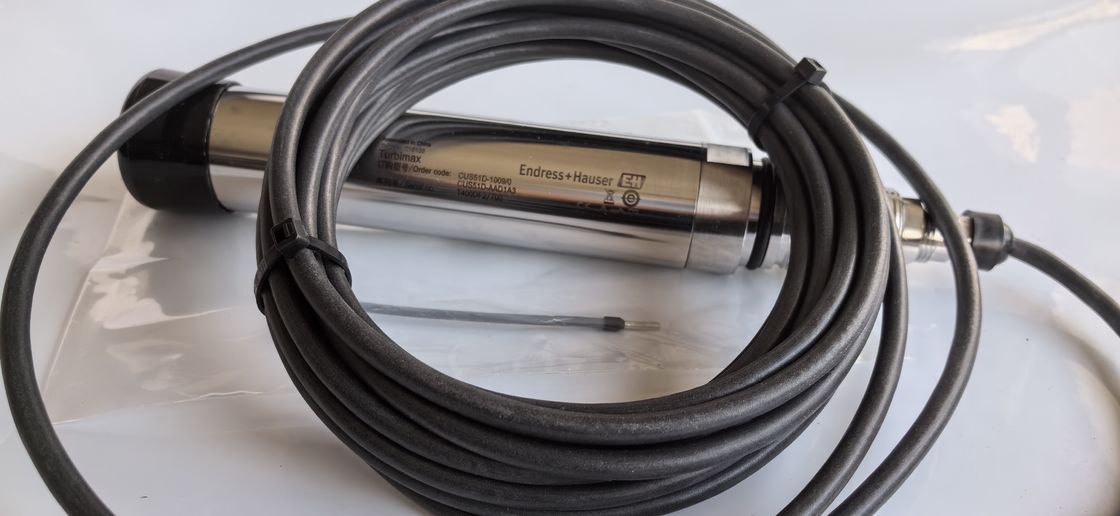

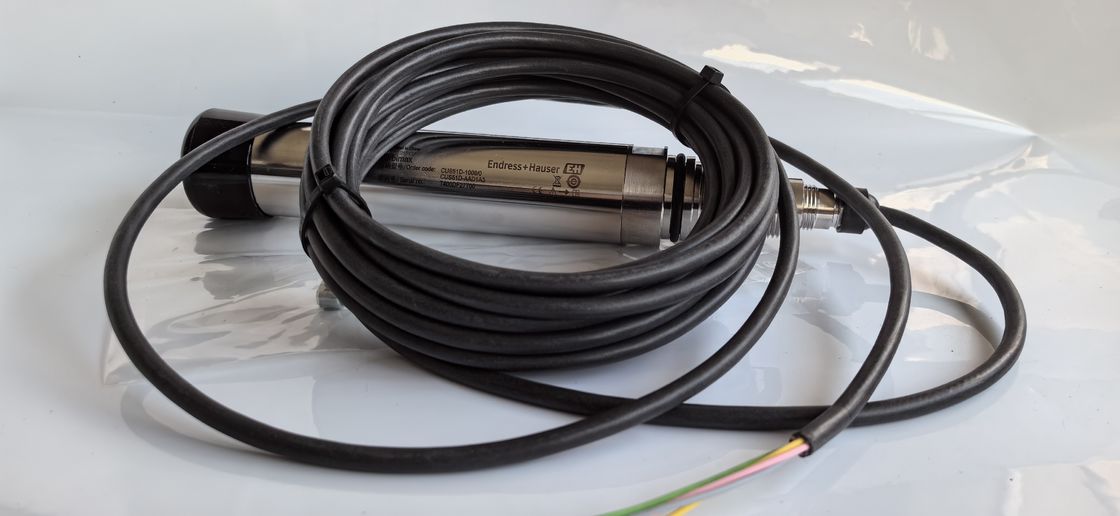

Endress Hauser flow meter Dissolved oxygen sensor Oxymax COS41-4F

Basic Information

Place of Origin:	Germany
Brand Name:	Endress+Hauser
Certification:	CSA Gen. Purpose.
Model Number:	COS41-4F

Minimum Order Quantity:	1 piece
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	on request
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now

Material:

Sensor Body : POMMembrane Cap : POM

Dimension:

Diameter : 40mm (1.56inch)Length : 220mm (8.85inch)

Measuring Principle:

Amperometric Oxygen Measurement

Application:

Aeration Tank, River Monitoring, Water Treatment, Fish Farming.

Characteristic:

Amperometric 2-electrode System To Measure Dissolved Oxygen.

Design:

- Extreme Stable Membrane- Analog Communication

Process Temperature:

Max. 50°C (122°F)

Temperature Sensor:

Integrated NTC-sensor

Highlight:

endress hauser flow meter Oxymax

Dissolved oxygen sensor COS41-4F

Dissolved oxygen sensor

Endress Hauser Dissolved oxygen sensor Oxymax COS41-4F

SPECIFICATIONS

Measuring principle:Amperometric oxygen measurement
Application:Aeration tank, river monitoring, water treatment, fish farming.
Characteristic:Amperometric 2-electrode system to measure dissolved oxygen.
Measurement range:0,05 - 20mg/l
Measuring principle:Closed (membrane covered) amperometric 2-electrode sensor.
Design:- Extreme stable membrane- Analog communication
Material:ensor body : POMMembrane cap : POM
Dimension:Diameter : 40mm；(1.56inch)Length : 220mm(8.85inch)
Process temperature:max. 50°C(122°F)
Process pressure:max. 10bar(145psi)
Temperature sensor:Integrated NTC-sensor
Connection:Process connection : G1"Cable : Fixed cable or TOP68 connector

Field of application

Oxymax COS41 is a reliable and accurate oxygen sensor for all kinds of water & wastewater applications. Designed for reduced maintenance and a long operating life, the sensor offers real value for money.

Oxymax COS41 measures the dissolved oxygen concentration in:

Wastewater treatment plants:
- O2 control in the aeration basin
- Process water treatment and monitoring
Water works:
- Status monitoring of drinking water (oxygen enrichment, corrosion protection, etc.)
- Water quality monitoring in rivers, lakes or seas
Utilities of all industries:
- O2 control in the biological treatment
- Process water treatment and monitoring
Fish farming:
- O2 control for optimum growth conditions

Benefits

High measurement accuracy
Long maintenance intervals
Minimum calibration effort thanks to simple air calibration
