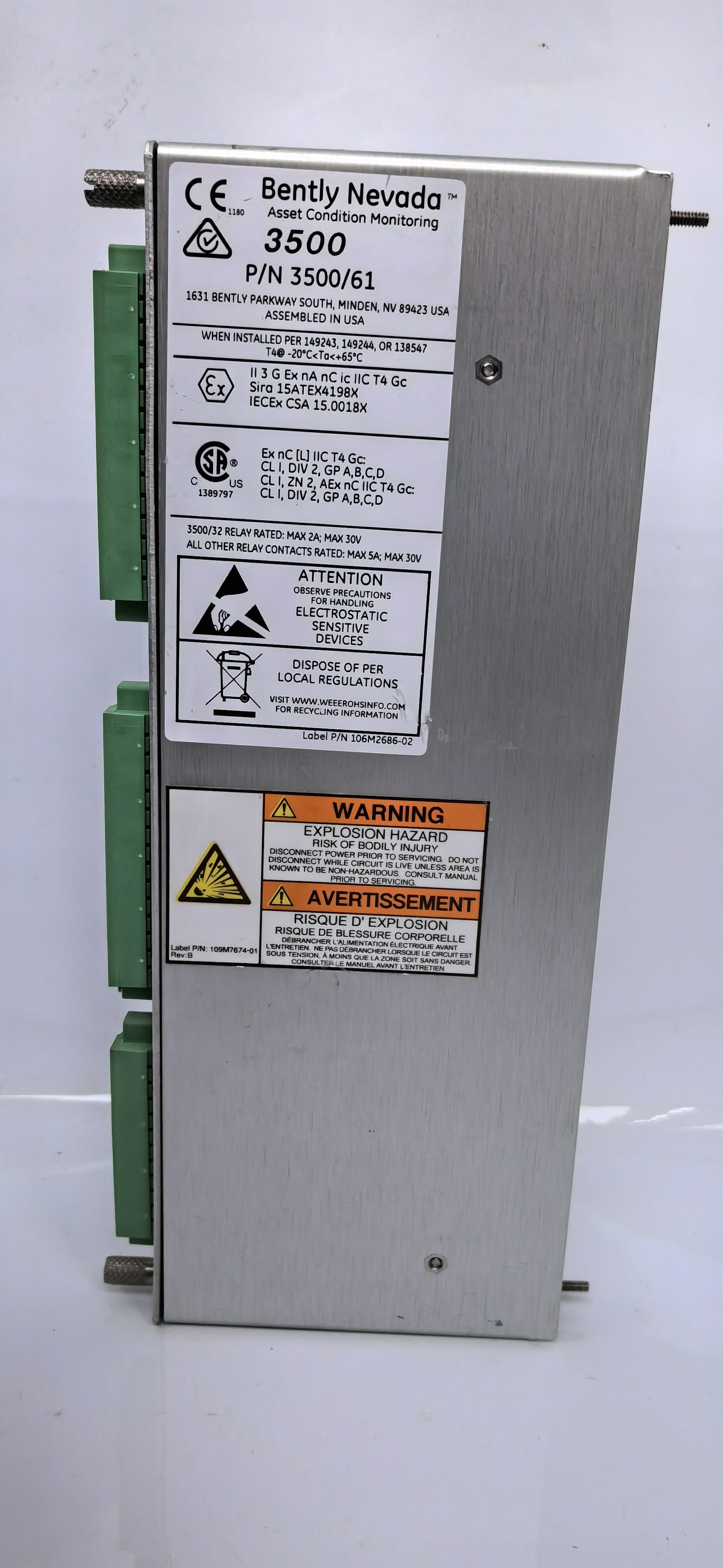

163179-02 Bently Nevada 3500 System 3500/61 Temperature Modules 133819-02
| Place of Origin | USA |
|---|---|
| Brand Name | Bently Nevada |
| Certification | CE |
| Model Number | 3500/61-01-00 163179-02 133819-02 |
| Document | 3500-60 and 3500-61 Tempera...40.pdf |
| Minimum Order Quantity | 1pc |
| Price | negotiable |
| Packaging Details | standard carton packing |
| Delivery Time | 12-16weeks |
| Payment Terms | T/T |
| Supply Ability | 100pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Signal | Accepts From 1 To 6 RTD Or TC Transducer Signals. | Input Impedance | 10 MΩ For Each Lead Input. |
|---|---|---|---|
| Power Consumption | Nominal Consumption Of 9 Watts. | Voltage Compliance | 0 To +12 Vdc Range Across Load. Load Resistance Is 0 To 600 Ω. |
| Monitor Module | 1 Full-height Front Slot | I/O Modules | 1 Full-height Rear Slot |
| Highlight | 163179-02 Bently Nevada 3500 System,Bently Nevada 3500 System 133819-02,163179-02 |
||
Product Description

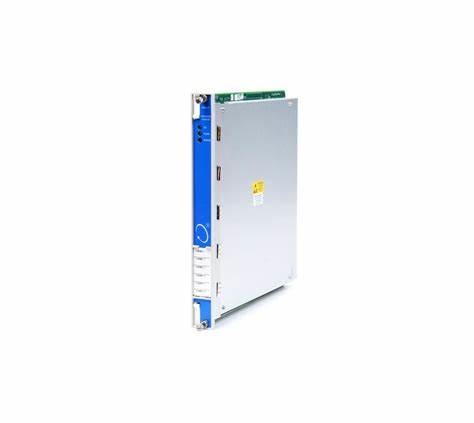

Bently Nevada 3500/61 Temperature Modules 3500/61-01-00 163179-02 133819-02
Description
The 3500/61 modules provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The modules condition these inputs and compare them against user-programmable alarm setpoints. The 3500/60 and 3500/61 provide identical functionality except that the 3500/61 provides recorder outputs for each of its six channels while the 3500/60 does not.
The user programs the modules to perform either RTD or TC temperature measurements using the 3500 Rack Configuration Software. Different I/O modules are available in RTD/TC non-isolated or TC isolated versions. The user can configure the RTD/TC non-isolated version to accept either TC or RTD, or a mixture of TC and RTD inputs. The TC isolated version provides 250 Vdc of channel-to-channel isolation to protect against external interference.
Ordering Information
Recorder Outputs 3500/61-AA-BB
|
A:I/O Module Type |
|
|
01 |
RTD/TC Non-isolated I/O Module Internal Terminations |
|
02 |
RTD/TC Non-isolated I/O Module External Terminations |
|
03 |
TC Isolated I/O Module Internal Terminations |
|
04 |
TC Isolated I/O Module External Terminations |
|
05 |
RTD/TC Non-isolated I/O Module with Internal Barriers |
|
B:Agency Approval Option |
|
|
00 |
None |
|
01 |
CSA/NRTL/C (Class 1, Div 2) |
|
02 |
ATEX/ IECEx/ CSA (Class 1, Zone 2) |
3500/61 -Specific
|
163179-02 |
3500/61 Temperature Monitor (with recorders) |
|
133819-02 |

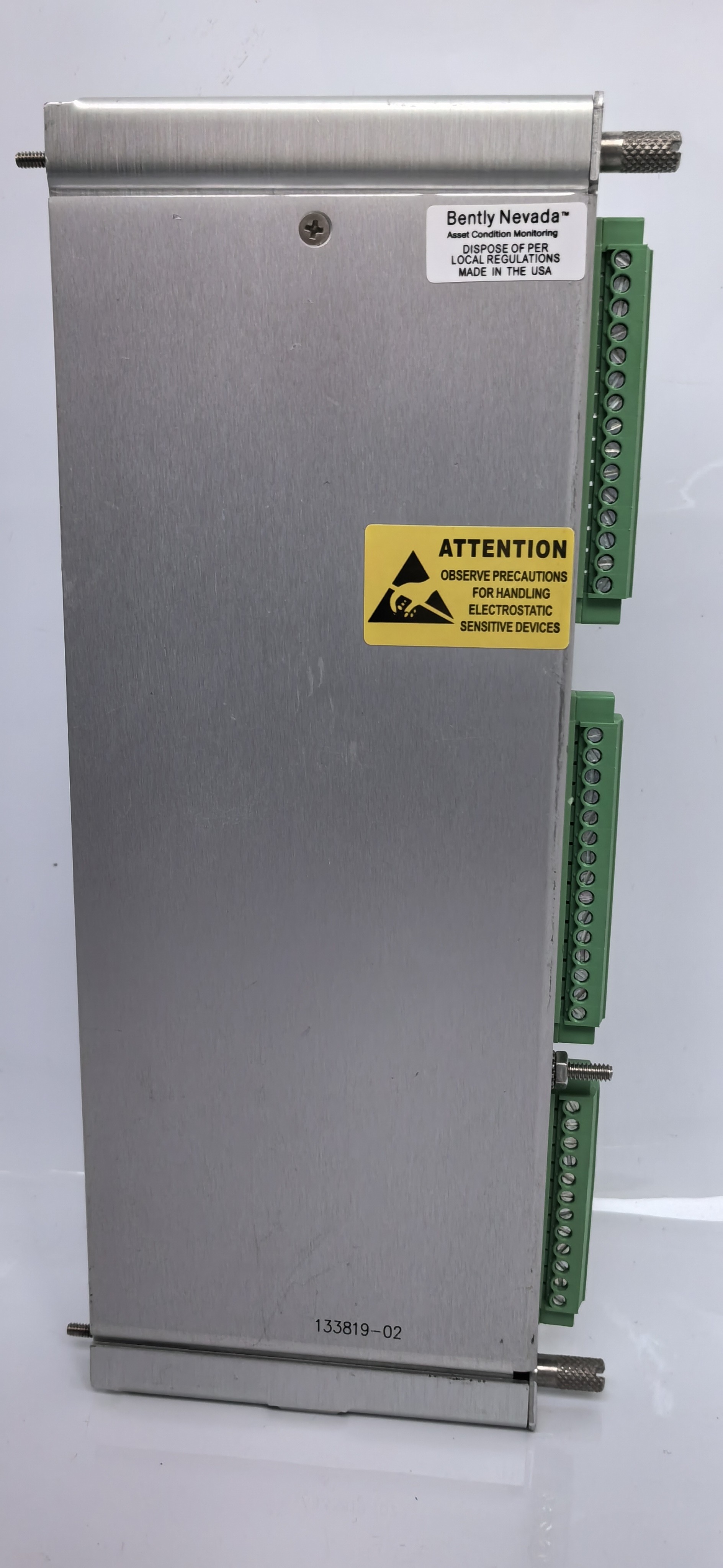

3500/61 RTD/TC Non-Isolated I/O Module Internal Terminations. |
|
133827-02 |
3500/61 RTD/TC Non-Isolated I/O Module External Terminations. |
|
133835-02 |
3500/61 TC Isolated I/O Module Internal Terminations. |
|
133843-02 |
3500/61 TC Isolated I/O Module External Terminations. |
|
133892-01 |
3500/61 Recorder Output External Termination Block (Terminal Strip connectors). |
|
133900-01 |
3500/61 Recorder Output External Termination Block (Euro Style connectors). |
|
136711-02 |
3500/61 RTD/TC I/O Module with Internal Barriers and Internal Terminations. (Not-Isolated) |
Spares
| 133908-01 | RTD/TC Non-Isolated External Termination Block (Terminal Strip connectors). |
| 133916-01 | RTD/TC Non-Isolated External Termination Block (Euro Style connectors). |
| 133924-01 | TC Isolated External Termination Block (Terminal Strip connectors). |
| 133932-01 | TC Isolated External Termination Block (Euro Style connectors). |
| 00580442 | Connector Header, Internal Termination, 9-position, Green. |
| 00580443 | Connector Header, Internal Termination, 12-position, Green |
| 00502133 | Connector Header, Internal Termination, 12-position, Blue. |
| 00580444 | Connector Header, Internal Termination, 15-position, Green. |
| 134542 | 3500/60 & 3500/61 User Guide |
