4.5Hz Bently Nevada Vibration Sensor Velomitor XA Piezo-Velocity Sensor 330525-CN 330525-00
| Place of Origin | USA |
|---|---|
| Brand Name | Bently Nevada |
| Certification | CE |
| Model Number | 330525-CN/330525-00 |
| Document | D-Agent_1-_work-310-s-Uploa...00.pdf |
| Minimum Order Quantity | 1pc |

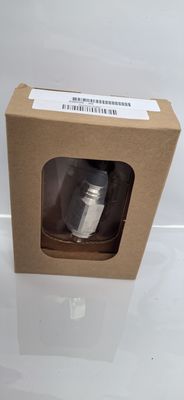

| Packaging Details | standard carton packing |
| Delivery Time | 12-16weeks |
| Payment Terms | T/T |
| Supply Ability | 100pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Sensitivity | Sensitivity | Frequency Response | 4.5 To 2,000 Hz (270 To 120,000 Cpm) ±3.0 DB, 6.0 To 1,000 Hz (360 To 60,000 Cpm) ±0.9 DB. |
|---|---|---|---|
| Weight | 156 G (5.5 Oz), Typical | Diameter | 28 Mm (1.1 In) |
| Height | 73.1 Mm (2.88 In) | Case Material | 316L Stainless Steel |
| Connector | 2-pin Mil-C-26482 Hermeticallysealed, 316L Stainless Steel Shell. | Mounting Torque | 45 N-m (33 Ft-lb) Maximum |
| Highlight | 4.5Hz bently nevada vibration sensor,bently nevada vibration sensor 330525-CN,330525-00 |
||
Product Description

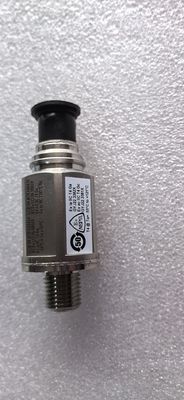

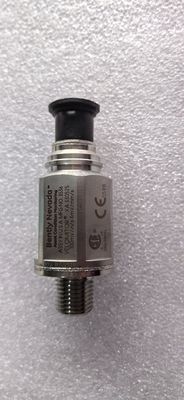

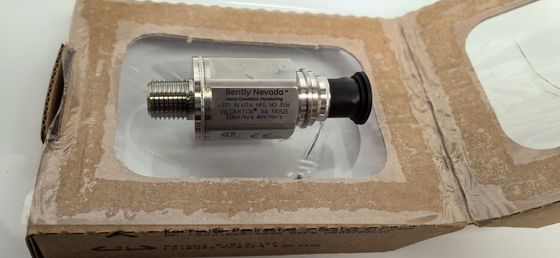

Bently Nevada 330525 Velomitor XA Piezo-velocity Sensor 330525-CN
Description
The Velomitor XA (eXtended Application) Sensor is a ruggedized version of Bently Nevada's 330500 Velomitor Sensor. Its 316L stainless steel case and unique, weatherproof connector and cable assembly permit mounting without a housing. The Velomitor XA Sensor cable assembly is suitable for use in moist environments, and the Velomitor XA Sensor design meets the requirements of IP-65 and NEMA 4X dust ratings when properly installed with a mating extension cable.
Ordering Information
|
A: Agency Approval Option |
|
|
00 |
None Required |
|
01 |
CSA/NRTL/C |
|
02 |
SIRA/CENELEC |
106765-AA Interconnect Cable
A: Length (in meters)
|
Minimum length |
1 meter(3.3 feet) |
|
Maximum length |
25 meters (82 feet) |
|
Order in increments of 3 meters. |
|
Terminal Housing
106769-AA
|
A: Conduit Fitting Option |
|
|
00 |
No fittings supplied |
|
01 |
One ¾ NPT fitting |
|
02 |
Two ¾ NPT fittings |
Accessories
|
100076 |
330500/330525 Velomitor Sensor and Velomitor XA SensorUser Guide |
|
02173007 |
Bulk cable; two-conductor twisted, shielded. 22 AWG cable without connectors or terminal lugs. Specify length in feet. |
|
103537-01 |
Terminal Mounting Block. Provides simple field wiring connection and can be mounted inside any standard Proximitor Sensor housing. One terminal mounting block is needed for each Velomitor XA Sensor connection. |
|
03839144 |
Splash-resistant boot cover for interconnect cable assembly. The boot is made from fluorosilicone elastomer. Boot color is blue. |
|
03839142 |
Bottom clamp used to secure the boot to the Velomitor XA Sensor case. |
|
03839143 |
Top clamp used to secure the boot to the interconnect cable assembly. |
