TK-3E Bently Nevada Vibration Monitoring System TK3 Proximity System Test Kit 177313-01-01-00
| Place of Origin | USA |
|---|---|
| Brand Name | Bently Nevada |
| Certification | CE |
| Model Number | TK-3E 177313-01-01-00 |
| Document | TK-3E.pdf |
| Minimum Order Quantity | 1pc |
| Price | negotiable |
| Packaging Details | standard carton packing |
| Delivery Time | 12-16weeks |
| Payment Terms | T/T |
| Supply Ability | 100pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Electric | 95-125 Vac, 50/60 Hz, 1A Minimum 190-250 Vac, 50/60 Hz, 1A Minimum | Air | 90 Psi (6.2 Bar) Maximum |
|---|---|---|---|
| Vibration Amplitude Range | 50 μm To 254 μm (2 To 10 Mils) Peak-to-peak. | Spindle Micrometer Range | 0 – 25.4 Mm (0 – 1000 Mils). |
| Physical Size | 299 Mm*248mm*195 Mm | Weight | 5.22 Kg |
| Operational Temperature Range | 0 °C To 50 °C | Storage Temperature Range | -18 °C To 65 °C |
| Highlight | TK-3E Bently Nevada Vibration Monitoring System,90psi Bently Nevada Vibration Monitoring System,125Vac TK3 Proximity System Test Kit |
||
Product Description

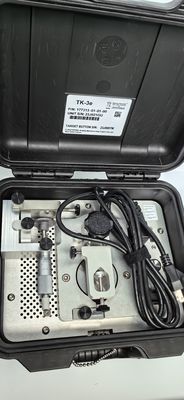

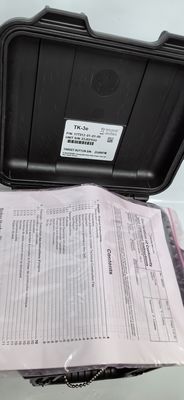

TK3 Proximity System Test Kit TK-3E 177313-01-01-00
Description
The TK-3 Proximity System Test Kit simulates shaft vibration and position for calibrating Bently Nevada monitors. It verifies the operating condition of the monitor readouts as well as the condition of the proximity transducer system. A properly calibrated system ensures that the transducer inputs and the resulting monitor readings are accurate.
The TK-3 uses a removable spindle micrometer assembly to check the transducer system and position monitor calibration. This assembly features a universal probe mount that will accommodate probe diameters from 5 mm to 19 mm (0.197 in to 0.75 in). The mount holds the probe while the user moves the target toward or away from the probe tip in calibrated increments and records the output from the Proximitor Sensor using a voltmeter. The spindle micrometer assembly also features a convenient magnetic base for ease of use in the field.
Ordering Information
Electric Driven TK-3e
177313-AA-BB-CC
|
A: Scale Units |
|
|
01 |
English |
|
02 |
Metric |
|
B: Power Cord Type |
|
|
01 |
American |
|
02 |
European |
|
03 |
Brazilian |
|
C: Agency Approvals |
|
|
00 |
None |
Air Driven TK-3g
177314-AA-BB
|
A: Scale Units |
|
|
01 |
English |
|
02 |
Metric |
|
B: Agency Approvals |
|
|
00 |
None |
Related Part Number:
|
16710-30 |
177230-01-01-CN |
991-25-50-01-00 |
|
21000-28-05-00-024-03-02 |
177313-02-02-00 |
330106-05-30-05-02-00 |
|
190501-00-00-CN |
190501-00-00-CN |
330106-05-30-05-02-CN |
|
200200-05-05-CN |
200151-060-03-00 |
330106-05-30-10-02-00 |
|
330101-00-25-05-01-CN |
200152-150-02-10 |
330106-05-30-10-02-CN |
|
330103-00-05-10-01-00 |
200200-05-05-CN |
330130-080-00-00 |
|
330105-02-12-10-02-00 |
330101-00-16-10-02-CN |
330130-040-00-00 |
|
330180-91-CN |
330101-00-25-05-01-CN |
330130-040-00-CN |
|
330190-085-00-00 |
330102-00-17-10-02-CN |
330130-080-01-00 |
|
330195-02-12-05-00 |
330102-02-12-10-02-00 |
330130-045-00-CN |
|
330400-01-CN |
330103-00-05-10-01-00 |
330130-045-01-00 |
|
330400-02-CN |
330103-00-08-05-02-CN |
330130-075-01-CN |
|
330901-00-90-10-02-CN |
330103-00-08-05-02-CN |
330130-085-00-CN |
|
990-04-70-01-00 |
330103-00-12-15-02-CN |
330180-51-00 |
|
990-05-50-01-00 |
330104-00-06-05-01-CN |
330902-02-12-05-02-CN |
|
990-05-70-02-00 |
330104-00-08-05-02-CN |
330907-05-30-10-02-00 |
|
330180-91-00 |
330930-040-00-00 |
330130-045-03-00 |
