50ohm Bently Vibration Monitoring System 330180-50-00 330180-50-CN 330180-51-00
| Place of Origin | USA |
|---|---|
| Brand Name | Bently Nevada |
| Certification | CE |
| Model Number | 330180-50-00 330180-50-CN 330180-51-00 33018-51-CN 330180-91-CN 330180-91-00 |
| Document | D-Agent_1-_work-388-s-Uploa...94.pdf |
| Minimum Order Quantity | 1pc |
| Price | negotiable |
| Packaging Details | standard carton packing |
| Delivery Time | 12-16weeks |
| Payment Terms | T/T |
| Supply Ability | 100pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Proximitor Sensor Input | Accepts One Non-contacting 3300-series 5 Mm, 3300 XL 8 Mm Proximity Probe And Extension Cable. | Power | Requires -17.5 Vdc To -26 Vdc When Installed With Nonincendive Circuit Connected Per Installation Drawing 140979 At 12 MA Maximum Consumption, -23 Vdc To -26 Vdc With Barriers. Operation At A More Positive Voltage Than -23.5 Vdc Can Result In Reduced Linea |
|---|---|---|---|
| Supply Sensitivity | Less Than 2 MV Change In Output Voltage Per Volt Change In Input Voltage. | Output Resistance | 50 Ω |
| Extension Cable Capacitance | 69.9 PF/m (21.3 PF/ft) Typical | Probe Tip Material | Polyphenylene Sulfide (PPS). |
| Probe Case Material | AISI 303 Or 304 Stainless Steel (SST). | Connector Material | Gold-plated Brass Or Goldplated Beryllium Copper. |
| Highlight | 50ohm bently vibration monitoring system,69.9pF/m bently vibration monitoring system,proximity transducer system AISI 303 |
||
Product Description

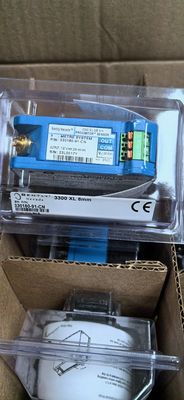

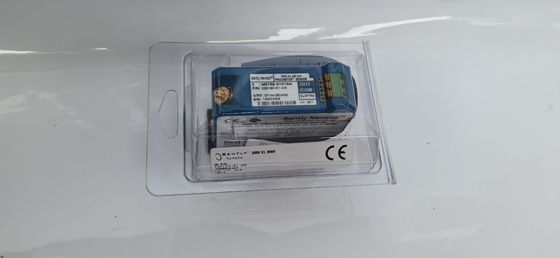

3300 XL 8 mm Proximity Transducer System
330180-50-00 330180-50-CN 330180-51-00 330180-51-CN 330180-91-CN 330180-91-00
Description
The 3300 XL 8 mm Proximity Transducer System consists of:
One 3300 XL 8 mm probe,
One 3300 XL extension cable1 , and
One 3300 XL Proximitor Sensor2.
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements3.
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable4 with other nonXL 3300 series 5 mm and 8 mm transducer system components5. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space6,7.
Ordering Information

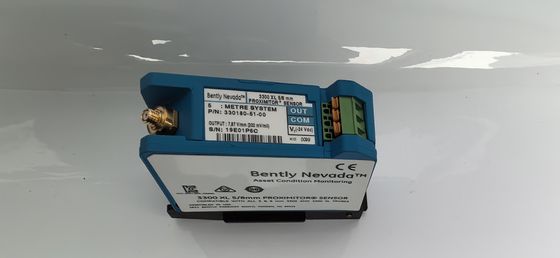

3300 XL Proximitor Sensor
330180-AA-BB
|
A: Total Length and Mounting Option |
|
|
10 |
1.0 meter (3.3 feet) system length, panel mount |
|
11 |
1.0 meter (3.3 feet) system length, DIN mount |
|
12 |
1.0 meter (3.3 feet) system length, no mounting hardware |
|
50 |
5.0 meters (16.4 feet) system length, panel mount |
|
51 |
5.0 meters (16.4 feet) system length, DIN mount |
|
52 |
5.0 meters (16.4 feet) system length, no mounting hardware |
|
90 |
9.0 meters (29.5 feet) system length, panel mount |
|
91 |
9.0 meters (29.5 feet) system length, DIN mount |
|
92 |
9.0 meters (29.5 feet) system length, no mounting hardware |
|
B: Agency Approval Option |
|
|
00 |
Not required |
|
05 |
CSA, ATEX, IECEx Approvals |
