1756-BA2 AB Modules ControlLogix 4.5 Watts L6X Ser B ONLY Battery Assy

  • 1756-BA2 AB Modules ControlLogix 4.5 Watts L6X Ser B ONLY Battery Assy
  • 1756-BA2 AB Modules ControlLogix 4.5 Watts L6X Ser B ONLY Battery Assy
  • 1756-BA2 AB Modules ControlLogix 4.5 Watts L6X Ser B ONLY Battery Assy
Place of Origin USA
Brand Name AB
Certification CE
Model Number 1756-BA2
Minimum Order Quantity 1pc
Price negotiable
Packaging Details standard carton packing
Delivery Time on request
Payment Terms T/T
Supply Ability 100pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Series ControlLogix Part Type Lithium Battery
Slots 7 Power Dissipation 4.5 Watts
Mounting Horizontal Enclosure Open
Backplane Current (5 Volts DC) 10 Amps Backplane Current (24 Volts DC) 2.8 Amps
Highlight

Horizontal mounting AB Modules

,

AB Modules ControlLogix 4.5 Watts

,

1756-BA2
Leave a Message
Product Description

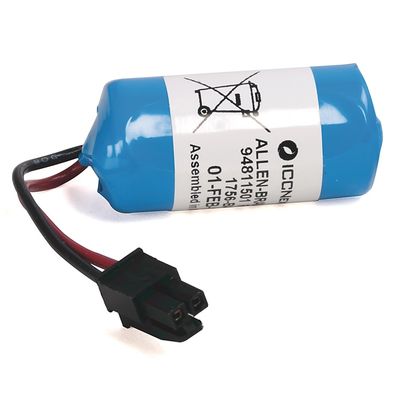

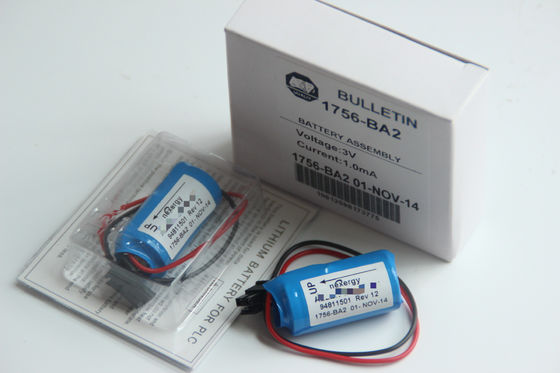

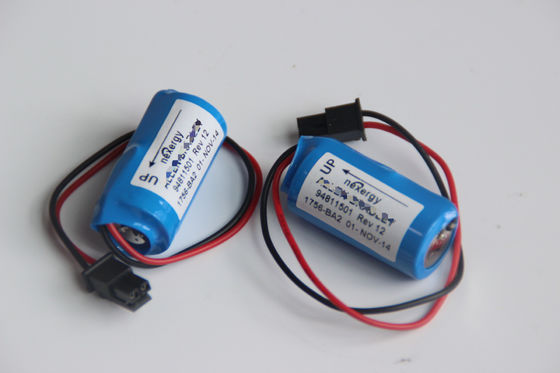

AB ControlLogix L6X Ser B ONLY Battery Assy 1756-BA2

Description

The 1756-BA2 ControlLogix Lithium Metal Battery Assembly by AB is a battery assembly for the AB 1756-L6x Controller Series B which is used to back up the controller’s stored information in the non-volatile memory and it keeps the controller’s internal clock working when the controller is powered down. The battery assembly consists of a Duracell Lithium Battery Cell which is installed on the chassis and the battery functions and lifespan depend on the environmental conditions around the chassis and the frequency of use. The 1756-BA2 has an electrical rating of 3V DC supply voltage with a maximum battery capacity of 1200mAh and it employs a (Wire Leads to Connector) Termination type. It has a minimum lifespan of 3 years when used at 0 to 35 °C (0 to 95 °F), but will gradually de-rate at any temperature above this range. The 1756-BA2 is stored at a recommended temperature of 25 °C (77 °F) at 40-60% non-condensing relative humidity, but can be stored at a range of range between -45° and 85° C around when the storage time duration is less than 30 days, and the storage temperature must not exceed 85 0C. The 1756-BA2 has dimensions of 0.68in x 1.38in and weighs approximately 36g.
