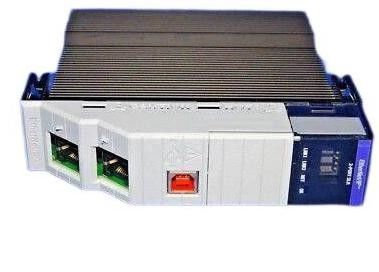

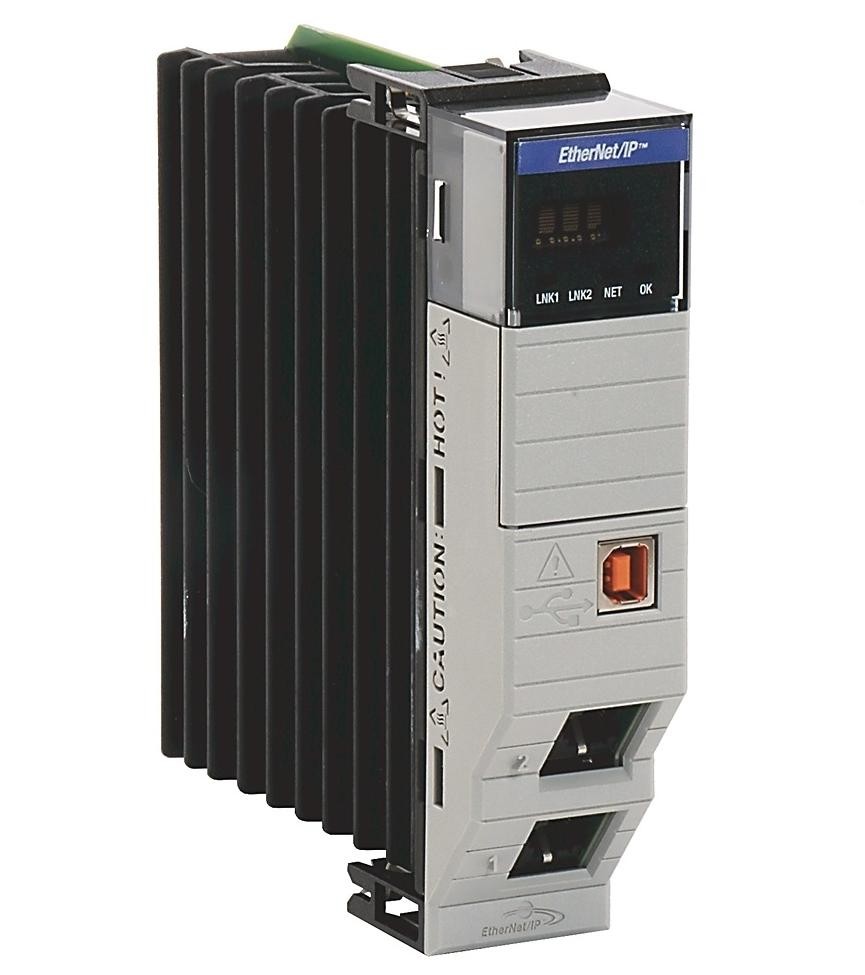

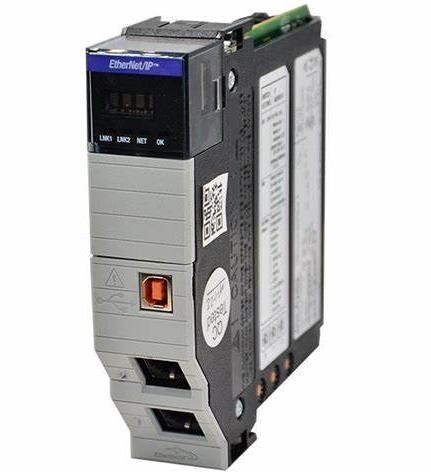

AB CLX ENet/IP 100M DLR 1756-EN2TR

The AB 1756-EN2TR is a part of the ControlLogix Communication Module series. It is an Ethernet/IP (Ethernet Industrial Protocol) dual port interface communication module. It supports general messaging, real-time I/O messaging, and information exchange for applications like Real-Time Control, Time Synchronization, and Motion. The 1756-EN2TR also meets the CIP safety standard by allowing simultaneous transfer of safety and control data and diagnostics information. It uses advanced communication chips and physical media.

The 1756-EN2TR Module has 10 - 100 Mbps Ethernet/IP communication rates and uses dual copper. It supports 256 Logix and 128 TCP/IP communication connections. It can support a maximum of 8 axes for integrated motion on the Ethernet/IP Network and draws 1 A current at 5.1V DC. It has a maximum power dissipation of 5.1 W and thermal dissipation of 17.4 BTU/hr. It can be installed in any slot in the ControlLogix Chassis. For wiring, it uses unshielded RJ45, category 5, twisted-pair cable connectors to interface with the controller. To operate an Ethernet/IP network, parameters such as IP addresses, Subnet masks, Gateway, etc. must be defined.

The 1756-EN2TR bridge has various functions like providing support for messaging, distributed I/O, and tags. It encapsulates messages within standard TCP/IP protocol. ControlNet and DeviceNet network protocols allow it to share a common application layer. The 1756-EN2TR does not require any scheduling or routing table to store information. Other features include explicit protected mode, Electronic keying, Device Level Ring Network, and Parallel Redundancy Protocol Network support.
Related Part Number:

FAQ  for 1756-EN2TR
What is this module’s power dissipation?
The 1756-EN2TR has a power dissipation of around 5.1 Watts.
What are this module’s communication options?
The 1756-EN2TR uses Ethernet/IP for communication.
