Model

product brand name

SENTRON

product designation

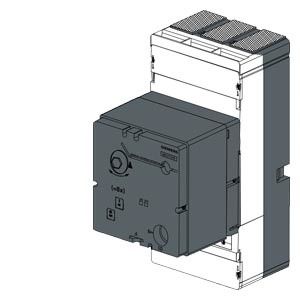

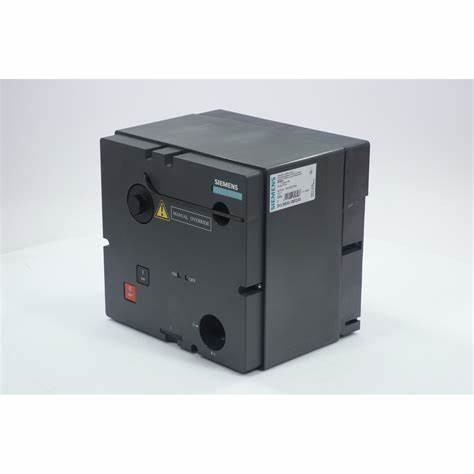

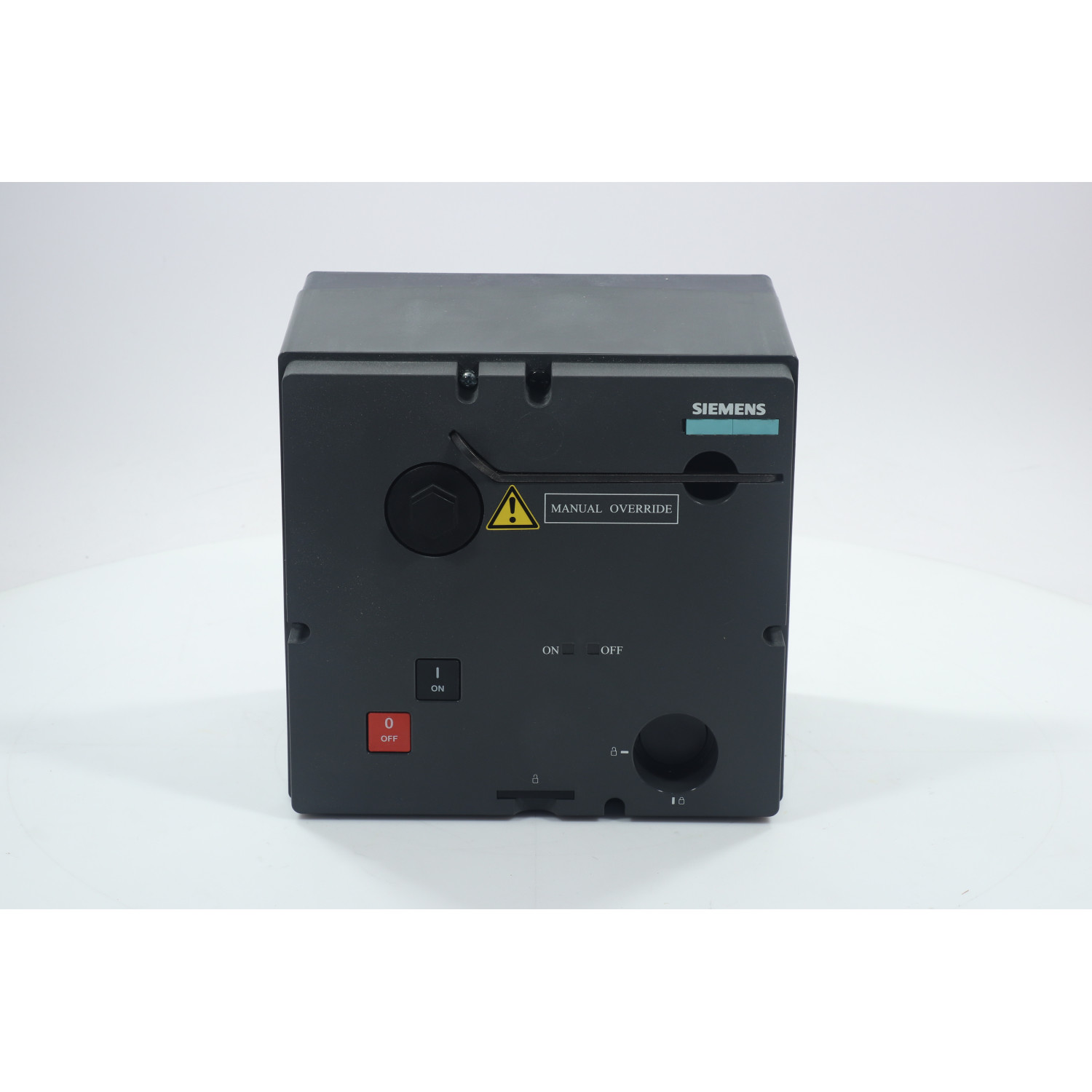

Motorized operating mechanism

design of the product

Accessories for VL1250; VL1600

type of the driving mechanism

motorized operating mechanism

General technical data

operating frequency maximum

30 1/h

Voltage

fuse protection type for external auxiliary power supply required

NEOZED fuse (gL/gG): 2 A / miniature circuit breaker, C char.: 2 A

operating range factor control supply voltage rated value

● at DC initial value

0.85

● at DC full-scale value

1.1

● at AC at 50 Hz initial value

0.85

● at AC at 50 Hz full-scale value

1.1

● at AC at 60 Hz initial value

0.85

● at AC at 60 Hz full-scale value

1.1

Protection class

protection class IP

IP30

Control current

operating apparent power

250 VA

control supply voltage

● at DC rated value minimum

250 V

● at DC rated value maximum

220 V

● at AC at 50 Hz rated value minimum

220 V

● at AC at 50 Hz rated value maximum

250 V

● at AC at 60 Hz rated value minimum

220 V

● at AC at 60 Hz rated value maximum

250 V

pulse duration minimum

50 ms

Connections

stripped length

10 mm

connectable conductor cross-section solid

● minimum

0.75 mm²

● maximum

1.5 mm²

connectable conductor cross-section stranded

● minimum

0.75 mm²

● maximum

1.5 mm²

connectable conductor cross-section finely stranded with core end processing

● minimum

0.75 mm²

● maximum

1.5 mm²

tightening torque

● minimum

0.6 N·m

● maximum

0.8 N·m

Mechanical Design

height

230 mm

width

215 mm

depth

180 mm

net weight

7 865 g

Environmental conditions

ambient temperature during operation

● minimum

-25 °C

● maximum

70 °C

ambient temperature during storage

● minimum

-40 °C

● maximum

80 °C

Certificates

reference code according to IEC 81346-2

M
