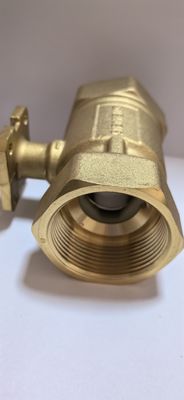

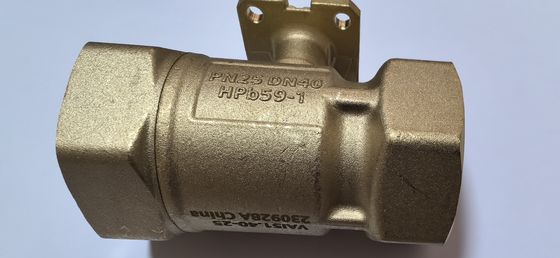

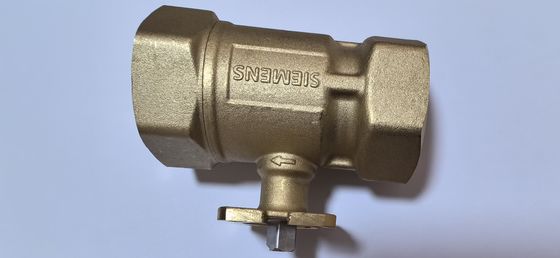

Siemens Ball Valve Siemens Building Automation 2 Port PN25 DN40 Kvs25 VAI51.40-25

  • Siemens Ball Valve Siemens Building Automation 2 Port PN25 DN40 Kvs25 VAI51.40-25
  • Siemens Ball Valve Siemens Building Automation 2 Port PN25 DN40 Kvs25 VAI51.40-25
  • Siemens Ball Valve Siemens Building Automation 2 Port PN25 DN40 Kvs25 VAI51.40-25
Place of Origin China
Brand Name SIEMENS
Certification ROHS
Model Number VAI51.40-25
Minimum Order Quantity 1pc
Price USD/pc
Packaging Details standard carton packing
Delivery Time 6-8weeks
Payment Terms T/T
Supply Ability 100pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Angular Rotation 90° DN 40
Kvs 25 M³/h Medi Temperature -10…120 °C
Valve Characteristic Equal Percentage Permissible Operating Pressure 2500KPa
Material, Valve Body Brass PN Class PN 25
Highlight

Siemens Building Automation 2 Port

,

Siemens Building Automation PN25

,

Siemens Ball valve kvs25
Leave a Message
Product Description

Siemens Ball valve 2-Port PN25 DN40 kvs40 VAI51.40-25



For use in heating, ventilation, and air conditioning plants as control or shutoff valve. In closed circuits.



● Ball valve body made of brass, ball and stem made of stainless steel

● DN 15...50

● kvs 4...63 m3 /h

● Connections with internal threading Rp per ISO 7-1

● Rotational angle 90°

● Can be used with electromotorized rotary actuators GQD..9A, GMA..9E with spring return and GSD161.9A, GDB..9E, GLD161.9E, GLB..9E without spring return

● Moderately price: Optimized flow rates mean smaller ball valves can be selected. Low torque means you can combine them with small, less expensive rotary actuators.

● High life expectancy: Maintenance-free construction, also thanks to low friction stem and polished ball made of stainless steel.

● Simple mounting: The brackets, pre-mounted on the actuators, means you can mount them on the ball valves without tools.



Technical design



Siemens Ball Valve Siemens Building Automation 2 Port PN25 DN40 Kvs25 VAI51.40-25 0



Type Stock numbor DN k S,
[m³/h]

VAl51.15-4

S55230-V203

15

4.0

100

VAl51.15-6.3

S55230-V204

6.3

VAl51.20-6.3

S55230-V205

20

6.3

VAl51.20-10

S55230-V206

10

VAl51.25-10

S55230-V207

25

10

VAl51.25-16

S55230-V208

16

VAl51.32-16

S55230-V209

32

16

VAl51.32-25

S55230-V210

25

VAl51.40-25

S55230-V211

40

25

VAl51.40-40

S55230-V212

40

VAl51.50-40

S55230-V213

50

40

VAl51.50-63

S55230-V214

63
