Home ProductsBently Nevada Vibration Monitoring SystemBently Nevada 330500 Velomitor Piezo-velocity Sensor Velocity Range 1270 mm/s 50 in/s peak

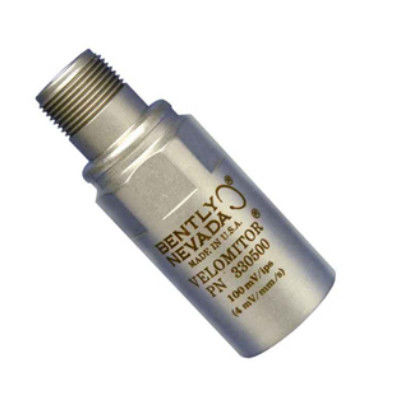

Bently Nevada 330500 Velomitor Piezo-velocity Sensor Velocity Range 1270 mm/s 50 in/s peak

Bently Nevada 330500 Velomitor Piezo-velocity Sensor Velocity Range 1270 mm/s 50 in/s peak
Bently Nevada 330500 Velomitor Piezo-velocity Sensor Velocity Range 1270 mm/s 50 in/s peak
Bently Nevada 330500 Velomitor Piezo-velocity Sensor Velocity Range 1270 mm/s 50 in/s peak Bently Nevada 330500 Velomitor Piezo-velocity Sensor Velocity Range 1270 mm/s 50 in/s peak Bently Nevada 330500 Velomitor Piezo-velocity Sensor Velocity Range 1270 mm/s 50 in/s peak
Basic Information
Place of Origin: USA
Brand Name: Bently Nevada
Certification: CE
Model Number: 330500-02-CN
Document: D-Agent_1-_work-310-s-Uploa...00.pdf
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: 12-16weeks
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now
Sensitivity: 3.94mV/mm/s (100 MV/in/s) ±5%. Frequency Response: 4.5 Hz To 5 KHz (270 Cpm To 300 Kcpm) ±3.0 DB. 6.0 Hz To 2.5 KHz (360 Cpm To 150 Kcpm) ±0.9 DB.
Temperature Sensitivity: -14% To +7.5% Typical Over The Operating Temperature Range. Velocity Range: 1270 Mm/s (50 In/s) Peak.
Transverse Sensitivity: Less Than 5% Of Sensitivity. Amplitude Linearity: ±2% To 152 Mm/s (6 In/s) Peak.
Highlight:

Bently Nevada Velomitor Piezo-velocity Sensor

,

330500 Velomitor Piezo-velocity Sensor

,

Velomitor Piezo-velocity Sensor

Bently Nevada 330500 Velomitor Piezo-velocity Sensor



Bently Nevada Velomitor Piezo-velocity Sensors are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration. The 330500 is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design. Because the 330500 incorporates solid-state electronics and has no moving parts, it does not suffer from mechanical degradation and wear, and can be mounted vertically, horizontally, or at any other angle of orientation.



Ordering Information



Velomitor Piezo-velocity Sensor



330500-AA-BB



A: Mounting Thread Adaptor Option
00 No adapter
01 1/2 - 20 UNF
02 M8 x 1
03 1/4 - 28 UNF
04 1/4 - 20 UNC
05 Unavailable for 330500.
Note: For 1/4-18 NPT mounting, order 330525.
06 5/8 – 18 UNF
07 3/8 – 16 UNC
08 1/2 – 13 UNC
B: Agency Approval Option
00 Not required
01 CSA/US/C
02 ATEX (European)
04 Multiple approvals (CSA, ATEX)

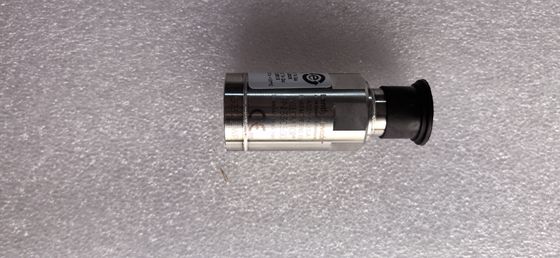

Bently Nevada 330500 Velomitor Piezo-velocity Sensor Velocity Range 1270 mm/s 50 in/s peak 0

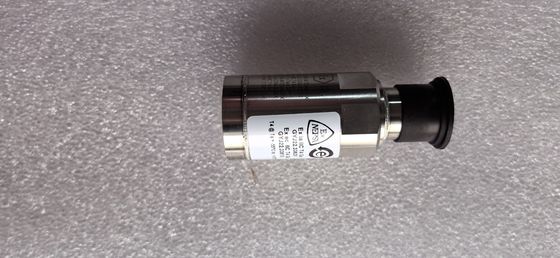

Bently Nevada 330500 Velomitor Piezo-velocity Sensor Velocity Range 1270 mm/s 50 in/s peak 1
