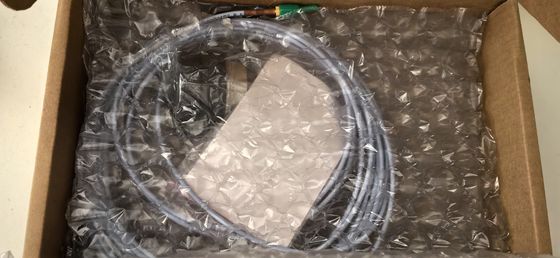

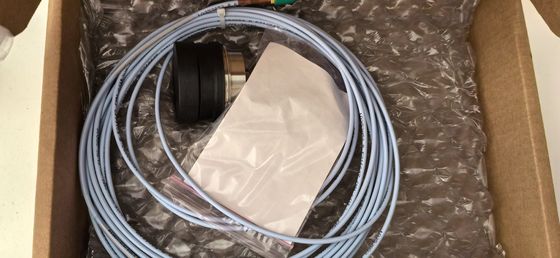

Bently Nevada 3300 XL 50 mm Proximity Probe 330876 with AISI 304 SST Case
Product Details:
| Place of Origin: | USA |
| Brand Name: | Bently Nevada |
| Certification: | CE |
| Model Number: | 330876-01-90-00-00 |
| Document: | D-Agent_1-_work-192-s-Uploa...14.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard carton packing |
| Delivery Time: | 12-16weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Probe Tip Material: | Polyphenylene Sulfide (PPS) | Probe Case Material: | AISI 304 Stainless Steel (SST). |
|---|---|---|---|
| Proximitor Sensor Material: | A380 Aluminum | Sliding Bracket Material: | Anodized Aluminum And Stainless Steel |
| System Length: | 5 Or 9 Metres Including Extension Cable | Probe And Extension Cable Armor (optional): | Flexible SST With PFA Outer Jacket. |
| Highlight: | Proximity Probe 330876,3300 XL 50 mm Proximity Probe |
||
Product Description

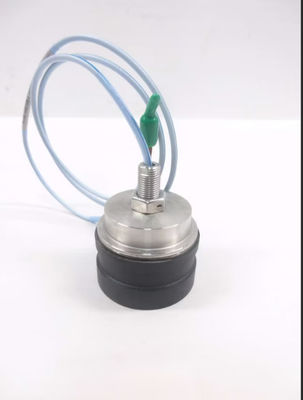

Bently Nevada 3300 XL 50 mm Proximity Probe 330876
The 3300 XL 50 mm Transducer System consists of a separate 50 mm probe, an extension cable, and a 3300 XL 50 mm Proximitor Sensor. The large diameter coil gives this system a maximum linear range of 27.9 mm (1100 mils), the longest linear range of our eddy current transducer line. This linear range makes the 3300 XL 50 mm Transducer System ideal for measuring the differential expansion (DE) or rotor expansion (RX) of large steam turbine generators that results from the difference in growth rates between the turbine rotor and the machine stator (casing).
3300 XL 50 mm Proximity Probe
330876-AA-BB-CC-DD
|
A: Probe Case Type Option |
|
|
01 |
½-20 Thread |
|
02 |
M14x1.5 Thread |
|
03 |
Smooth 1.99 in dia - Side Exit |
|
B: Total Length Option |
|
|
10 |
1.0 metre (3.3 feet) |
|
50 |
5.0 metres (16.4 feet) |
|
90 |
9.0 metres (29.5 feet) |
|
C: ArmorOption |
|
|
00 |
High Temperature FluidLoc Cable |
|
01 |
High Temperature FluidLoc Cable with Armor |
|
D: Agency Approval Option |
|
|
00 |
No Approvals |
|
05 |
Multiple Approvals |
