Bently Nevada PROXPAC XL Proximity Transducer Assembly 330880
Product Details:
| Place of Origin: | USA |
| Brand Name: | Bently Nevada |
| Certification: | CE |
| Model Number: | 330880-16-15-067-01-02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard carton packing |
| Delivery Time: | 12-16weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Proximitor Sensor Input: | 3300 XL 8 Mm Proximity Probe With A 1-metre Cable Length Installed In The Probe Sleeve. | Power: | Requires -17.5 Vdc To -26 Vdc Without Barriers At 12 MA Maximum Consumption, -23 Vdc To -26 Vdc With Barriers. Operation At A More Positive Voltage Than -23.5 Vdc Can Result In Reduced Linear Range. |
|---|---|---|---|
| Supply Sensitivity: | Less Than 2 MV Change In Output Voltage Per Volt Change In Input Voltage. | Output Resistance: | 50 Ω |
| Probe Length (m): | RPROBE (Ω) | 1.0: | 7.59 ± 0.50 |
| Highlight: | 330880 Proximity Transducer Assembly,PROXPAC XL Proximity Transducer Assembly,Bently Nevada Proximity Transducer Assembly |
||
Product Description

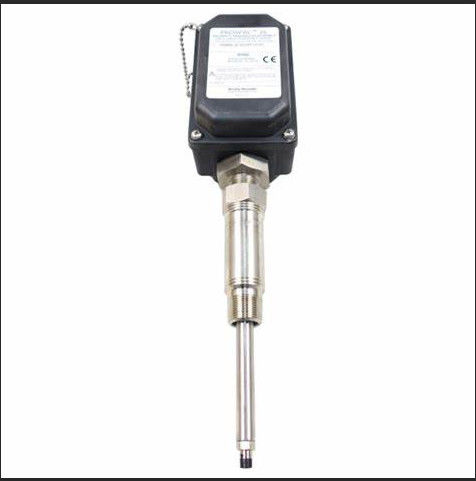

Bently Nevada PROXPAC XL Proximity Transducer Assembly 330880

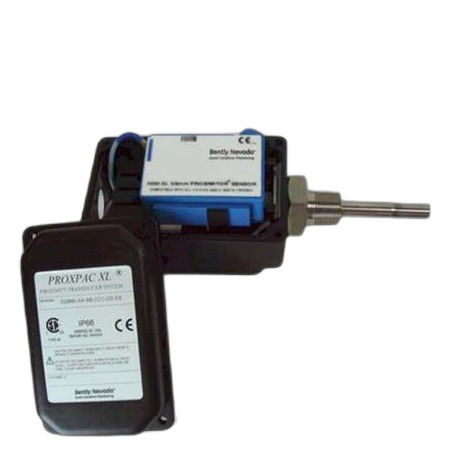

The design of the PROXPAC XL Proximity Transducer Assembly is similar to our 31000/32000 Proximity Probe Housing Assemblies. The assembly offers the same advantages and features as the 31000 and 32000 housings for accessing and externally adjusting proximity probes. However, the housing cover of the PROXPAC XL Assembly also contains its own 3300 XL Proximitor sensor. This design makes the PROXPAC XL Assembly a completely self-contained proximity probe system, and eliminates the need for an extension cable between the probe and its associated Proximitor sensor. It also eliminates the need for a separate Proximitor housing, as the field wiring connects directly between the monitors and PROXPAC XL Assemblies.
The PROXPAC XL housing is made of Polyphenylene Sulfide (PPS), which is an advanced, molded thermoplastic. This material replaces the steel and aluminum in previous housings offered in the Bently Nevada product line. It also incorporates glass and conductive fibers in the PPS to strengthen the housing and more effectively dissipate electrostatic charges. The PROXPAC XL housing is rated for Type 4X and for IP66 environments and provides extra protection in severe environments.
Ordering Information
PROXPAC XL Proximity Transducer, English
330880-AA-BB-CCC-DD-EE
A: Probe and Approvals Option | |
00 | No probe; Proximitor sensor without approvals |
01 | No probe; Proximitor sensor with Multiple Approvals |
16 | 3300 XL 8 mm probe without approvals |
28 | 3300 XL 8 mm probe with Multiple Approvals |
B: Standoff Adapter Option (B Dimension) | |
| Order in increments of 0.5 in (13 mm ). |
| Minimum length: 1.5 in (38 mm) |
| Maximum length: 7.5 in (191 mm ) |
Examples |
|
0 0 | No standoff adapter |
1 5 | 1.5 in (38 mm) |
C: Probe Penetration Option (C Dimension) | |
For penetration lengths between 1.0 and 2.0 inches, counterbore may be required in machine case to reduce | |
probe side view and/or rear view effects. Order in increments of 0.1 in (2 mm). Minimum length: 1.0 in (25 mm) Maximum length: 30 in (762 mm ) | |
Examples |
|
0 0 0 | No probe sleeve |
0 3 7 | 3.7 in (94 mm) |
2 2 4 | 22.4 in (569 mm) |
D: Fittings Option |
|
0 0 | No fittings; two plugs and two washers |
0 1 | One 3/4-14 NPT fitting, two plugs |
0 2 | Two 3/4-14 NPT fittings, one plug |
0 3 | One 3/4-14 NPT fitting, one 3/4-14 NPT to 1/2-14 NPT SST reducer and two plugs |
E: Mounting Thread Option |
|
0 0 | No outer sleeve assembly |
0 2 | 3/4-14 NPT (Required if ordering Standoff Adapter Option.) |
0 5 | 7/8-14 UNF-2A |
