Bently Nevada 200155 Machinery Condition Monitoring Measurement Range in m/s2 g ±196 ±20
Product Details:
| Place of Origin: | USA |
| Brand Name: | Bently Nevada |
| Certification: | CE |
| Model Number: | 200155-18-CN |
| Document: | 200150, 200155 and 200157 A...1).pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard carton packing |
| Delivery Time: | 12-16weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Used With ProTIM Option: | Low Frequency Accelerationto-Velocity Channel Type (- 05) | Type Of Application: | Fin-Fan, Slow Rotating Shafts |
|---|---|---|---|
| Measurement Range In M/s2 (g): | ±196 (±20) | Mounted Resonant Frequency: | >20 KHz (>1200 Kcpm) |
| Amplitude Linearity (1 To 10g Pk): | ±2% | Transverse Sensitivity: | ≤7% |
| Highlight: | Bently Nevada 200155 Machinery Condition Monitoring,Bently Nevada 200155 |
||
Product Description
Bently Nevada Machinery Condition Monitoring 200155

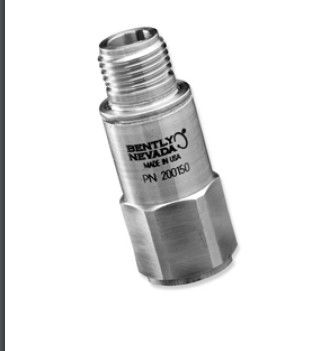

The 20015x Accelerometers are general purpose, wide frequency, case-mounted seismic transducers designed for use with Trendmaster ProTIMs.
The 20015x Accelerometers feature a hermetically sealed, stainless steel case. This design provides an extremely rugged transducer that is well suited for harsh industrial environments. The transducer’s top-mounted, 5-pin connector allows you to easily install and remove the interconnecting signal cable. A 3/8-24 threaded hole on the bottom of the sensor’s casing accommodates several mounting options.
200155-AA-BB
|
A: Mounting Stud Option |
|
|
00 |
No mounting stud provided |
|
01 |
3/8-24 thread, 2 adhesive mount frames with adhesive |
|
02 |
3/8-24 to 3/8-24 UNF 1-3/8 inch hex plate stud |
|
03 |
3/8-24 to 1/2-20 UNF 1-3/8 inch hex plate stud |
|
04 |
3/8-24 to 1/4 NPT 1-3/8 inch hex plate stud |
|
05 |
3/8-24 to 1/4 NPT 1-3/8 inch hex plate stud |
|
06 |
3/8-24 to 1/4 NPT, 3/4 inch hex stud |
|
07 |
3/8-24 to 3/8 NPT, 3/4 inch hex stud |
|
08 |
3/8-24 to 1/2 NPT 1 inch hex stud |
|
09 |
3/8-24 to 3/4 NPT, 1-1/4 inch hex stud |
|
10 |
3/8-24 to 1 NPT, 1-3/8 inch hex stud |
|
11 |
3/8-24 to 1-1/4 NPT, 1-3/4 inch hex stud |
|
12 |
3/8-24 to 1/4-20 UNC, 3/4 inch hex stud |
|
13 |
3/8-24 to 5/16-18 UNC, 3/4 inch hex stud |
|
14 |
3/8-24 to 3/8-24 UNF, 3/4 inch hex stud |
|
15 |
3/8-24 to 3/8-16 UNC, 3/4 inch hex stud |
|
16 |
3/8-24 to 1/2-13 UNC, 3/4 inch hex stud |
|
17 |
3/8-24 to 3/8-16 UNC 1-3/8 inch hex plate stud |
|
18 |
3/8-24 to M8x1 1-3/8 inch hex plate stud |
|
19 |
Quick-Set XDCR adapter, 1-inch hex stud |
|
20 |
3/8-24 thread, 1 magnetic mount base |
|
21 |
3/8-24 outer diameter to M6x1 inner diameter 1-3/8 inch hex plate stud |
|
22 |
3/8-24 to M8x1.25 1-3/8 inch hex plate stud |
|
23 |
3/8-24 to M16x2.0 1-3/8 inch hex plate stud |
|
B: Approvals |
|
|
05 |
Multiple Approvals (CSA, ATEX, and IECEx) |
