Bently Nevada Machinery Condition Monitoring System 200350 High Efficiency
Product Details:
| Place of Origin: | USA |
| Brand Name: | Bently Nevada |
| Certification: | RoHS |
| Model Number: | 200350-02-00-CN |
| Document: | 200350 D-Agent_1-_work-310-...R1.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard carton packing |
| Delivery Time: | 12-16weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Mounting Thread: | 1/4-28 Female | Mounting Torque (Maximum): | 2 To 5 Ft-lb (2.7 To 6.8 N-m) |
|---|---|---|---|
| Sensing Element: | Ceramic | Sensing Geometry: | Shear |
| Housing Material: | Stainless Stee | Sealing: | Welded Hermetic |
| Highlight: | 200350 Machinery Condition Monitoring,Bently Nevada 200350,Bently Nevada Machinery Condition Monitoring System |
||
Product Description

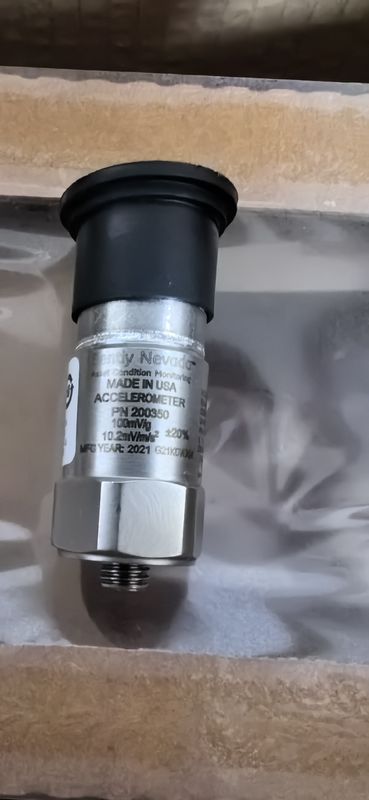

Bently Nevada Machinery Condition Monitoring 200350

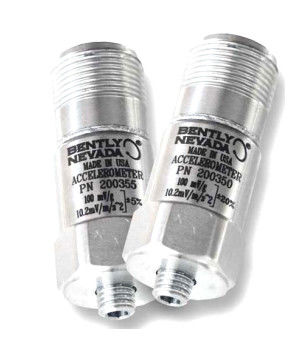

The 200350 and 200355 Accelerometers are general purpose, case-mounted seismic transducers designed for use with Trendmaster Pro Constant Current Direct Input Card, part number 149811-02 and the Seismic Direct Input Card, part number 164746-01.

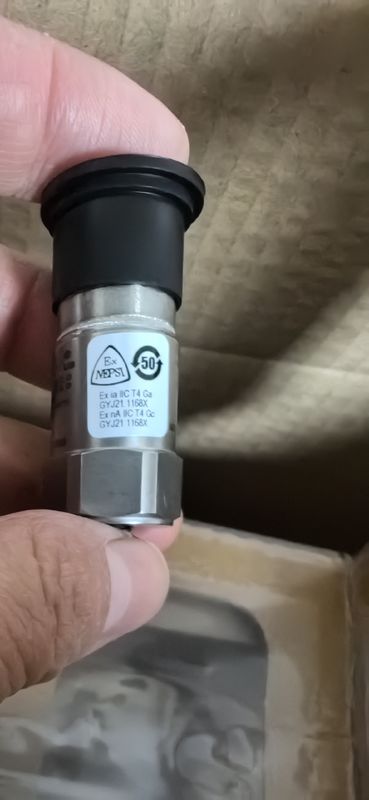

The 200350 and 200355 Accelerometers are contained within a hermetically sealed, stainless steel case. The design provides an extremely rugged transducer, well suited for harsh industrial environments. Each transducer’s top mounted, 2-pin connector (MIL-C5015) allows for easy installation and removal of the interconnecting signal cable. A ¼-28 threaded hole on the bottom of the casing accommodates multiple mounting options.
The 200350 and 200355 Accelerometers contain a piezoelectric sensing device, which generates charge when subjected to vibration. This charge is then converted electronically to a differential voltage signal, which is proportional to the acceleration that is parallel to the sensitive axis of the transducer.
200350 – AA - BB - CC
|
A: Mounting Stud |
|
|
00 |
¼-28 SS w/ Brass tip, 0.5” |
|
01 |
¼-28 to M6 x 1.00 Stainless Steel |
|
02 |
¼-28 to M8 x 1.25 Stainless Steel |
|
09 |
No mounting stud |
|
10 |
1/4 -28 Adhesive Stud Mount |
|
11 |
M6x1 Adhesive Stud Mount |
|
12 |
M8x1.25 Adhesive Stud Mount |
|
13 |
Magnetic Base Kit |
|
B: Tolerance |
|
|
00 |
100 mV/g ± 20% (10.2 mV/m/s^2 ±20%) |
|
C: Approvals |
|
|
00 |
No Approvals |
|
01 |
CSA, ATEX, IECEx |
