Bently Nevada Machinery Condition Monitoring 330400 Temperature Sensitivity -11% to 3%

  • Bently Nevada Machinery Condition Monitoring 330400 Temperature Sensitivity -11% to 3%
  • Bently Nevada Machinery Condition Monitoring 330400 Temperature Sensitivity -11% to 3%
  • Bently Nevada Machinery Condition Monitoring 330400 Temperature Sensitivity -11% to 3%
Place of Origin USA
Brand Name Bently Nevada
Certification CE
Model Number 330400-01-CN
Document 330400 and 330425.pdf
Minimum Order Quantity 1pc
Price negotiable
Packaging Details standard carton packing
Delivery Time 12-16weeks
Payment Terms T/T
Supply Ability 100pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Sensitivity 10.2 MV/m/s2 (100 MV/g) ±5%. Acceleration Range 490 M/s2 (50 G) Peak Overall Acceleration Within The 10 Hz To 15 KHz Frequency Span. Vibration At Frequencies Above 15 KHz, Especially At The Transducers Resonance Will Significantly Decrease This Range.
Amplitude Linearity ±1% To 490 M/ S2 (50 G) Peak. Broadband Noise Floor (10 Hz To 15 KHz) 0.039 M/s2 (0.004 G) Rms.
Frequency Response 10 Hz To 15 KHz (600 Cpm To 900,000 Cpm) ±3dB; 30 Hz To 10 KHz (1800 Cpm To 600,000 Cpm) ±10% Temperature Sensitivity -11% To +3% Typical Over The Operating Temperature Range.
Highlight

330400 Machinery Condition Monitoring

,

Bently Nevada 330400

,

Bently Nevada Machinery Condition Monitoring
Leave a Message
Product Description

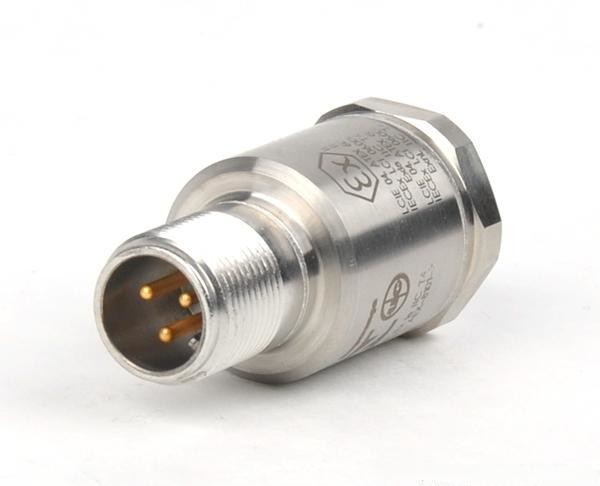

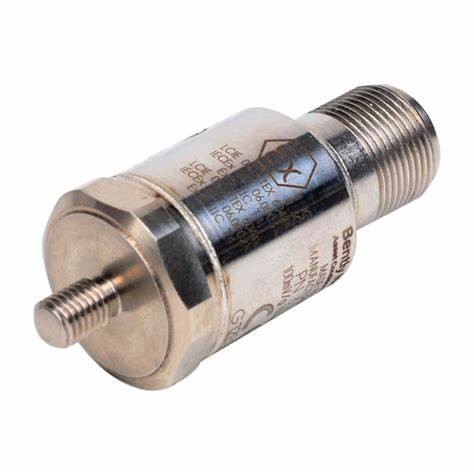

Bently Nevada Machinery Condition Monitoring 330400

These accelerometers are intended for critical machinery applications where casing acceleration measurements are required, such as gear mesh monitoring. The 330400 is designed to address the requirements of American Petroleum Institute Standard 670 for accelerometers. It provides an amplitude range of 50 g peak and a sensitivity of 100 mV/g. The 330425 is identical except it provides a larger amplitude range (75 g peak) and a sensitivity of 25 mV/g.



330400 Accelerometer



330400-AA-BB



A: Mounting Thread Option
01 ¼-28 UNF integral stud
02 M8 X 1 integral stud
B: Agency Approval Option
00 None
05 Multiple approvals (CSA, ATEX, IECEx,)
