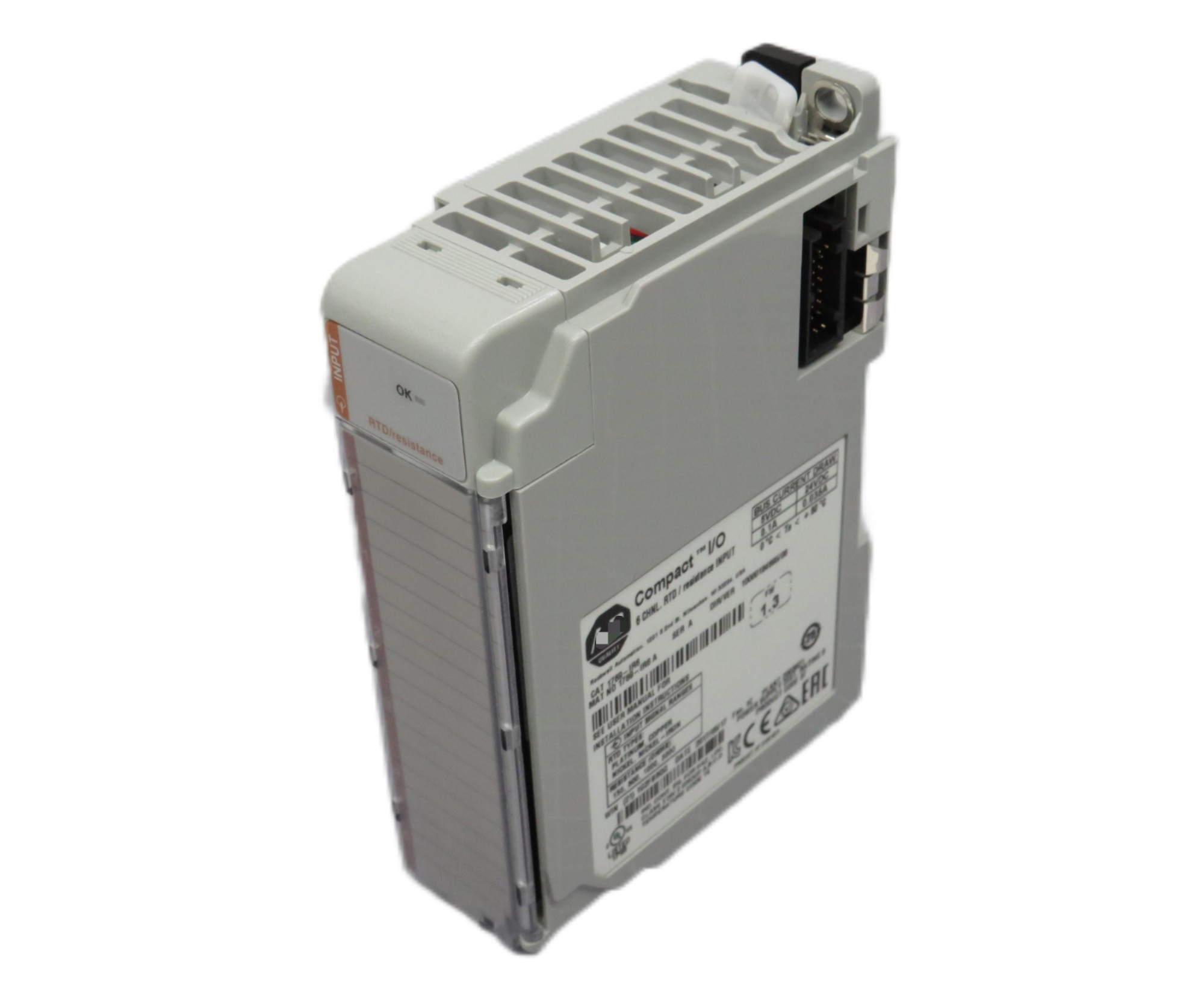

AB CompactLogix 6 Pt RTD Module 1769-IR6

The 1769 Compact I/O™ modules can be used in these applications:

• With a 1769 CompactLogix™ controller

• For expansion I/O in a MicroLogix™ 1500 controller assembly

• In an assembly with a 1769-ADN DeviceNet® adapter

• In an assembly with a 1769-AENTR Ethernet adapter

I/O Module Overview

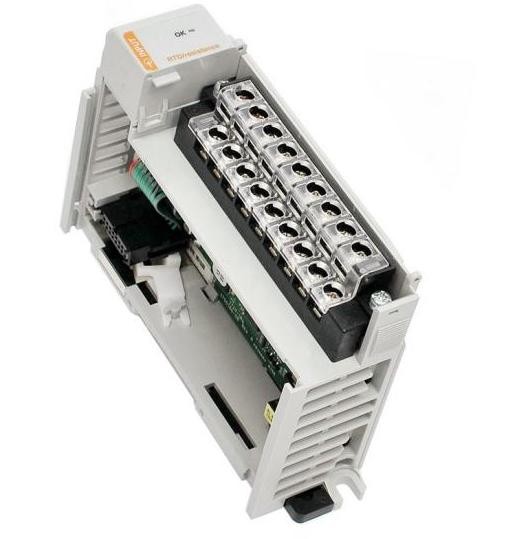

Each I/O module includes a built-in removable terminal block with fingersafe cover for connections to I/O sensors and actuators. The terminal block is behind a door at the front of the module. I/O wiring can be routed from beneath the module to the I/O terminals.

• Once the modules are locked together, the system becomes a rugged assembly.

• Upper and lower tongue-and-groove slots guide the module during installation and attach the module to the system.

• Removable terminal blocks help ease the wiring task.

• Self-lifting, field-wire pressure plates cut installation time.

• The patented bus connector with the lock function enables consistent and system communication.

• A color bar is provided on the front of the module.

• Digital and field circuits are optically isolated.
