Bently Nevada 3300 XL 25 mm Proximity Probe 330851

The 3300 XL 25 mm Transducer System consists of a separate 25 mm probe, an extension cable, and a 3300 XL 25 mm Proximitor Sensor. The 0.787 V/mm (20 mV/mil) output gives this system a linear range of 12.7 mm (500 mils). Based on this linear range, the 3300 XL 25 mm Transducer System is suitable for measuring differential expansion (DE) on midsize to large steam turbine generators caused by the difference in growth rates between the turbine rotor and themachine stator (casing).

Ordering Information

3300 XL 25 mm Proximity Probe

330851-AA-BBB-CCC-DD-EE-FF

A: Probe Case Type Option

01 1 ¼ - 12 thread

02 M30x2 thread

03 Smooth 1.06 in dia. - Rear Exit

04 Smooth 1.06 in dia. - Side Exit

05 1 ½ - 12 thread

06 M39x1.5 thread

07 Smooth 1.5 in dia. - Rear Exit

08 Smooth 1.5 in dia. - Side Exit

B: Unthreaded Length Option

Metric Case Types

Order in increments of 2 mm

Maximum Unthreaded Length:224 mm

Minimum Unthreaded Length: 0 mm

Example 050 = 50 mm

English Case Types

Order in increments of 0.1 in

Maximum Unthreaded Length:8.9 in

Minimum Unthreaded Length:0.0 in

Example 025 = 2.5 in

C: Overall Case Length Option

Metric Case Types

Order in increments of 2 mm

Maximum Unthreaded Length:250 mm

Minimum Unthreaded Length:26 mm

Example 050 = 50 mm

English and Smooth Case Types

Order in increments of 0.1 in

Maximum Unthreaded Length:9.9 in

Minimum Unthreaded Length:1.0 in (1.5 in for side exit case types)

Example 020 = 2.0 in

D: Total Length Option

10 1.0 metre (3.3 feet)

50 5.0 metres (16.4 feet)

90 9.0 metres (29.5 feet)

E: Armor Option

00 No Armor

01 with SST Armor

F: Agency Approval Option

00 No Approvals

05 Multiple Approvals

Related Models

330851-01-000-020-10-00-05	330851-02-0-40-10-00-CN	330851-03-000-010-10-00-CN
330851-01-000-030-10-00-05	330851-02-000-060-50-01-CN	330851-02-000-060-50-00-00
330851-02-000-040-10-00-05	330851-05-000-040-10-00-CN	330851-02-000-050-10-00-CN
330851-02-000-080-10-00-05	330851-02-000-060-10-01-00	330851-02-000-070-50-01-CN
330851-04-000-015-10-00-05	330851-03-000-010-10-00-CN	330851-04-000-023-10-01-CN
330851-04-000-020-10-00-05	330851-04-000-020-10-01-00	330851-02-000-050-90-00-CN
330851-04-000-040-10-01-00	330851-02-020-050-10-00-00	330851-02-000-078-10-01-CN
330851-02-010-066-90-00-CN	330851-01-000-014-10-01-00	330851-02-000-060-10-01-CN
330851-04-000-040-50-00-CN	330851-02-0-80-90-01-CN	330851-02-000-080-50-00-CN
330851-02-000-070-90-00-CN	330851-02-000-046-10-01-CN	330851-04-000-023-10-01-00
330851-02-000-060-10-00-CN	330851-04-000-015-10-00-CN	330851-04-000-023-10-01-00
330851-02-000-070-10-00-CN	330851-08-000-019-90-01-00	330851-04-000-023-10-01-00
330851-02-000-070-10-00-CN	330851-04-000-030-90-00-CN	330851-02-000-070-50-00-00
330851-02-000-030-10-00-00	330851-02-000-030-10-00-CN	330851-02-000-110-10-00-CN
330851-02-000-060-50-00-00	330851-04-00-27-50-01-00	330851-01-000-030-10-00-00
330851-02-000-060-10-00-00	330851-02-000-070-10-00-00	330851-01-000-030-10-00-CN
330851-02-000-060-10-00-CN	330851-02-000-060-50-00-CN	330851-02-000-050-90-00-CN
330851-04-000-020-10-01-CN	330851-04-000-020-90-00-00	330851-00-0-40-10-00-CN
330851-02-000-026-50-00-CN	330851-03-00-20-10-00-00	330851-04-000-020-10-00-00
330851-02-00-100-50-01-00	330851-01-000-020-10-00-CN	330851-02-010-140-10-00-CN
330851-02-000-060-50-00-CN	330851-01-000-070-10-01-00	330851-01-00-30-50-01-00
330851-02-000-50-90-00-00	330851-02-00-50-90-00-00	330851-05-000-40-10-00-CN
330851-05-00-27-10-01-00	330851-04-00-20-90-00-00	330851-04-00-20-90-00-CN

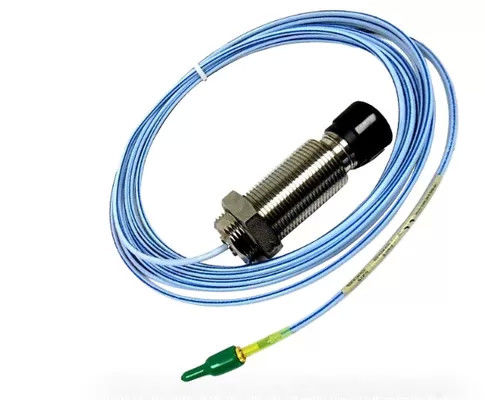

Bently Nevada 3300 XL 25 mm Proximity Probe 330851 with Output Resistance of 50W 0

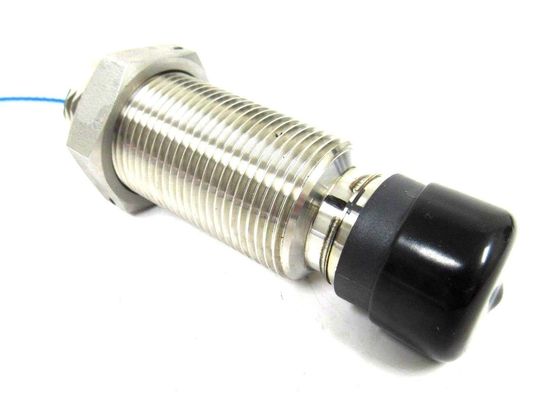

Bently Nevada 3300 XL 25 mm Proximity Probe 330851 with Output Resistance of 50W 1

Tag:

Place of Origin:	USA
Brand Name:	Bently Nevada
Certification:	CE
Model Number:	330851-02-000-050-10-00-CN
Document:	D-Agent_1-_work-28-s-Upload...L1.pdf

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	12-16weeks
Payment Terms:	T/T
Supply Ability:	100pcs per month

Proximitor Sensor Input:	Accepts One Noncontacting 3300 XL 25 Mm Proximity Probe And Extension Cable.	Supply Sensitivity:	Less Than 2 MV Change In Output Voltage Per Volt Change In Input Voltage.
Output Resistance:	50 W	Probe Tip Material:	Polyetheretherketone (PEEK)
Probe Case Material:	AISI 304 Stainless Steel (SST)	Proximitor Sensor Material:	A380 Aluminum
Highlight:	25 mm Proximity Probe , Bently Nevada 3300 XL Proximity Probe , 330851 Proximity Probe
