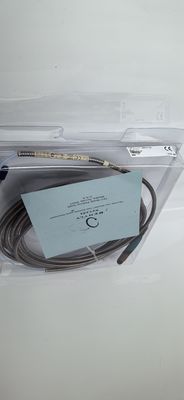

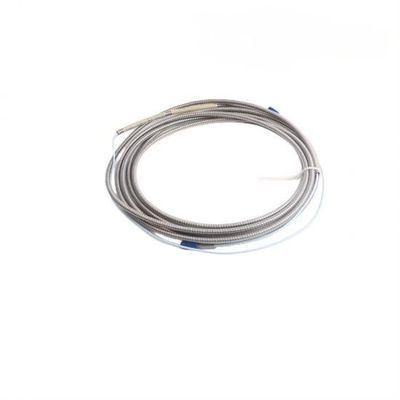

330930-060-01-CN Bently Nevada 3300 NSv Extension Cable With Linear Range 1.5 Mm 60 Mils

  • 330930-060-01-CN Bently Nevada 3300 NSv Extension Cable With Linear Range 1.5 Mm 60 Mils
  • 330930-060-01-CN Bently Nevada 3300 NSv Extension Cable With Linear Range 1.5 Mm 60 Mils
  • 330930-060-01-CN Bently Nevada 3300 NSv Extension Cable With Linear Range 1.5 Mm 60 Mils
Place of Origin USA
Brand Name Bently Nevada
Certification CE
Model Number 330930-060-01-CN
Minimum Order Quantity 1pc
Price negotiable
Packaging Details factory original
Delivery Time 12-16weeks
Payment Terms T/T
Supply Ability 100pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Length 6m(19.7inch) Extension Cable Dc Resistance Center Conductor: 0.220 Ω/m (0.067 Ω/ft) Shield: 0.066 Ω/m (0.020 Ω/ft)
Extension Cable Capacitance 69.9 PF/m (21.3 PF/ft) Typical Linear Range 1.5 Mm (60 Mils). Linear Range Begins At Approximately 0.25 Mm (10 Mils) From Target And Is From 0.25 To 1.75 Mm (10 To 70 Mils) (approximately -1 To - 13 Vdc)
Material 75 Ω Coaxial, Fluoroethylene Propylene (FEP) Insulated. Origin Origin
Highlight

330930-060-01-CN Extension Cable

,

3300 NSv Extension Cable

,

Bently Nevada Extension Cable
Leave a Message
Product Description

330930-060-01-CN Bently Nevada 3300 NSv Extension Cable



The 3300 NSv probe and extension cable are mechanically and electrically compatible and interchangeable with Bently Nevada’s previous 3300 RAM proximity probe and extension cable.The NSv probe has increased chemical resistance compared to the 3300 RAM probe,which allows its use in many process compressor applications. The side-view characteristics of the 3300 NSv probe are also superior to those of the 3000-series 190 probe when gapping the 3300 NSv probe at the same distance from the probe target.


3300 NSv Extension Cable



330930-AAA-BB-CC

0 4 0

4.0 meter (13.1 feet)

0 4 5

4.5 meter (14.8 feet)

0 6 0

6.0 meter (19.7 feet)

0 6 5

6.5 meter (21.3 feet)

B: Connector and Cable Option

0 0

Without stainless steel armor

0 1

With stainless steel armor, with

FEP jacket

0 2

With stainless steel armor,

without FEP jacket

0 3

Without stainless steel armor,

with connector protector

0 4

With stainless steel armor, with

FEP jacket, with connector

protector

0 5

With stainless steel armor,

without FEP jacket, with

connector protector

0 6

FluidLoc cable without stainless

steel armor

0 7

FluidLoc cable with stainless

steel armor, with FEP jacket

0 8

FluidLoc cable with stainless

steel armor, without FEP jacket

0 9

FluidLoc without stainless steel

armor, with connector protector

1 0

FluidLoc cable with stainless

steel armor, with FEP jacket, with

connector protector

1 1

FluidLoc cable with stainless

steel armor, without FEP jacket,

with connector protector

C: Agency Approval Option

0 0

Not Required

0 5

Multiple Approvals



330930-060-01-CN Bently Nevada 3300 NSv Extension Cable With Linear Range 1.5 Mm 60 Mils 0
