AM3100T2-Z2 Bently Nevada IEPE Accelerometer With 2-10 MA Current Regulating Diode
| Place of Origin | USA |
|---|---|
| Brand Name | Bently Nevada |
| Certification | CE |
| Model Number | AM3100T2-Z2 |
| Minimum Order Quantity | 1pc |
| Price | negotiable |
| Packaging Details | standard carton packing |
| Delivery Time | 12-16weeks |
| Payment Terms | T/T |
| Supply Ability | 100pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Acceleration Range | 80 G Peak | Amplitude Nonlinearity | 1% |
|---|---|---|---|
| Current Regulating Diode | 2-10 MA | Output Impedance, Max 1 | 100 Ω |
| Temperature Range | -55°C To 120°C | Weight | 62 Grams |
| Highlight | Bently Nevada IEPE Accelerometer,AM3100T2-Z2 Bently Nevada Accelerometer |
||
Product Description

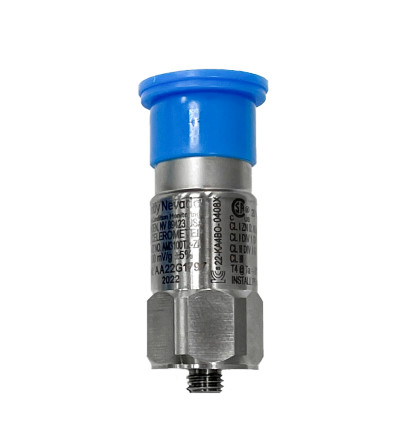

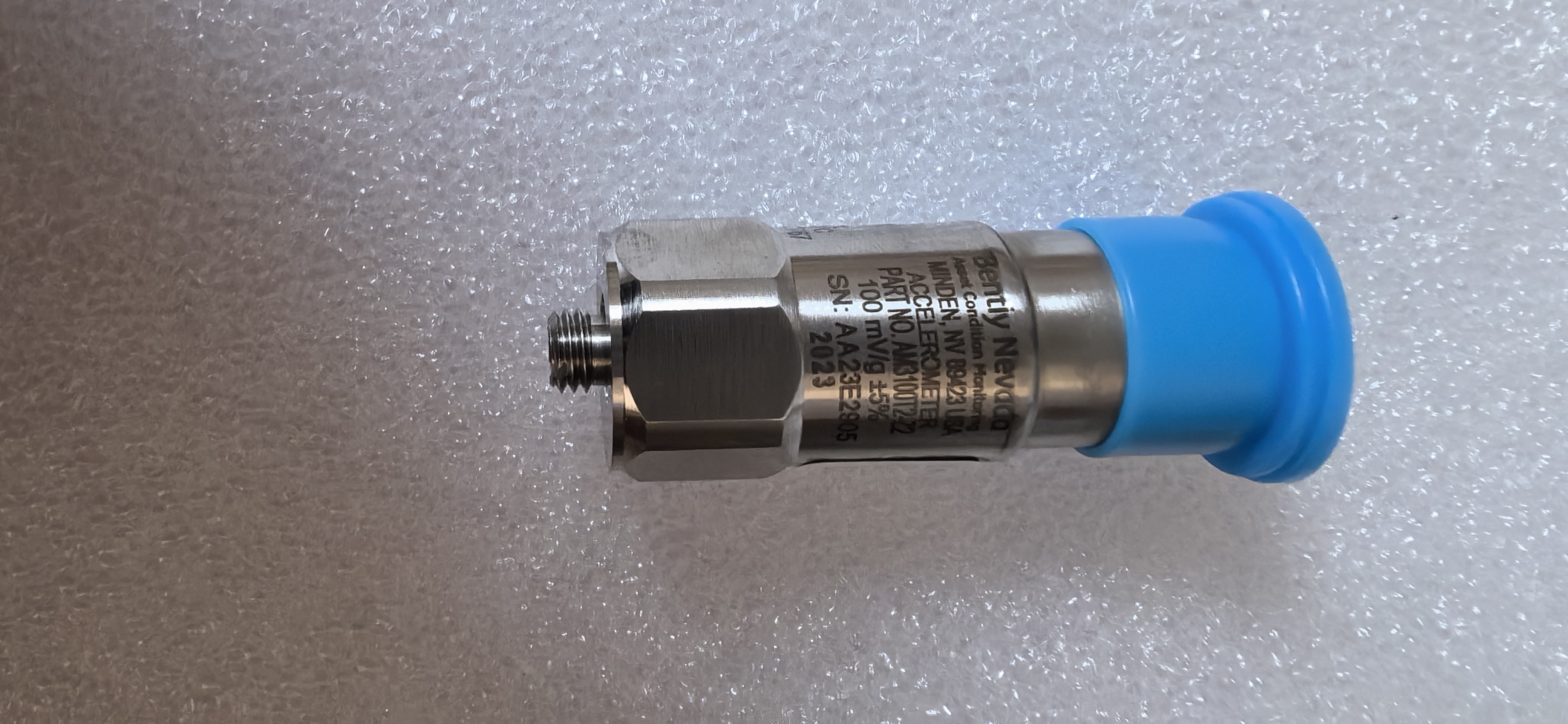

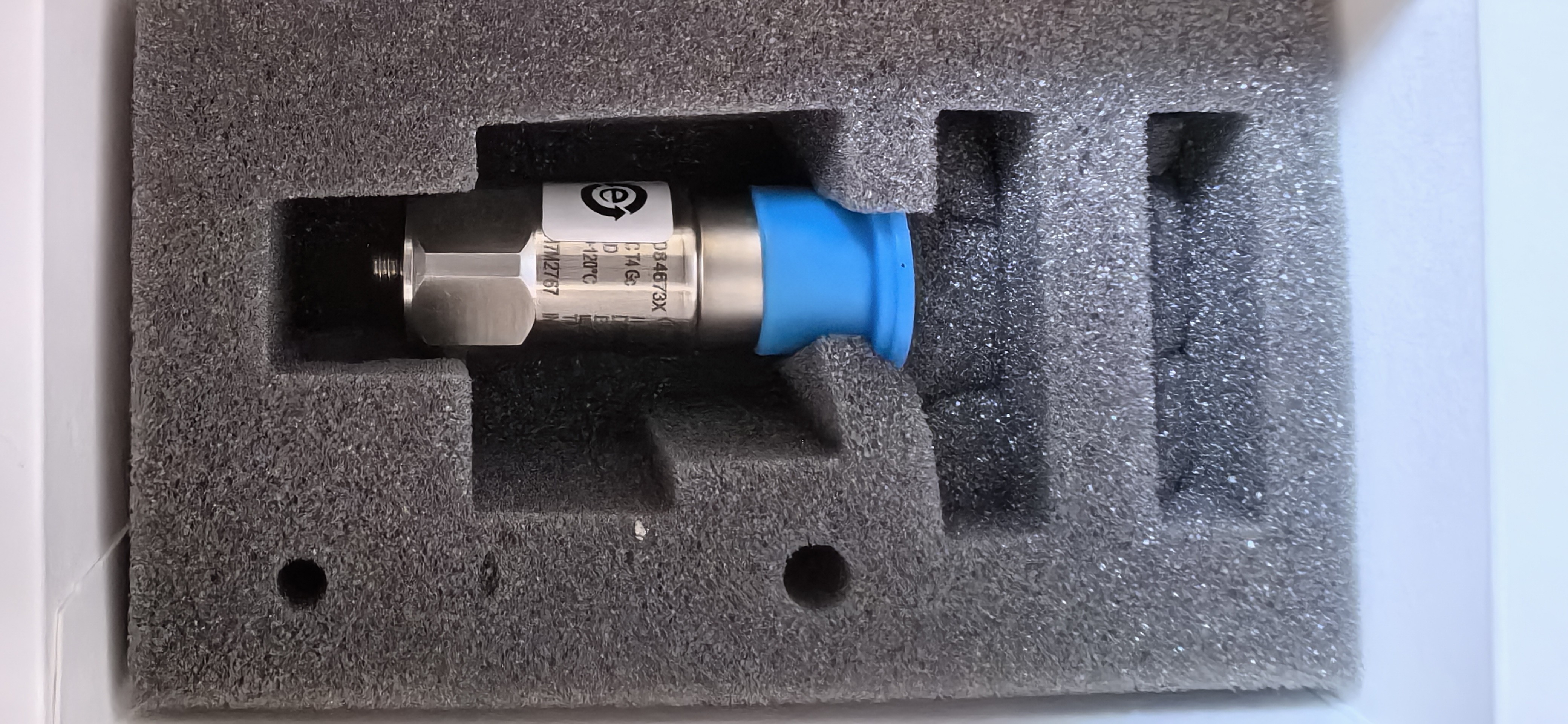

AM3100T2-Z2 Bently Nevada IEPE Accelerometer
This series of Integrated Electronics Piezo-Electric (IEPE) accelerometers are optimized for obtaining high quality vibration signals in harsh industrial environments. Their piezo sensing elements provide exceptional dynamic range,frequency range and linearity, while their integrated amplifiers boost the signal, making them relatively immune to electrical noise.
Features
-
Rugged stainless design, corrosion resistant
-
Hermetic seal, case isolated
-
ESD protection
-
Reverse wiring protection
-
EMI / RFI shielded
-
Hazardous area certifications
Dynamic
|
Sensitivity, ± 5% @25°C |
100mV/g |
|
Acceleration range |
10 g peak |
|
Amplitude nonlinearity |
1% |
|
Frequency response |
±10%: 0.7-9,000
Hz
± 3 dB: 0.4-
14,000 Hz
|
|
Resonant frequency |
30 kHz |
|
Transverse sensitivity, max |
±5% of axia |
|
Temperature response |
-55°C : -20% +120°C : +10%
|
Electrical
|
Voltage source |
18-30 Vdc |
|
Current regulating diode |
2-10 mA |
|
Broadband electrical noise @ 2.5 Hz to 25 kHz |
500μg |
|
Spectral electrical noise @ 10 Hz |
7 μg/√Hz |
|
Spectral electrical noise @ 100 Hz |
4μg/√Hz |
|
Spectral electrical noise @ 1000 Hz |
2μg/√Hz |
|
Output Impedance, max |
100 Ω |
|
Bias output voltage |
12 Vdc |
|
Grounding |
case isolated, internally shielded |
Accelerometers in the Series
|
Part Number |
Cable exit |
Sensitivity |
Accel range |
Frequency Range (3dB) |
Haz-area rating |
|
AM3100T2-Z2 |
Top exit sensor |
100 mV/g |
± 80 g |
0.4 - 14,000 Hz |
Zone 2 rated |
|
AS3100S2-Z2 |
Side exit sensor |
100 mV/g |
± 80 g |
0.5 - 10,000 Hz |
Zone 2 rated |
|
AP3500T2-Z1 |
Top exit sensor |
500 mV/g |
± 10 g |
0.2 - 2,300 Hz |
Zone 1 rated |
|
AP3500S2-Z1 |
Side exit sensor |
500 mV/g |
± 10 g |
0.2 - 3,700 Hz |
Zone 1 rated |
|
AM3100T2-Z0 |
Top exit sensor |
100 mV/g |
± 80 g |
0.4 - 14,000 Hz |
Zone 0 rated |
|
AS3100S2-Z0 |
Side exit sensor |
100 mV/g |
± 80 g |
0.7 - 10,000 Hz |
Zone 0 rated |
