330450-20 330450-40 Bently Nevada High Temperature Acceleration System with Minimum Bend Radius of 51mm 2.0in
Product Details:
| Place of Origin: | USA |
| Brand Name: | Bently Nevada |
| Certification: | CE |
| Model Number: | 330450-20/330450-40 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard carton packing |
| Delivery Time: | 12-16weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Sensitivity: | 10.2 MV/m/s2 (100 MV/g) ±5%. | Input Voltage: | -24 ± 0.5 Vdc |
|---|---|---|---|
| Case Material: | 300 Series Stainless Steel. | Connector: | 3-pin Mil-C-5015 Receptacle, Hermeticallysealed, 304 Stainless Steel Shell. |
| Weight: | 635 Grams (1.40 Lb)-794 Grams (1.75 Lb) | Bend Radius: | Minimum Bend Radius Of 51mm (2.0in) |
| Highlight: | 330450-40 High Temperature Acceleration System,Bently Nevada High Temperature Acceleration System,330450-20 High Temperature Acceleration System |
||
Product Description

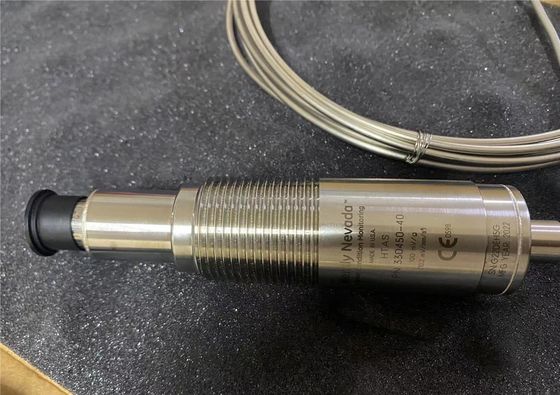

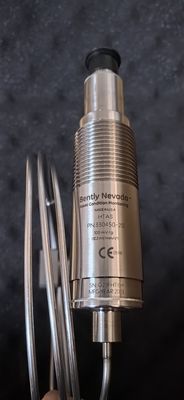

330450-20 330450-40 Bently Nevada High Temperature Acceleration System
The standard 330400 Accelerometer has a limited temperature range it can be exposed to, due to its signal conditioning electronics being located in the same case as the sensing element. Temperature limitations of the electronics limit its maximum operating temperature to +100°C (+212°F).
The 330450 High Temperature Acceleration System (HTAS) has a fundamentally different construction to solve this problem. Its design segregates the sensing element from the signal conditioning electronics, with the two permanently connected via a hardline cable. Current versions (see note
below) of these sensors allow the sensing head to be mounted on surfaces with temperatures as high as +400°C(+752°F). Due to the segregated design, the signal conditioning electronics can be installed in a cooler location.This achieves overall transducer system performance comparable to other acceleration transducers, but permits use at significantly higher temperatures. By eliminating connections between the sensing head and its associated signal conditioning electronics, a significant source of potential transducer failures (connector problems) is eliminated.
Ordering Information
330450-AA
|
A: Length |
|
|
2 0 |
2 metres |
|
4 0 |
4 metres |
|
6 0 |
6 metres |
|
8 0 |
8 metres |
