24765-01-00 Bently Nevada Case Expansion Transducer Systems Input Power 30 mA minimum Scale Factor 0.346 V/mm 8.79 V/in

  • 24765-01-00 Bently Nevada Case Expansion Transducer Systems Input Power 30 mA minimum Scale Factor 0.346 V/mm 8.79 V/in
  • 24765-01-00 Bently Nevada Case Expansion Transducer Systems Input Power 30 mA minimum Scale Factor 0.346 V/mm 8.79 V/in
  • 24765-01-00 Bently Nevada Case Expansion Transducer Systems Input Power 30 mA minimum Scale Factor 0.346 V/mm 8.79 V/in
Place of Origin USA
Brand Name Bently Nevada
Certification CE
Model Number 24765-01-00
Document 24765 and 135613 Case Expan...98.pdf
Minimum Order Quantity 1pc
Price negotiable
Packaging Details standard carton packing
Delivery Time 12-16weeks
Payment Terms T/T
Supply Ability 100pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Power +24 Vdc, 30 MA Minimum Scale Factor 0.346 V/mm (8.79 V/in)
Linear Range ± 12.7 Mm (±0.5 In). Minimum Load Resistance 50 KΩ
Length 241 Mm (9.50 In) Weight 2.3 Kg (5.0 Lbs)
Highlight

Bently Nevada Case Expansion Transducer

,

Bently Nevada Case Expansion Transducer Systems

,

24765-01-00 Case Expansion Transducer Systems
Leave a Message
Product Description

24765-01-00 Bently Nevada Case Expansion Transducer Systems

An important position measurement in Turbine Supervisory Instrumentation (TSI) is case expansion. Case expansion (sometimes referred to as shell expansion) is the thermal growth of the machine case as it expands during machine startup and on-line operations. The case expansion transducer system is typically mounted on the foundation at the opposite end from where the turbine casing is attached to the foundation and provides

information about the growth of the machine case relative to the foundation.

Case expansion is a parameter that you should use a dual transducer arrangement to measure. This arrangement provides information about the position of the sliding feet on the machine case. A condition that obstructs or jams one foot could distort the case and damage the machine. The
dual case expansion transducer configuration in conjunction with the 3300 or 3500 monitors provides an alarm for this condition. The high temperature dual case expansion transducer configuration is compatible only with the 3500/45 Position Monitor.


Ordering Information



24765-AA-BB



A: Linear Range Option



01

25.4 mm (1.0 in)

02

0.8 mm(2.0 in)

03

101.6 mm (4.0 in)

B: Spring Option



00

Without spring return

01

With spring return

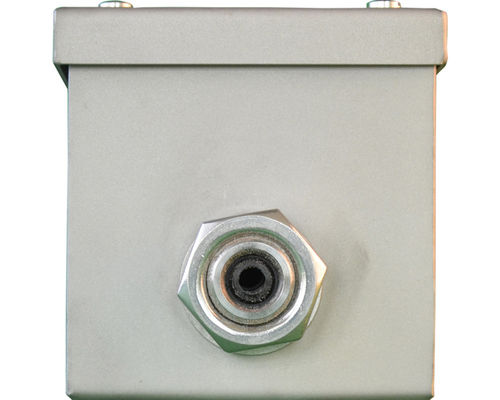

24765-01-00 Bently Nevada Case Expansion Transducer Systems Input Power 30 mA minimum Scale Factor 0.346 V/mm 8.79 V/in 0

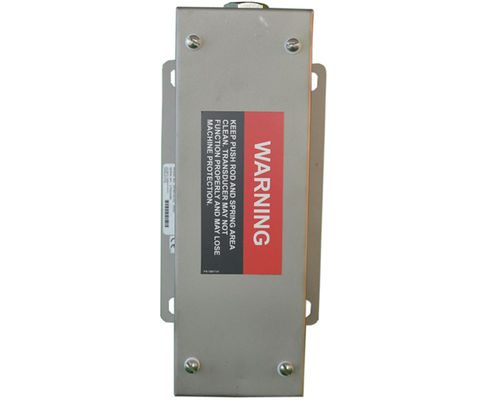

24765-01-00 Bently Nevada Case Expansion Transducer Systems Input Power 30 mA minimum Scale Factor 0.346 V/mm 8.79 V/in 1

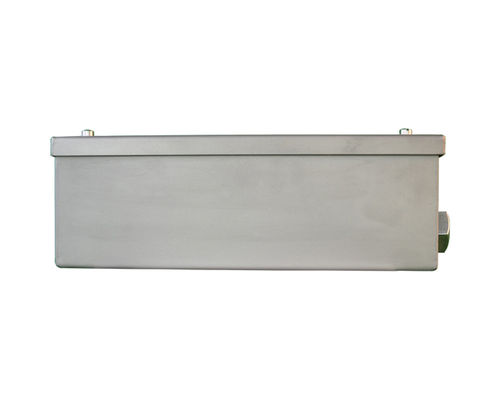

24765-01-00 Bently Nevada Case Expansion Transducer Systems Input Power 30 mA minimum Scale Factor 0.346 V/mm 8.79 V/in 2
