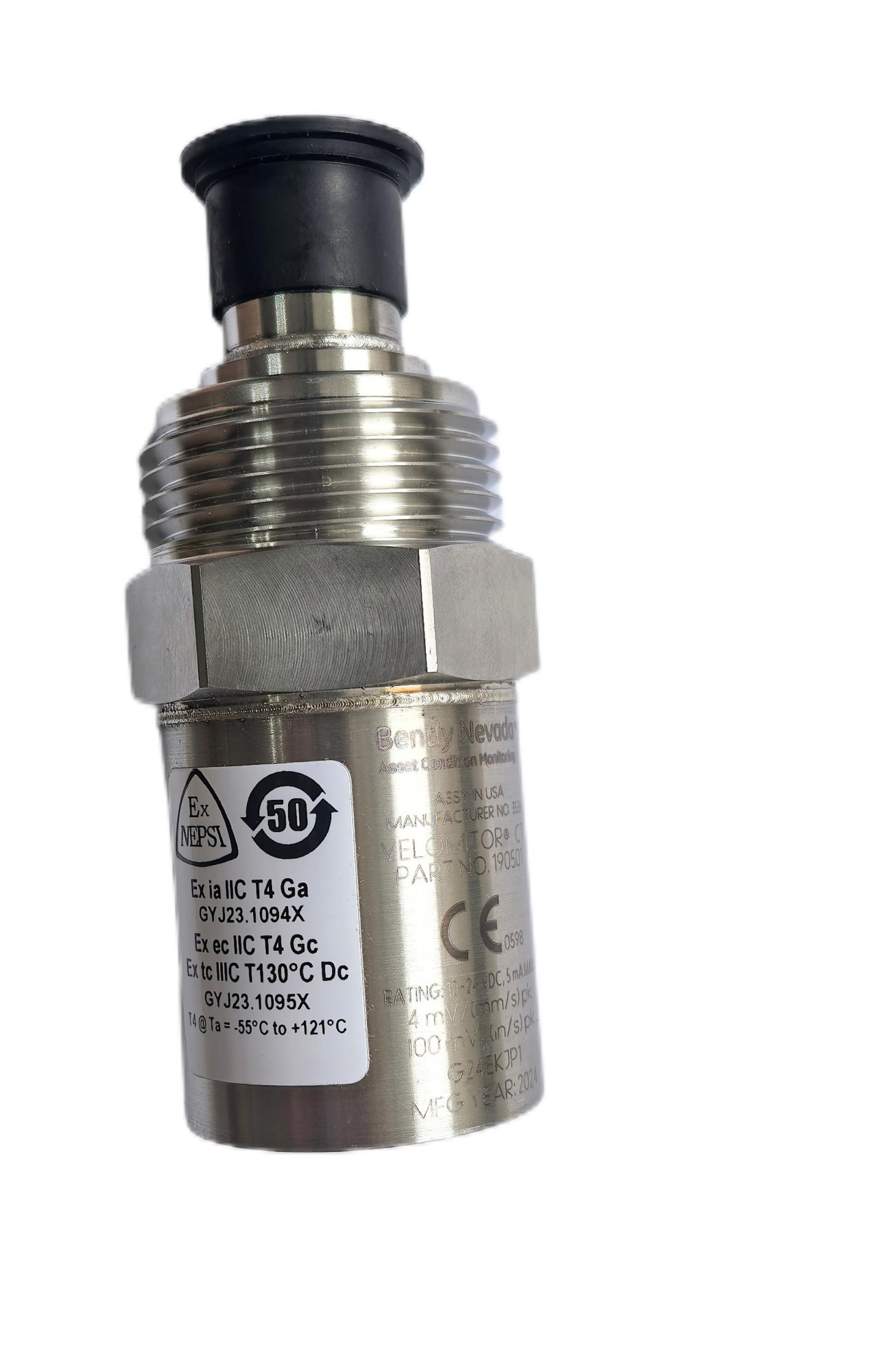

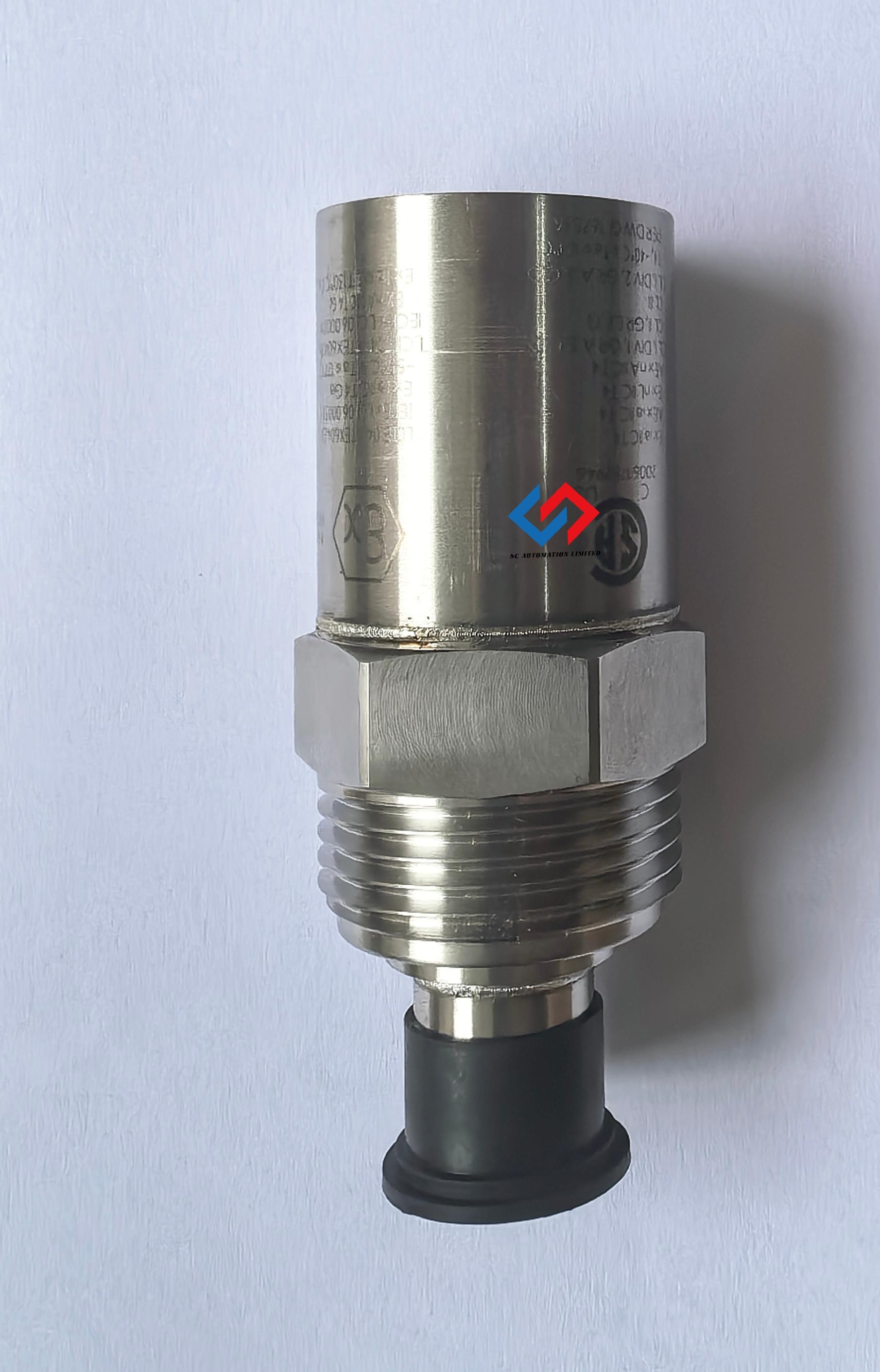

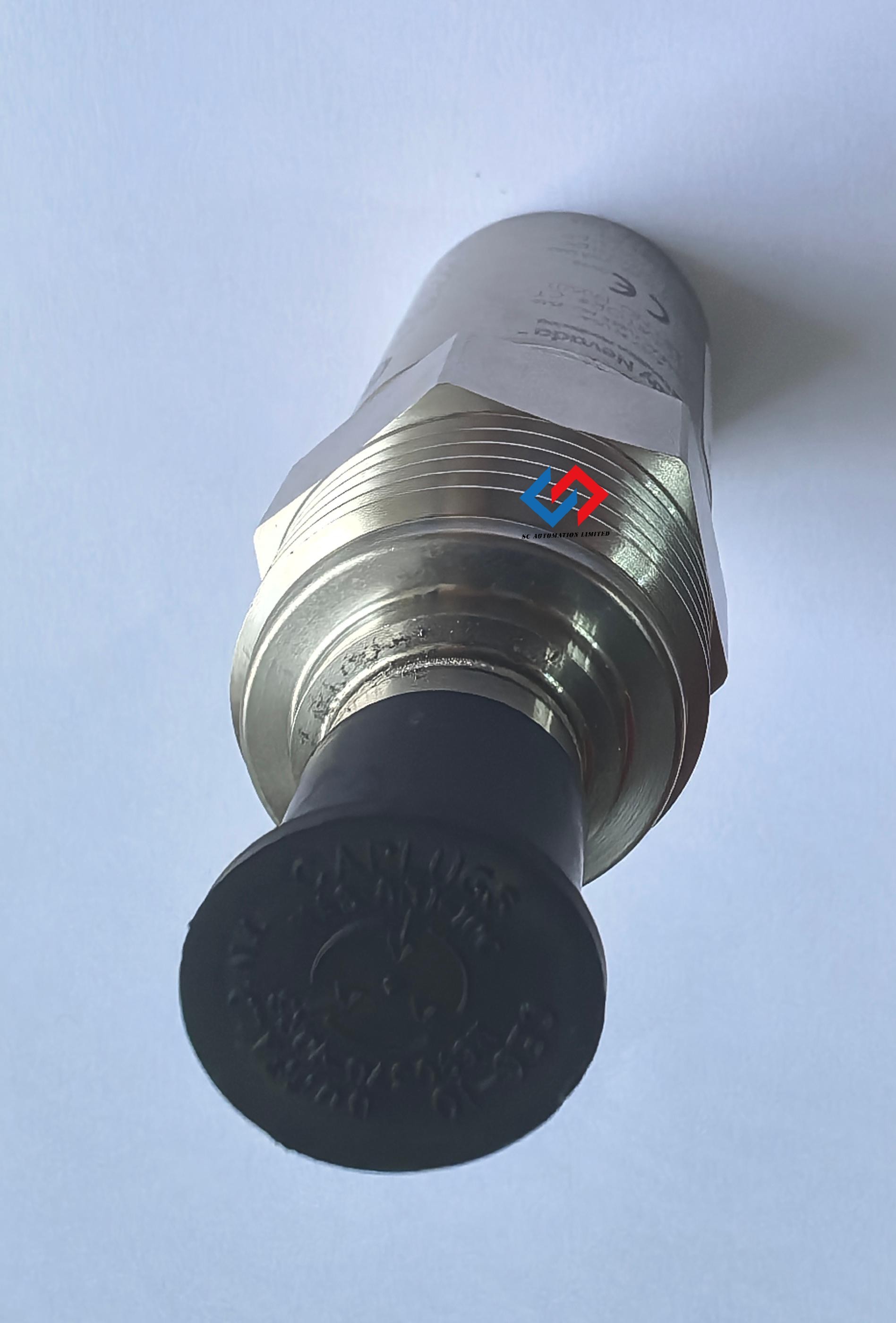

190501-07-00-CN Bently Nevada 190501 Velomitor CT Transducer
Product Details:
Place of Origin: | USA |
Brand Name: | Bently Nevada |
Certification: | CE |
Model Number: | 190501-07-00-CN |
Payment & Shipping Terms:
Minimum Order Quantity: | 1pc |
---|---|
Price: | negotiable |
Packaging Details: | standard carton packing |
Delivery Time: | 12-16weeks |
Payment Terms: | T/T |
Supply Ability: | 100pcs per month |
Detail Information |
|||
Operating Temperature: | -40°C To +85°C (-40°F To +185°F) | Storage Temperature: | -40°C To +100°C (-40°F To +212°F). |
---|---|---|---|
Connector: | 2-pin 316L Stainless Steel MIL-C-5015, Top | Mounting Torque: | 4.5 N-m ± 0.6 N-m (40 In–lbf ± 5 In-lbf). |
Case Material: | 316L Stainless Steel | Origin: | USA |
Highlight: | 190501-07-00-CN Velomitor CT Transducer,Bently Nevada Velomitor CT Transducer,190501 Velomitor CT Transducer |
Product Description
190501-07-00-CN Bently Nevada 190501 Velomitor CT Transducer
Description
The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical).
The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.
Ordering Information
Velomitor CT Velocity Transducer
190501-AA-BB-CC
A: Mounting Hardware Option |
|
00 |
No stud |
01 |
Stud 3/8-in 24 to 3/8-in 24 |
02 |
Stud 3/8-in 24 to 1/2-in 20 |
03 |
Adhesive Stud 3/8-in 24 |
04 |
Stud M6x1 with 3/8-in 24 adapter |
05 |
Adhesive Stud M6x1 with 3/8-24 adapter |
06 |
Stud 3/8-in 24 to 1/4-in 28 |
07 |
Plate Stud 3/8-in 24 to 3/8-in 24 |
08 |
Plate Stud 3/8-in 24 to 1/2-in 20 |
09 |
Plate Stud 3/8-in 24 to 1/4-in NPT |
10 |
Plate Stud M6x1 to M6x1with 3/8- in 24 adapter |
11 |
Plate Stud 3/8-in 24 to 1/4-in 28 |
12 |
Plate Stud 3/8-in 24 to M8x1 |
13 |
Quick disconnect stud |
14 |
Adapter, 3/8-in 24 to 1/4-in 20 |
15 |
Adapter, 3/8-in 24 to 5/16-in 18 |
16 |
Adapter, 3/8-in 24 to 3/8-in 24 |
17 |
Adapter, 3/8-in 24 to 3/8-in 16 |
18 |
Adapter, 3/8-in 24 to 1/2-in 13 |
19 |
Adapter, 3/8-in 24 to 1/4-in 18 NPT |
20 |
Adapter, 3/8-in 24 to 3/8-in 18 NPT |
21 |
Adapter, 3/8-in 24 to 1/2-in 14 NPT |
22 |
Adapter, 3/8-in 24 to 3/4-in 14 NPT |
23 |
Adapter, 3/8-in 24 to 1.0-in 11.5 NPT |
24 |
Adapter, 3/8-in 24 to 1.25-in 11.5 NPT |
B: Connection Option |
|
00 |
MIL-C-5015 connection interface |
99 |
Unit with included 32-foot cable |
C: Agency Approval Option |
|
00 |
No Approvals |
01 through 04 |
CSA/NRTL/C (Class I, Division 1), ATEX/IECEx/CSA (Class I, Zone 0/1) |
Accessories
128608-02 |
04284020-01 |
04365657 |
87910-01 |
87931-01 |
87055-01 |
89139-01 |
107756-01 |
107755-01 |
107754-01 |
107757-01 |
125094-01 |
128038-01 |
128689-01 |
43055-01 |
128690-01 |
03839201 |
03850000 |
