Product Details:

Place of Origin: USA
Brand Name: Bently Nevada
Certification: CE
Model Number: 330380-90-00

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: 12-16weeks
Payment Terms: T/T
Supply Ability: 100pcs per month
Get Best Price Contact Now

Detail Information

Manufacturer: Bently Nevada Part No: 330380-90-00
Total Length: 9 Meter Mounting Option: Panel Mount
Agency Approval: Not Required Weight: 1kg
Highlight:

3300 XL Proximitor Sensor

,

330380-90-00 Proximitor Sensor

,

16mm Proximitor Sensor

Product Description

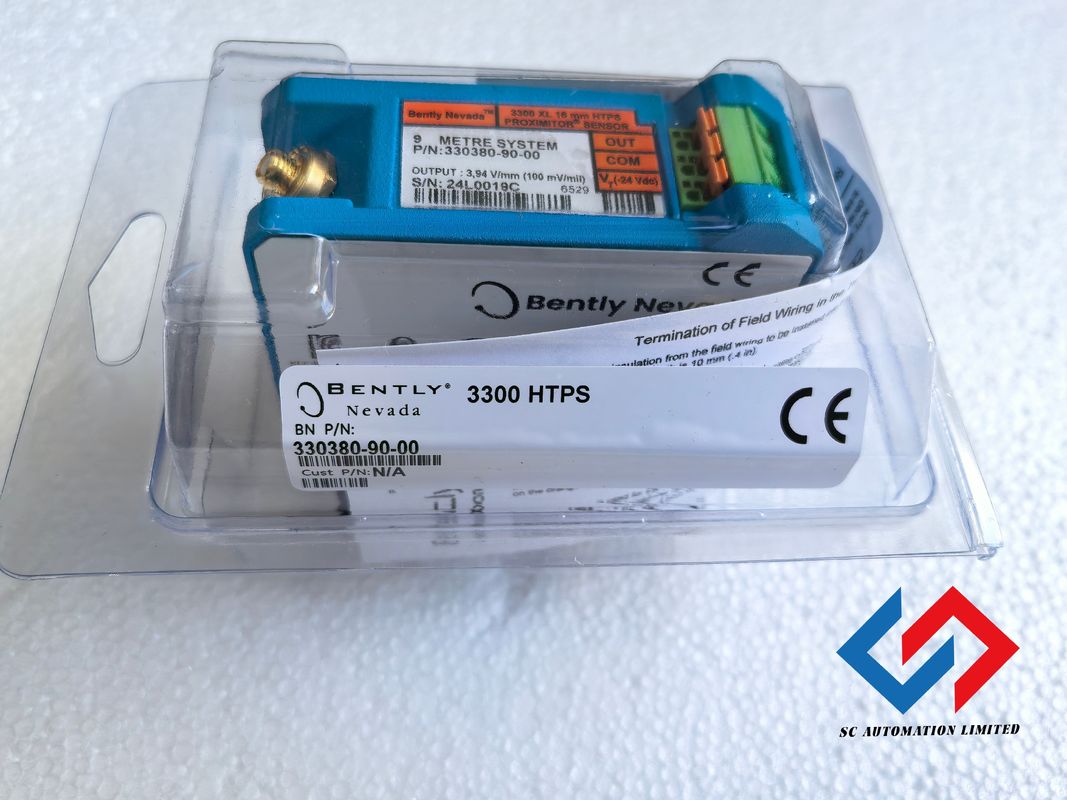

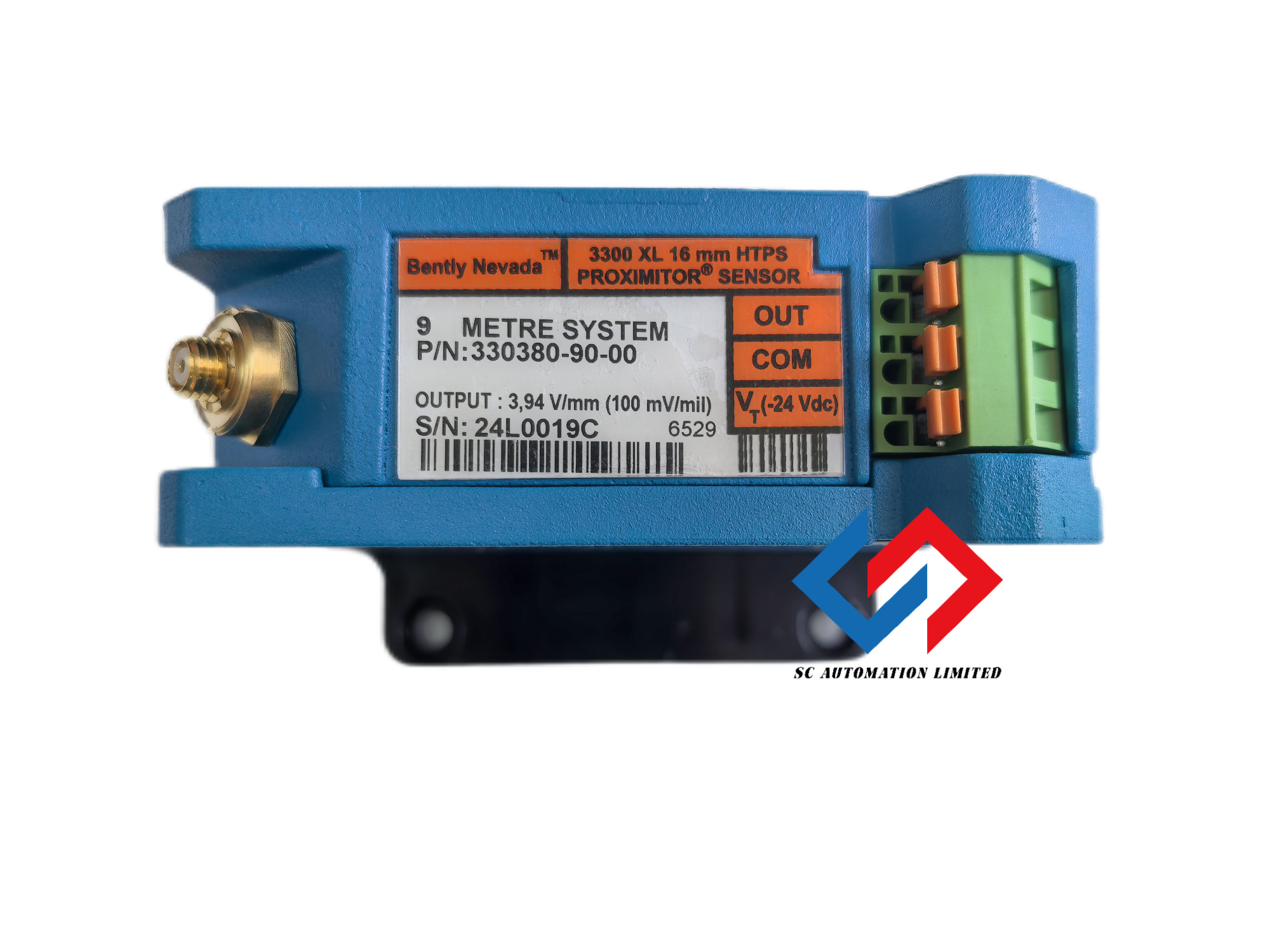

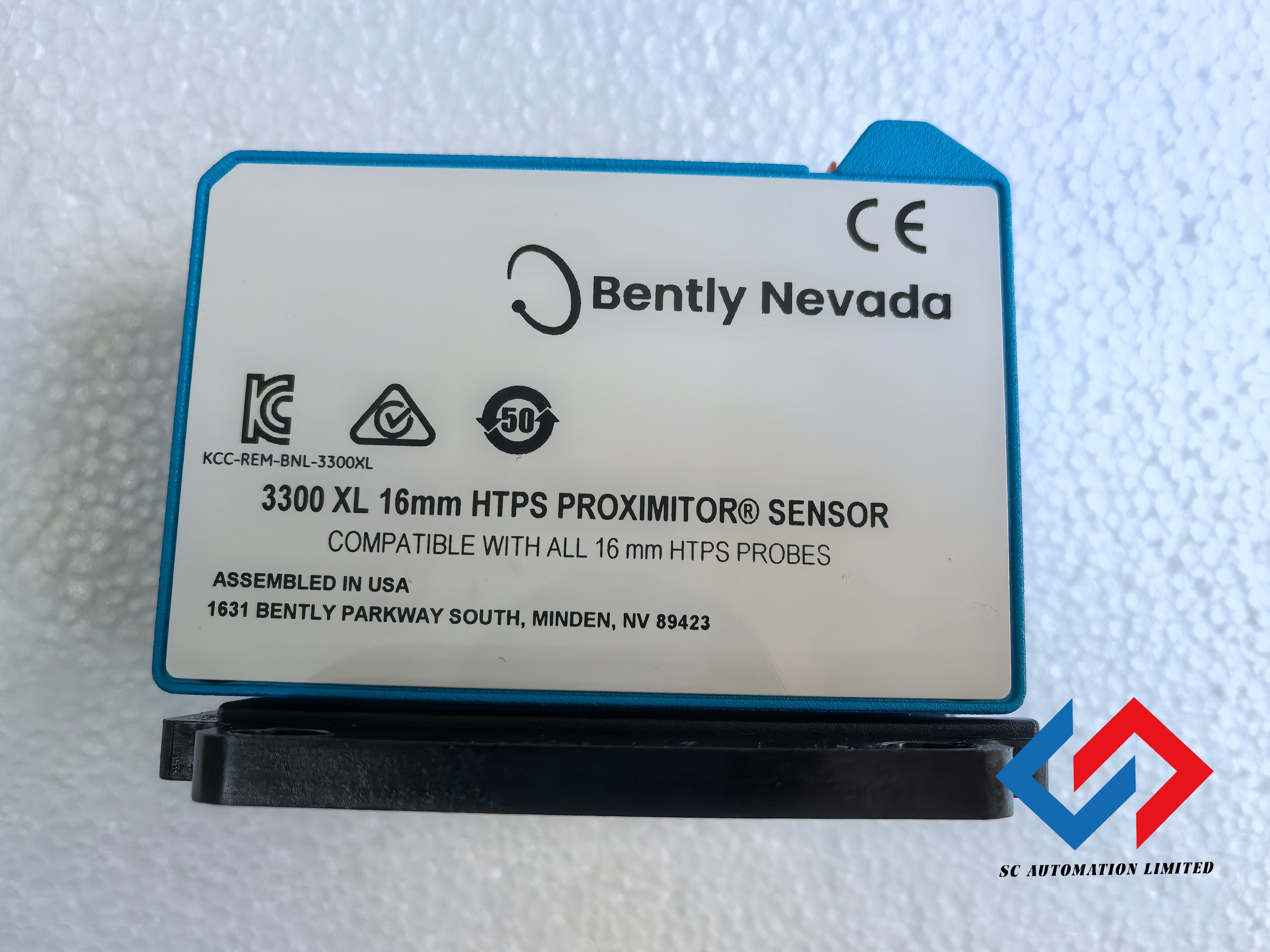

330380-90-00 3300 XL 16mm High Temperature Proximitor Sensor

Gas and steam turbines can produce temperatures hot enough to damage or destroy conventional proximity probes. The 3300 High Temperature Proximity System (HTPS) is designed to withstand the extreme temperatures found inside gas turbines, steam turbines and other types of rotating machinery. The HTPS measures vibration, thrust position, differential expansion and other parameters inside the hot areas of these machines. High temperature installations include:



  • Near a labyrinth seal in steam turbines
  • Differential expansion in steam turbines
  • When probe cables are routed through struts that support the bearing housing of a gas turbine
  • When probe cables are routed out through the exhaust path of a gas turbine
  • Monitoring a troublesome bearing in a high temperature area
  • Mode shape analysis at the mid-span location on steam and gas turbines for online machinery diagnostics
  • Interstage radial and axial seal clearance measurements at the mid-span location of multistage steam turbines to minimize seal rubs
  • Most hot bearing locations that can destroy conventional proximity probes



Ordering Information



330380-AA-BB (replaced 330300)



A: Total Length and Mounting Option

90

9 meter, panel mount

91

9 meter, DIN mount

92

9 meter, no mounting hardware

B: Agency Approval

00

Not required



Related Products:



330380-91-00

330380-92-00

125M6030

159132

134835-01
