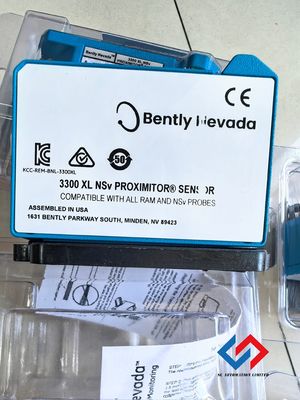

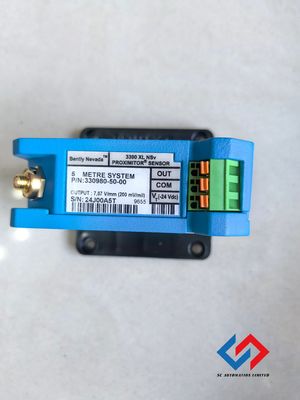

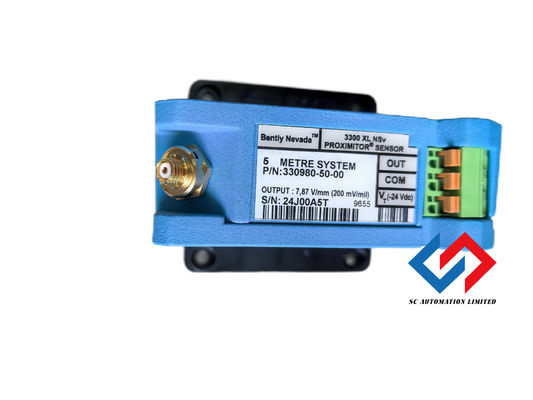

330980-50-00 Bently Nevada 3300 XL NSv Proximitor Sensor with Panel Mounting Option
Product Details:
Place of Origin: | USA |
Brand Name: | Bently Nevada |
Certification: | ATEX |
Model Number: | 330980-50-00 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1pc |
---|---|
Price: | negotiable |
Packaging Details: | standard carton packing |
Delivery Time: | 12-16weeks |
Payment Terms: | T/T |
Supply Ability: | 100pcs per month |
Detail Information |
|||
Manufacturer: | Bently Nevada | Part No: | 330980-50-00 |
---|---|---|---|
Length: | 5.0 Meters (16.4 Feet) | Mounting Option: | Panel Mount |
Weight: | 1kg | Country Of Origin: | USA |
Highlight: | Bently Nevada Proximitor Sensor,3300 XL NSv Proximitor Sensor,330980-50-00 Proximitor Sensor |
Product Description
330980-50-00 Bently Nevada 3300 XL NSv Proximitor Sensor
The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present:
-
Radial vibration and radial position measurements
-
Axial (thrust) position measurements
-
Tachometer and zero speed measurements
-
Phase reference (Keyphasor signals)
Ordering Information
330980-AA-BB
A: Total Length and Mounting Option |
|
50 |
5.0 meters (16.4 feet) system length, panel mount |
51 |
5.0 meters (16.4 feet) system length, DIN mount |
52 |
5.0 meters (16.4 feet) system length, no mounting hardware1 |
70 |
7.0 meters (23.0 feet) system length, panel mount |
71 |
7.0 meters (23.0 feet) system length, DIN mount |
72 |
7.0 meters (23.0 feet) system length, no mounting hardware1 |
B: Agency Approval Option
|
|
00 |
Not required |
05 |
Multiple approvals |
Accessories
147357 |
40971-04 |
02120015 |
04310310 |
138492-01 |
03200006 |
138493-01 |
40113-03 |
01609137 |
136536-01 |
01609138 |
40180-03 |
03800000
|
03800001
|
330153-05
|
163356
|
