330909-00-20-10-02-CN Bently Nevada 3300 NSv Proximity Probes for Accurate and Monitoring

330909-00-20-10-02-CN Bently Nevada 3300 NSv Proximity Probes for Accurate and Monitoring

Product Details:

Place of Origin: USA
Brand Name: Bently Nevada
Certification: CE
Model Number: 330909-00-20-10-02-CN

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: 12-16weeks
Payment Terms: T/T
Supply Ability: 100pcs per month
Get Best Price Contact Now

Detail Information

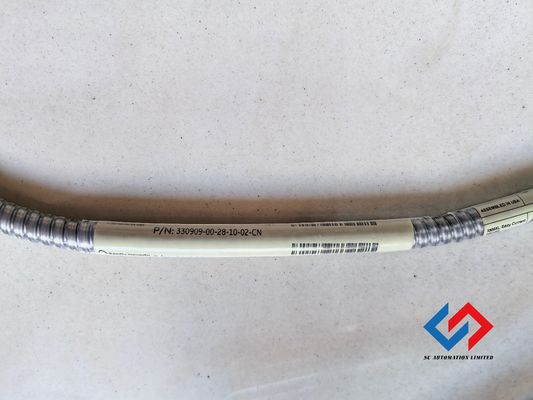

Manufacturer: Bently Nevada Part Number: 330909-00-20-10-02-CN
Input: Accepts One Noncontacting 3300 RAM Or 3300 NSv Proximity Probe And Extension Cable Power: Requires -17.5 Vdc To -26 Vdc Without Barriers At 12 MA Maximum Consumption, -23 Vdc To -26 Vdc With Barriers.
Probe Tip Material: Polyphenylene Sulfide (PPS) Weight: 0.5kg
Highlight:

Bently Nevada Proximity Probes

,

3300 NSv Proximity Probes

,

330909-00-20-10-02-CN Proximity Probes

Product Description

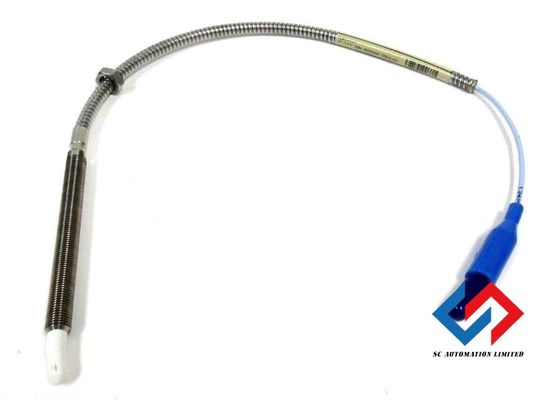

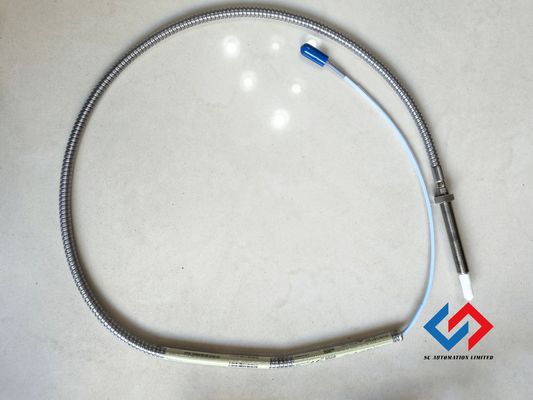

330909-00-20-10-02-CN Bently Nevada 3300 NSv Proximity Probes



The 3300 NSv probe comes in varying probe case configurations, including armored and unarmored 1/4-28, 3⁄8-24, M8X1 and M10X1 probe threads. The reverse mount 3300 NSv probe comes standard with either 3⁄8-24 or M10X1 threads. All components of the transducer system have gold-plated brass ClickLoc connectors. ClickLoc connectors lock into place and prevent the connection from loosening. The patented TipLoc molding method provides a robust bond between the probe tip and the probe body. Bently Nevada’s patented CableLoc design provides 220 N (50lb) of pull strength and securely attaches the probe cable to the probe tip. Connector protectors are recommended for use on the probe-to-extension cable connection, as well as on the cable-to-Proximitor Sensor connection. Connector protectors prevent most liquids from entering into the ClickLoc connectors and adversely affecting the electrical signal(2).



Ordering Information



330909 3300 NSv Probe, 3/8-24 UNF thread,with armor



Part Number-AA-BB-CC-DD-EE

A: Unthreaded Length Option

Order in increments of 0.1 in

Length configurations:

Maximum unthreaded length: 9.2 in

Minimum unthreaded length: 0.0 in

Example: 04 = 0.4 in

B: Overall Case Length Option

Order in increments of 0.1 in

Threaded length configurations:

Maximum case length: 9.9 in

Minimum case length: 0.8 in

Example: 2 4 = 2.4 in

C: Total Length Option

05

0.5 meter (20 in)

10

1.0 meter (39 in)

50

5.0 meters (16.4 feet)

70

7.0 meters (23.0 feet)

D: Connector and Cable-Type Option

01

Miniature coaxial ClickLoc connector

with connector protector, standard

cable

02

Miniature coaxial ClickLoc connector,

standard cable

11

Miniature coaxial ClickLoc connector

with connector protector, FluidLoc

cable

12

Miniature coaxial ClickLoc connector,

FluidLoc cable

E: Agency Approval Option

00

Not required

05

Multiple Approvals
