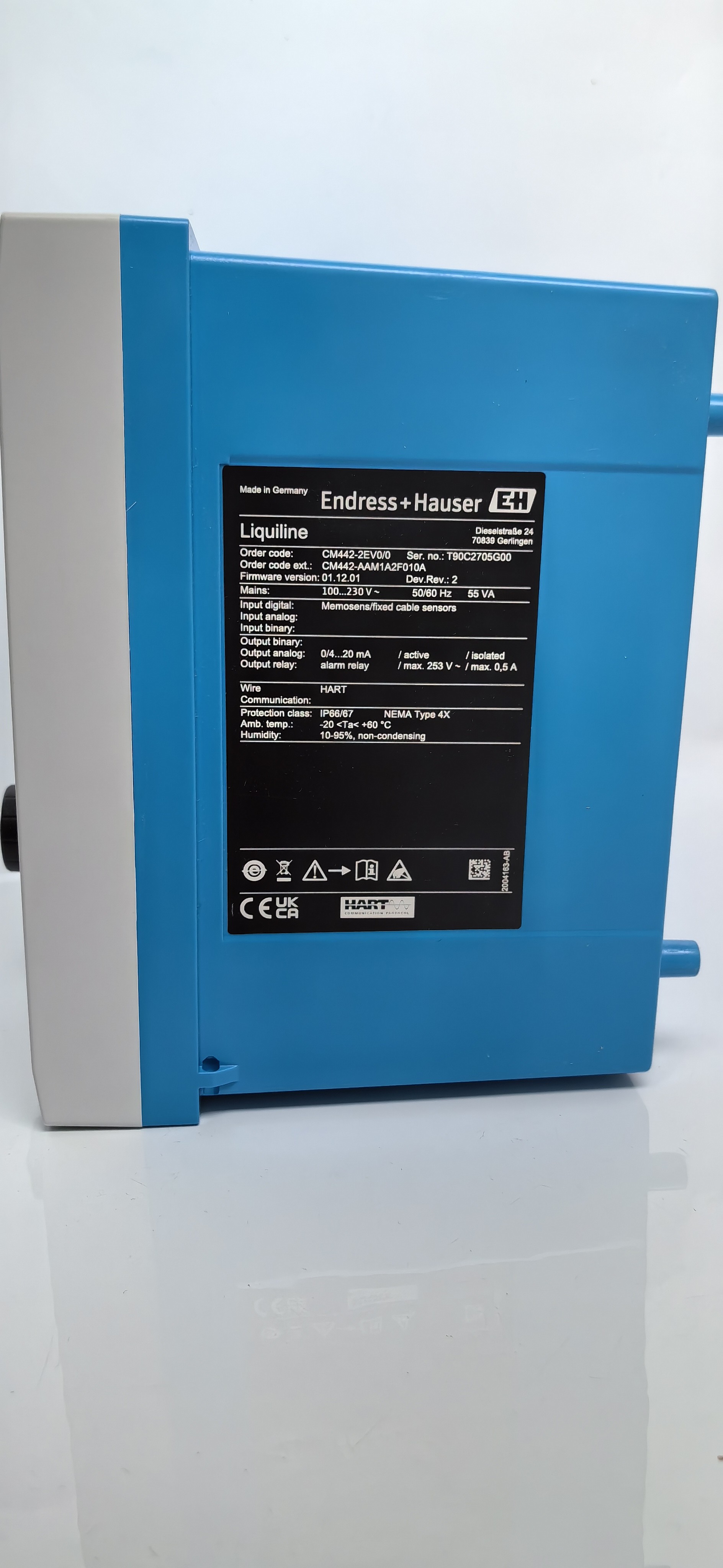

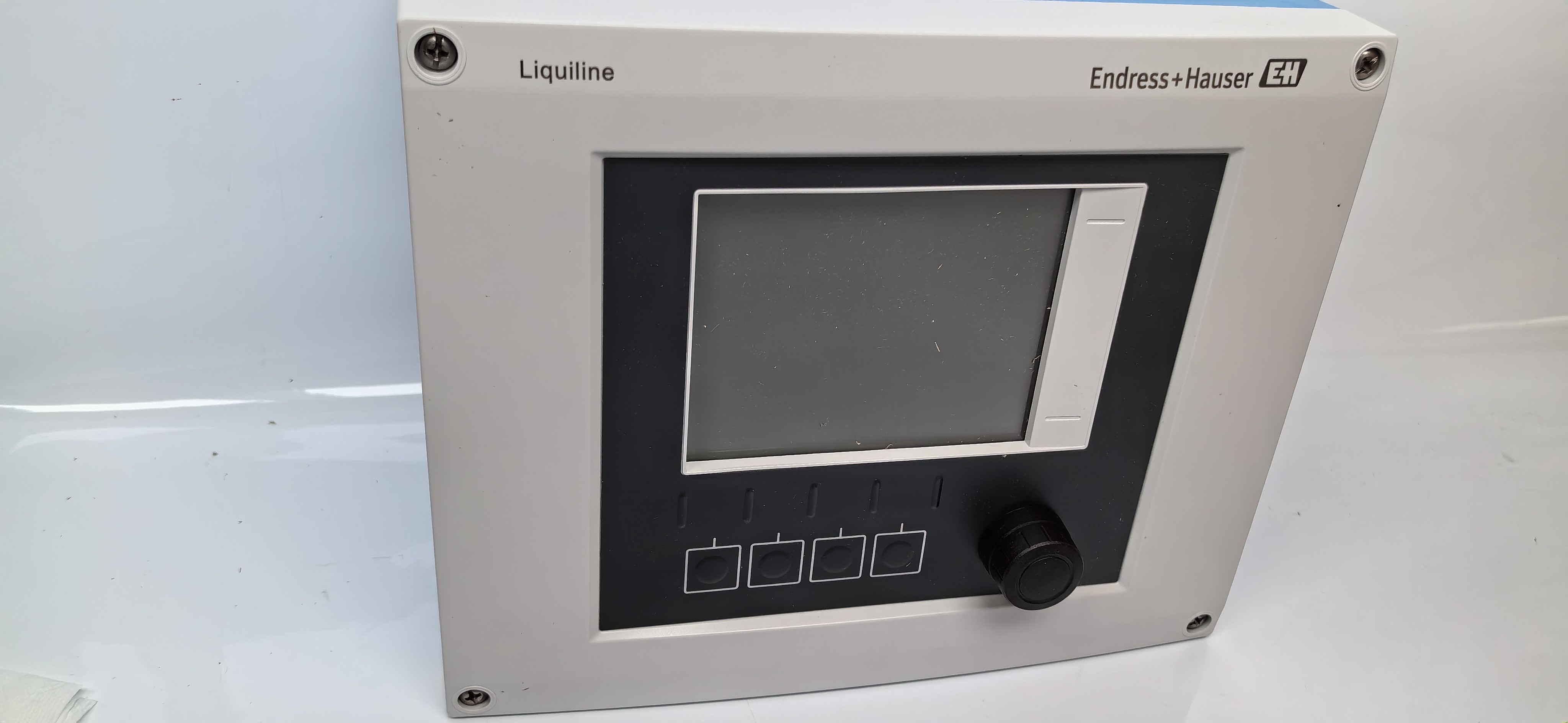

Product Description

• The Liquiline CM442 transmitter allows you to connect up to 2 Memosens sensors of your choice from over 12 measurement parameters. It offers automatic sensor recognition, easy operation, and standardized spare parts with all other devices of the Liquiline platform. With its inputs, outputs, controllers, and math modules, you can even control cleaning systems or dosing pumps. Heartbeat Technology helps you find the ideal balance between measuring point availability and maintenance costs.

  Liquiline CM442 is suitable for all industries and their utilities, such as:

  • Food & Beverages

  • Life Sciences

  • Power & Energy

  • Water & Wastewater

  • Chemicals

  • Marine

  It features the following communication protocols and interfaces:

  • 0/4...20 mA

  • HART

  • PROFIBUS DP

  • Modbus RS485/RTU

  • Modbus TCP

  • EtherNet/IP

  • PROFINET

  • Webserver

  The transmitter can be extended with a module whose explosion protection approvals, such as IECEx, ATEX, and CSA, allow the connection of sensors installed in hazardous areas.



  Benefits

  Clever simplicity:
  One controller for all parameters and applications, intuitive user interface, automatic sensor recognition, hot plug & play with pre-calibrated Memosens sensors.

  High flexibility:
  Universal modules for all parameters minimize spare part stock and allow for easy extension to up to 8 channels at any time.

  Seamless system integration:
  Unique portfolio of communication standards suits every distributed control system (DCS).

  Simple and safe commissioning:
  Saving configuration on SD card enables fast set-up on duplicate installations.

  Process control from a distance:
  Integrated web server that allows the operator to remotely view diagnostic data, perform configurations, or access device parameters in any web browser - even via Smartphone.

  Higher availability, lower costs:
  Heartbeat Technology enables status-oriented maintenance and easy verification of the entire measuring point and helps to carry out optimization measures.



  Application	Modular 4 wire controller Multichannel: 1/2 digital channels for Memosens protocol Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity Two sensors connectable in any combination Functionality modular extendable at any time Plug and play for modules and sensors
  Characteristic	Robust plastic housing All non-ex applications
  Design	2x Memosens input, 2 to 4x current output, Alarmrelay, 2x relay, SD card for software update and copy & paste of setup
  Material	Housing base: PC-FR Housing seal: EPDM
  Dimension	237 x 194 x 162 mm 9.33 x 7.64 x 6.38 inch
  Process temperature	-20 to 60 °C (0 to 140 °F)
  Input	1 to 2x Memosens digital input 2x 0/4 to 20mA input optional 2x Digital input optional
  Output / communication	2 to 8x 0/4 to 20 mA current outputs Alarmrelay, 2x relay, ProfibusDP, Modbus RS485, Modbus TCP, Ethernet
  Additional certifications	EAC, cCSAus, MCERTS







  Related Part Number:

  Complete model	Abbreviation model
  CM442-8AM1A2F210B	CM442-KP32/0
  CM442-AAM1A2F060A+AK	CM442-4NM3/0
  CM442R-AAM1A2F01+AK	CM442R-1MC7/0
  CM442-AAM1A2F060B+AK	CM442-77F4/0
  CM442-AAM1A2F061A+AK	CM442-6J67/0
  CM442-AAN1B6F010A+ABHH	CM442-17854/0
  CM442-17854/0	CM444-24M2/0
  CM442R-AAM2CCF06+AA	CM442R-4UN0/0
  CM442-AAM2A1FD10B+AK	CM442-PV78/0
  CM442-AAM1A1F010A	CM442-1139/0
  CM442-AAM2A3F010A	CM442-10L1/0
  CM442-AAM1A2F010A	CM442-2EV0/0
  CM442-AAM2A4F010A	CM442-2FT9/0
  CM442-AAM1A1F060A	CM442-1716/0
  CM442-AAM2A3F060A	CM442-1CF0/0
  CM442-AAM1A2F060A	CM442-2ER8/0
  CM442-AAM2A4F060A	CM442-2XQ4/0
  CM442-AAM1A1F011A	CM442-1035/0
  CM442-AAM2A3F011A	CM442-1P16/0
  CM442-AAM1A2F011A	CM442-2C73/0
  CM442-AAM2A4F011A	CM442-2ET9/0
  CM442-AAM1A1F061A	CM442-1F29/0
  CM442-AAM2A3F061A	CM442-2U24/0
  CM442-AAM1A2F061A	CM442-4PC2/0
  CM442-AAM2A4F061A	CM442-6XX0/0
  CM442-AAM1A1F012A	CM442-13E0/0
  CM442-AAM2A3F012A	CM442-1AR9/0
  CM442-AAM1A2F012A	CM442-35T6/0
  CM442-AAM2A4F012A	CM442-3R93/0
  CM442-AAM1A1F062A	CM442-1462/0
  CM442-AAM2A3F062A	CM442-27L8/0
  CM442-AAM1A2F062A	CM442-4FX4/0
  CM442-AAM2A4F062A	CM442-8R92/0
  CM442-AAN1A1FD10A	CM442-AQ61/0
  CM442-AAN2A3FD10A	CM442-1K440/0
  CM442-AAN1A2FD10A	CM442-AML0/0
  CM442-AAN2A4FD10A	CM442-1K458/0
  CM442-AAN1A1FD60A	CM442-HT10/0
  CM442-AAN2A3FD60A	CM442-1K465/0
  CM442-AAN1A2FD60A	CM442-FJ09/0
  CM442-AAN2A4FD60A	CM442-1K472/0
  CM442-AAN1A1FD11A	CM442-FR46/0
  CM442-AAN2A3FD11A	CM442-1K480/0
  CM442-AAN1A2FD11A	CM442-JJP0/0
  CM442-AAN2A4FD11A	CM442-1K497/0
  CM442-AAN1A1FD61A	CM442-1K4A9/0
  CM442-AAN2A3FD61A	CM442-1K4C3/0
  CM442-AAN1A2FD61A	CM442-9NR0/0
  CM442-AAN2A4FD61A	CM442-1K4D0/0
  CM442-AAN1A1FD12A	CM442-V0E1/0
  CM442-AAN2A3FD12A	CM442-1K4E8/0
  CM442-AAN1A2FD12A	CM442-1K4F9/0
  CM442-AAN2A4FD12A	CM442-1K4H3/0
  CM442-AAN1A1FD62A	CM442-DTJ7/0
  CM442-AAN2A3FD62A	CM442-1K4J8/0
  CM442-AAN1A2FD62A	CM442-1K4K5/0
  CM442-AAN2A4FD62A	CM442-1K4L2/0
