10Nm To 32000Nm AUMA Actuator SA And SAR Auma Sa Actuators
Product Details:
| Place of Origin: | Germany |
| Brand Name: | AUMA |
| Certification: | GE |
| Model Number: | SA 25.1 – SA 35.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard carton packing |
| Delivery Time: | on request |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Product Name: | Actuators | Product Type: | SA And SAR |
|---|---|---|---|
| Manufacturer：: | AUMA | Warranty:: | One-year |
| Highlight: | 10Nm AUMA Actuator,32000Nm AUMA Actuator,auma sa actuators |
||
Product Description

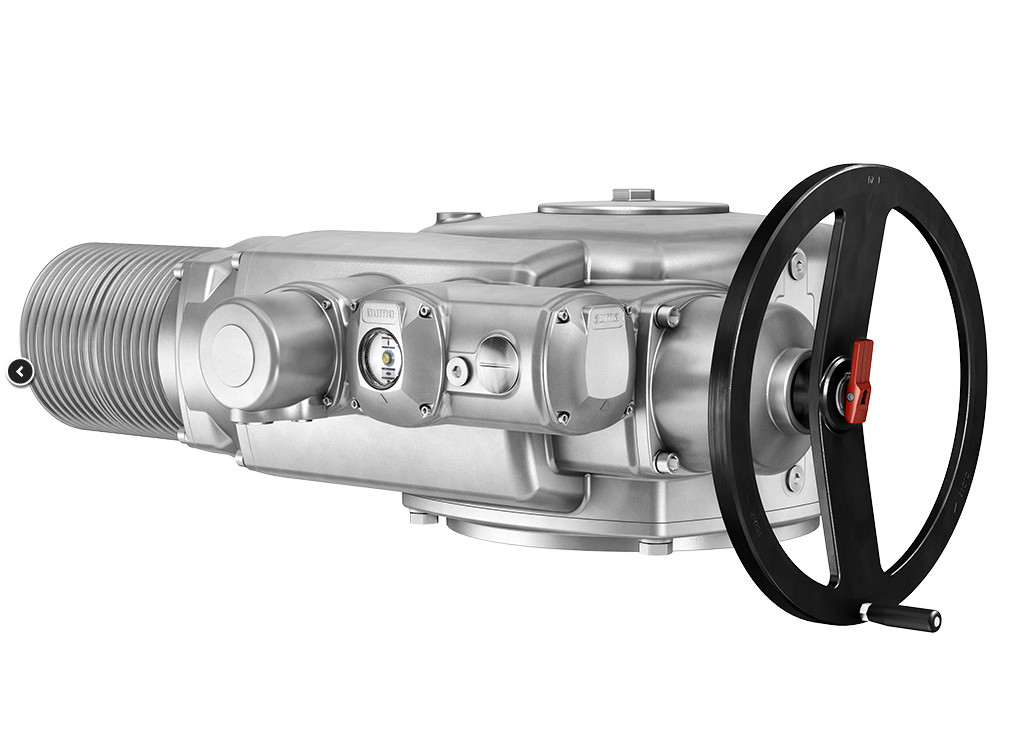

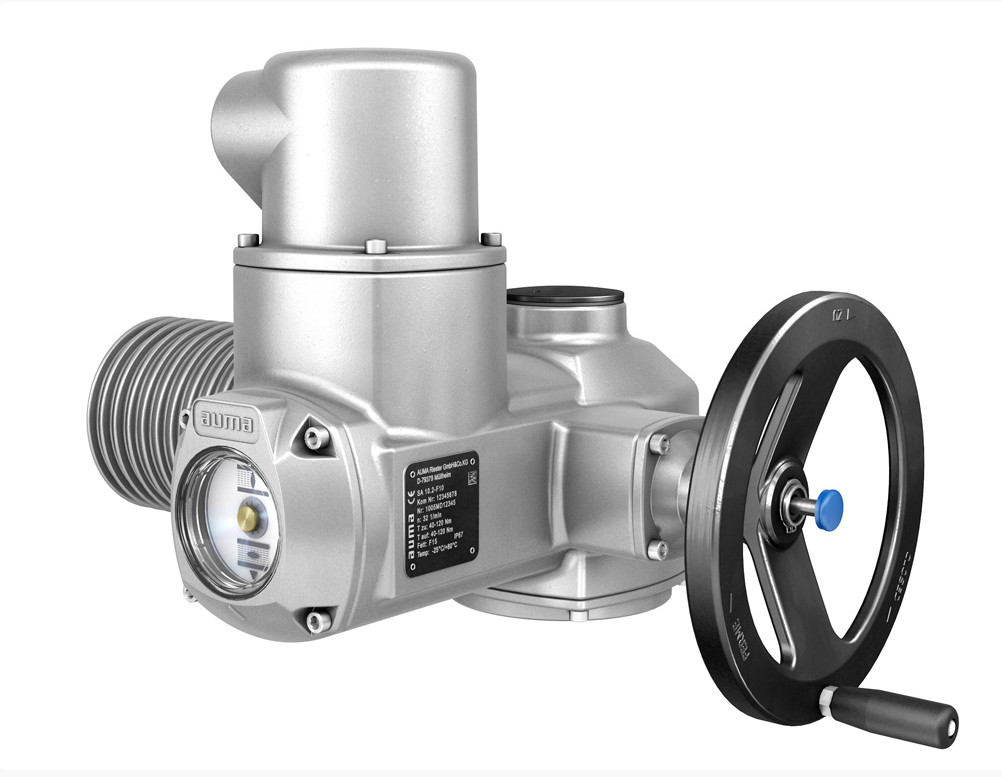

AUMA Actuators SA and SAR
Actuators of the SA type range for open-close duty and positioning duty are rated for class A and B or types of duty S2 - 15 min. A special version for longer running is available for the S2 - 30 min duty.
The modulating actuators of the SAR range are rated for class C or types of duty S4 - 25 %. Special versions for S4 - 50 % and S5 - 25 % are also available.
Actuators of type range SA/SAR can be combined with various controls from simple OPEN-CLOSE control to the micro-controlled version with logging of operating data or fieldbus interface.
Design features SA
- Torque range from 10 Nm to 32,000 Nm
- Output speeds from 4 to 180 rpm
- Limit and torque sensing
- Available with 3-ph AC, 1-ph AC and DC motors
- Handwheel for manual operation
Ambient conditions
- High enclosure protection
- High quality corrosion protection
- Wide ambient temperature ranges
Interfaces
- Electrical connection via AUMA plug/socket connector (optionally terminals)
- Cable entries in different versions
- Output drive types according to ISO and DIN Standards
Design features SAR
- Torque range from 15 Nm to 4,000 Nm
- Modulating torque range from 15 Nm to 1,600 Nm
- Max. number of starts 1,200 c/h
- Output speeds from 4 to 90 rpm
- Limit and torque sensing
- Available with 3-ph AC, 1-ph AC motors
- Handwheel for manual operation
Options
- Intermediate position switches
- Switches in tandem version
- Remote position transmitter
- Magnetic limit and torque Transmitter
- Mechanical position indicator
- Functional safety: Up to SIL 2 in selected configurations
|
Dimensions |
SA 25.1 |
SA 35.1 |
||
|
Output speed 1/min |
63-90 |
125-180 |
16-90 |
|
|
EN ISO 5210 (DIN 3210) |
F25 (G4) |
F35(G6) |
||
|
A1 |
100 |
160 |
||
|
Az3 |
242 (269) |
301 (328分 |
||
|
A3 |
282(309) |
341 (368) |
||
|
A4 |
105 |
223 |
||
|
A5 |
135 |
170 |
||
|
A6 |
116 |
116 |
||
|
A7 |
39 |
39 |
||
|
B1 |
418(445) |
537(564³) |
||
|
B2 |
170 |
225 |
||
|
C1 |
771 686 |
1029 |
||
|
Ω |
202 |
257 |
||
|
0 D |
230 |
265 |
||
|
E |
150 |
160 |
||
|
E2 |
115 |
115 |
||
|
H1 |
150 |
203 |
||
|
H2 |
162 |
214 |
||
|
H4 |
312 |
417 |
||
|
P1² |
M25x1,5 Pg 21 |
M25x1,5 Pg 21 |
M25x1.5 |
Pg 2 |
|
P22 |
M20x1,5 Pg 13,5 |
M20x1,5 Pg13.5 |
M20x1,5 |
Pg 13.5 |
|
P3² |
M32x1,5 Pg 29 |
M32x1,5 Pg2g |
M32x1,5 |
Pg 2g |
|
P4² |
M32x1,5 Pg 2g |
M32x1,5 Pg 29 |
M50x 1,5 |
Pg 42 |
|
BB1 min. |
70 |
70 |
||
|
BB2 min. |
30 |
30 |
||
|
d1 |
300 |
415 |
||
|
0 d2 f12 |
200(160) |
260 (220) |
||
|
d3 |
254 |
356 |
||
|
d4 |
8xM16 |
8xM30 |
||
|
h |
|
5 |
5 |
|
Related Part Number:
|
Type |
Output |
Setting range for tripping torque |
Number of starts |
Valve mounting flange |
||
|
|
rpm |
Nm |
1/h |
EN ISO 5210 |
DIN 3210 |
|
|
SA 07.2 |
4-180 |
10-30 |
60 F07 or F10 |
F07 or F10 |
G0 |
|
|
SA 07.6 |
4-180 |
20-60 |
60 |
F07 or F10 |
G0 |
|
|
SA 10.2 |
4-180 |
40-120 |
60 |
F10 |
G0 |
|
|
5A 143 |
4-180 |
100-250 |
60 |
F14 |
G1/2 |
|
|
SA 14.6 |
4-180 |
200-500 |
60 |
F14 |
G1/2 |
|
|
5A167 |
4-180 |
400-1,000 |
60 |
F16 |
G3 |
|
|
SA 25.1 |
4-90 |
630-2,000 |
40 |
F25 |
G4 |
|
|
SA 30.1 |
4-90 |
1,250-4,000 |
40 |
F30 |
G5 |
|
|
5A 35.1 |
4-45 |
2,500-8,000 |
30 |
F35 |
G6 |
|
|
5A 40.1 |
4-32 |
5,000-16,000 |
20 |
F40 |
G7 |
|
|
5A48. |
4-16 |
10,000-32,000 |
20 F48 |
F48 |
|
|
|
TyPe |
Output |
Setting range for |
Maximum torque |
Number of starts |
Valve mounting flange |
|
|
|
rpm |
Nm |
Nm |
1/h |
EN ISO 5210 |
DIN 3210 |
|
SAR 07.2 |
4-90 |
15-30 |
15 |
1,500 |
F07 or F10 |
G0 |
|
SAR 07.6 |
4-90 |
30-60 |
30 |
1.50 |
F07 or F10 |
G0 |
|
SAR 10.2 |
4-90 |
60-120 |
60 |
1,500 |
F10 |
G0 |
|
5AR 14.2 |
4-90 |
120-250 |
120 |
120 |
F14 |
G1/2 |
|
5AR 14.6 |
4-90 |
250-500 |
200 |
1,200 |
F14 |
G1/2 |
|
SAR 16.2 |
4-90 |
500-1.000 |
400 |
900 |
F16 |
G3 |
|
SAR 25.1 |
4-11 |
1,000-2,000 |
800 |
300 |
F25 |
G4 |
|
SAR 30.1 |
4-11 |
2,000-4,000 |
1,600 |
300 |
F30 |
G5 |
|
Type |
0perating |
Setting range for tripping torque |
Number of starts |
Valve mounting flange |
||
|
|
s |
Nm |
1/h |
Standard (ISO 5211) |
Option(EN ISO 5211) |
|
|
5Q 05.2 |
4-32 |
50-150 |
60 |
F05/F07 |
F07,F10 |
|
|
5Q 07.2 |
4-32 |
100-300 |
60 |
F05/F07 |
F07,F10 |
|
|
SQ 10.2 |
8-63 |
200-600 |
60 |
F10 |
F12 |
|
|
5Q 12.2 |
16-63 |
400-1,200 |
60 |
F12 |
F10,F14,F16 |
|
|
5Q 14.2 |
24-100 |
800-2,400 |
60 |
F14 |
F16 |
|
|
Type |
Operating |
Setting range for |
Maximum torque for |
Number of starts |
Valve mounting flange |
|
|
|
s |
Nm |
Nm |
1/h |
Standard (SO 5211) |
Option (EN ISO 5211) |
|
5QR 05.2 |
8-32 |
75-150 |
75 |
1,500 |
F05/F07 |
F07,F10 |
|
5QR 07.2 |
8-32 |
150-300 |
150 |
1,500 |
F05/F07 |
F07,F10 |
|
5QR 10.2 |
11-63 |
300-600 |
300 |
1,500 |
F10 |
F12 |
|
5QR 12.2 |
16-63 |
600-1200 |
600 |
1,500 |
F12 |
F10,F14,F16 |
|
5QR 14.2 |
36-100 |
1,200-2.400 |
1200 |
1500 |
F14 |
F16 |
