Conductive PC ABS Endress Hauser Instruments Liquisys CLM253-CD0005
Product Details:
| Place of Origin: | Germany |
| Brand Name: | Endress+Hauser |
| Certification: | CSA Gen. Purpose. |
| Model Number: | CLM253-CD0005 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard carton packing |
| Delivery Time: | on request |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Material: | PC/ABS | Dimension: | 247x170x115 Mm |
|---|---|---|---|
| Measuring Principle: | Conductive | Application: | Water, Waste Water, Process |
| Characteristic: | 4-wire Transmitter With A Two-line Display | Design: | Conductivity Transmitter In A PC/ABS-field Housing |
| Input: | One-channel Transmitter | Output / Communication: | 0/4-20mA, Hart, Profibus. |
| Highlight: | Conductive Endress Hauser Instruments,PC ABS Endress Hauser Instruments,Liquisys CLM253 - CD0005 |
||
Product Description

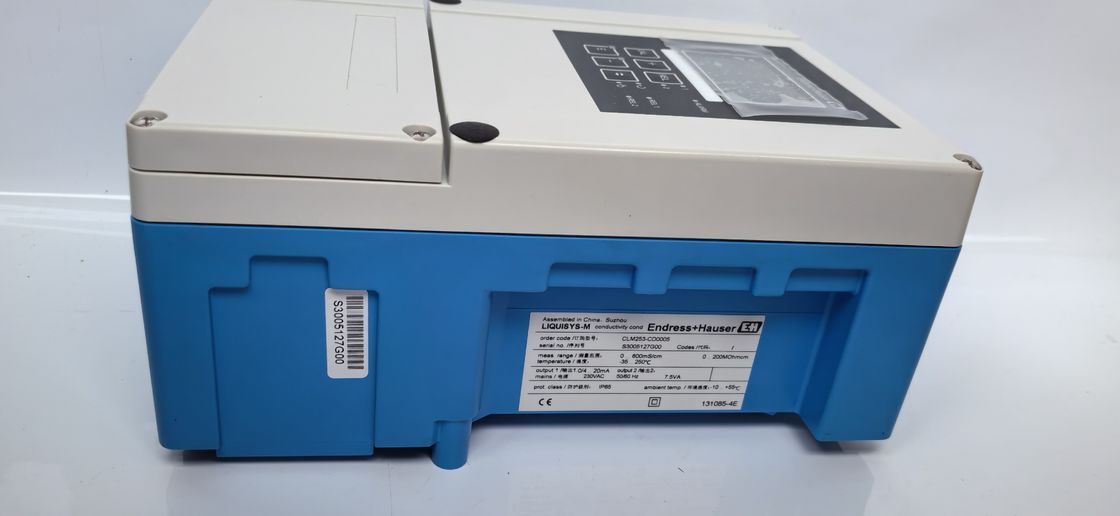

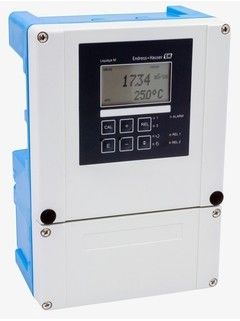

Endress Hauser transmitter Liquisys CLM253-CD0005
SPECIFICATIONS
Measuring principle:Conductive
Application:Water, waste water, process
Characteristic:4-wire transmitter with a two-line display
Design:Conductivity transmitter in a PC/ABS-field housing
Material:PC/ABS
Dimension:247x170x115 mm
Temperature sensor:Display and current output
Ex certification:No
Ingress protection:IP65
Input:One-channel transmitter
Output / communication:0/4-20mA, Hart, Profibus.
Additional certifications:CSA Gen. Purpose.
Field of application
Liquisys CLM253 is a standard transmitter for all analog conductivity sensors. It improves your operational safety thanks to continuous plausibility, process and sensor checks. Select from numerous hardware and software modules, such as relays or fieldbus communication, to adapt it exactly to your measuring task. This modularity also allows you to upgrade the transmitter at any time. A simple menu and calibration make configuration and operation fast and easy.
The Liquisys CLM253 transmitter works with all analog conductivity sensors in non-hazardous areas, for example in these industries and their utilities:
- Chemicals
- Food & Beverages
- Life Sciences
- Power & Energy
- Water &Wastewater
- Primaries & Metal
Liquisys CLM253 features the following protocols and interfaces:
- 0/4...20 mA
- HART
- PROFIBUS DP
- PROFIBUS PA
Benefits
More operational safety: Continuous process check system, customized alarm configuration, calibration plausibility check.
Reliable oxygen control: Current input for flow rate monitoring with controller shut off or for feedforward control.
Easy to operate and service: Simple single-point calibration in air, air-saturated water or in the medium, direct access for manual contact control.
Reduced maintenance: Automatic cleaning function (with Chemoclean) triggered by alarm or limit switch.
Fit for every application: Numerous extensions, e.g. P(ID) controller, timer, etc., allow for flexible adaption to all processes.
