Ultrasonic Endress Hauser Measurement Time-Of-Flight Prosonic FMU30-AAHEAAGGF
Product Details:
| Place of Origin: | Germany |
| Brand Name: | Endress+Hauser |
| Certification: | ATEX, CSA C/US, IEC Ex, NEPSI |
| Model Number: | FMU30-AAHEAAGGF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiable |

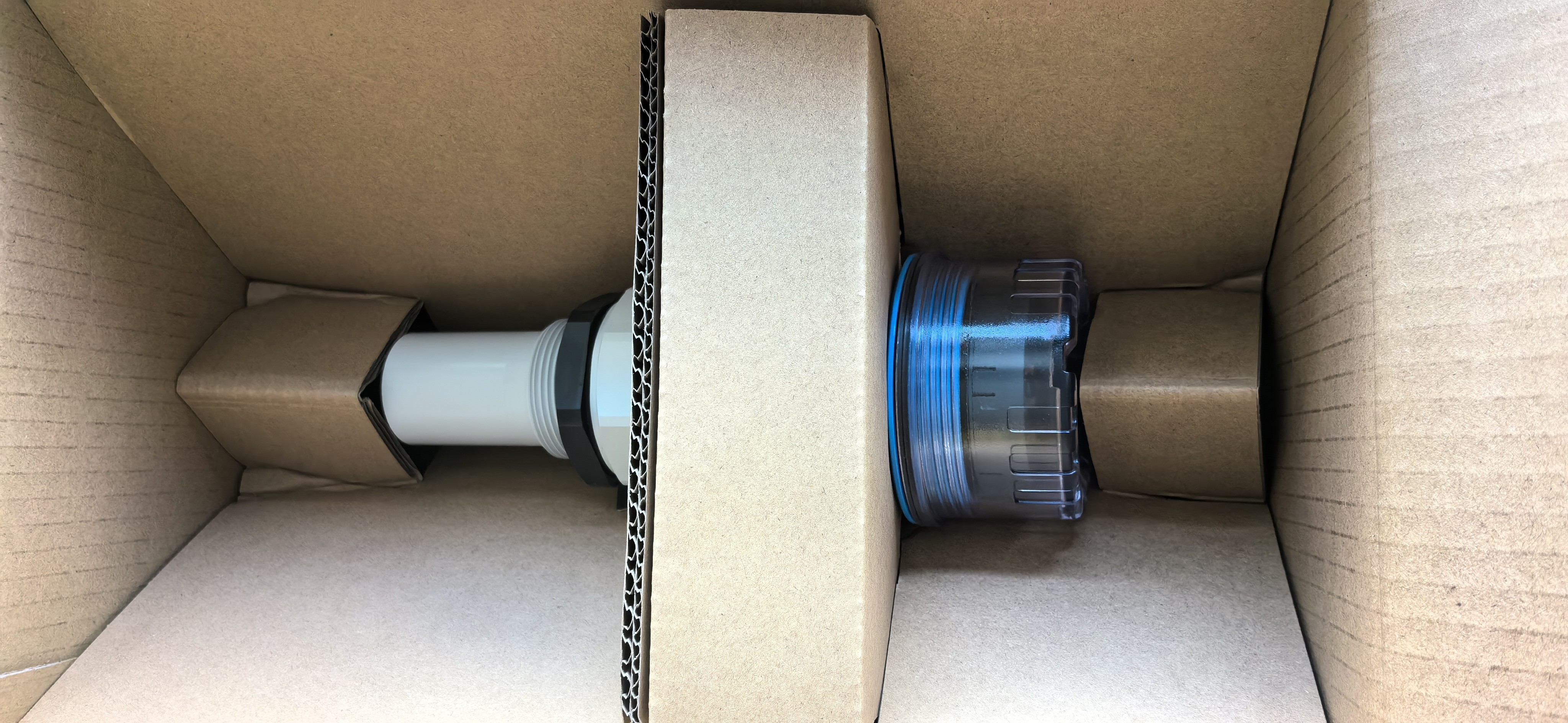

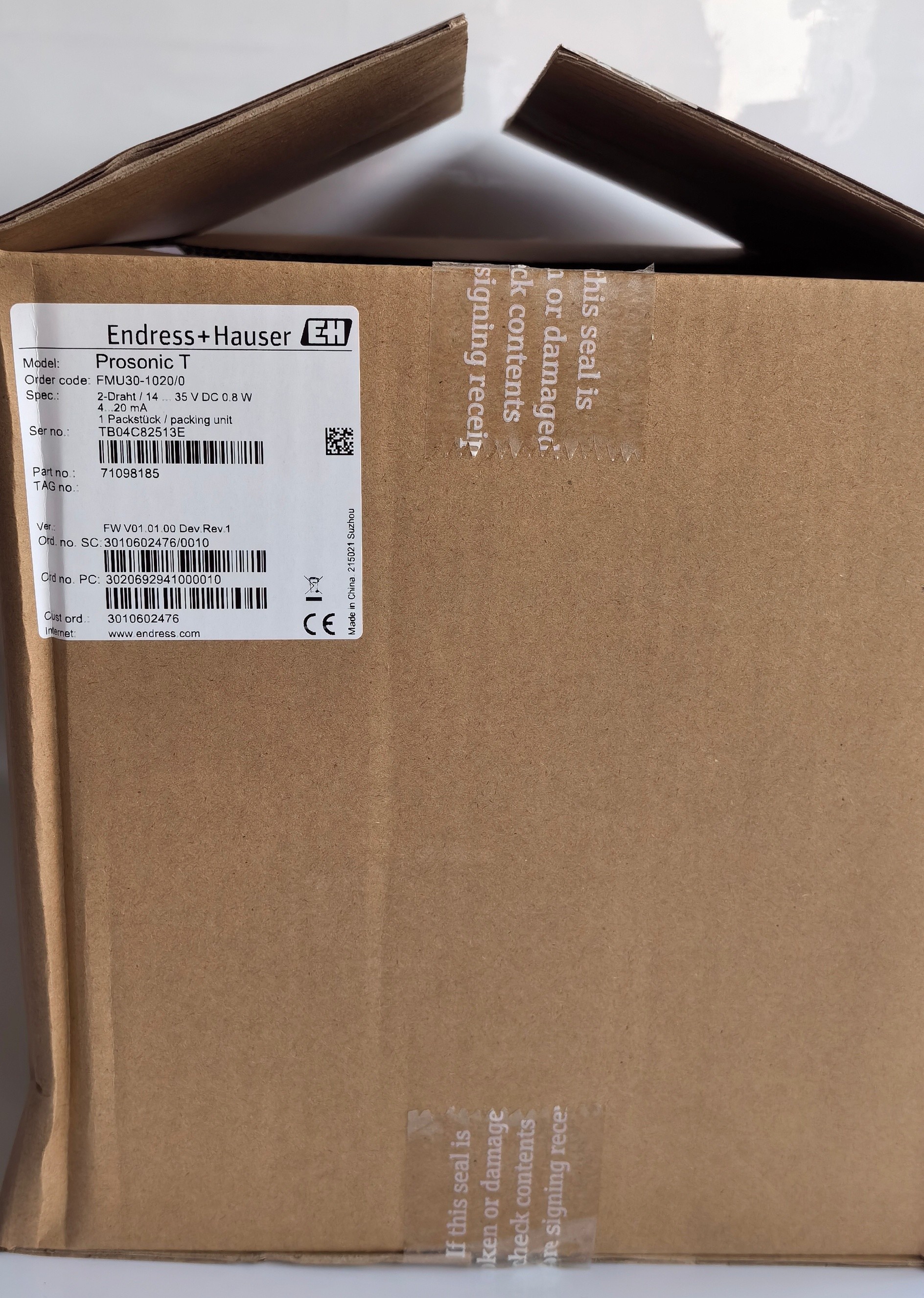

| Packaging Details: | standard carton packing |
| Delivery Time: | on request |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Supply / Communication: | 2-wire | Measuring Principle: | Ultrasonic |
|---|---|---|---|
| Characteristic / Application: | Compact Ultrasonic Transmitter | Ambient Temperature: | -20 °C ... 60 °C (-4 °F ... 140 °F) |
| Blocking Distance: | 1 1/2": 0.25 M (0.8 Ft) 2":0.35 M (1.15 Ft) | Main Wetted Parts: | PP/EPDM |
| Communication: | 4...20 MA | Accuracy: | +/- 3 Mm Or +/- 0,2 % Of Set Measuring Range |
| Highlight: | Ultrasonic Endress Hauser Instruments,3mm Endress Hauser Instruments,FMU30-AAHEAAGGF |
||
Product Description

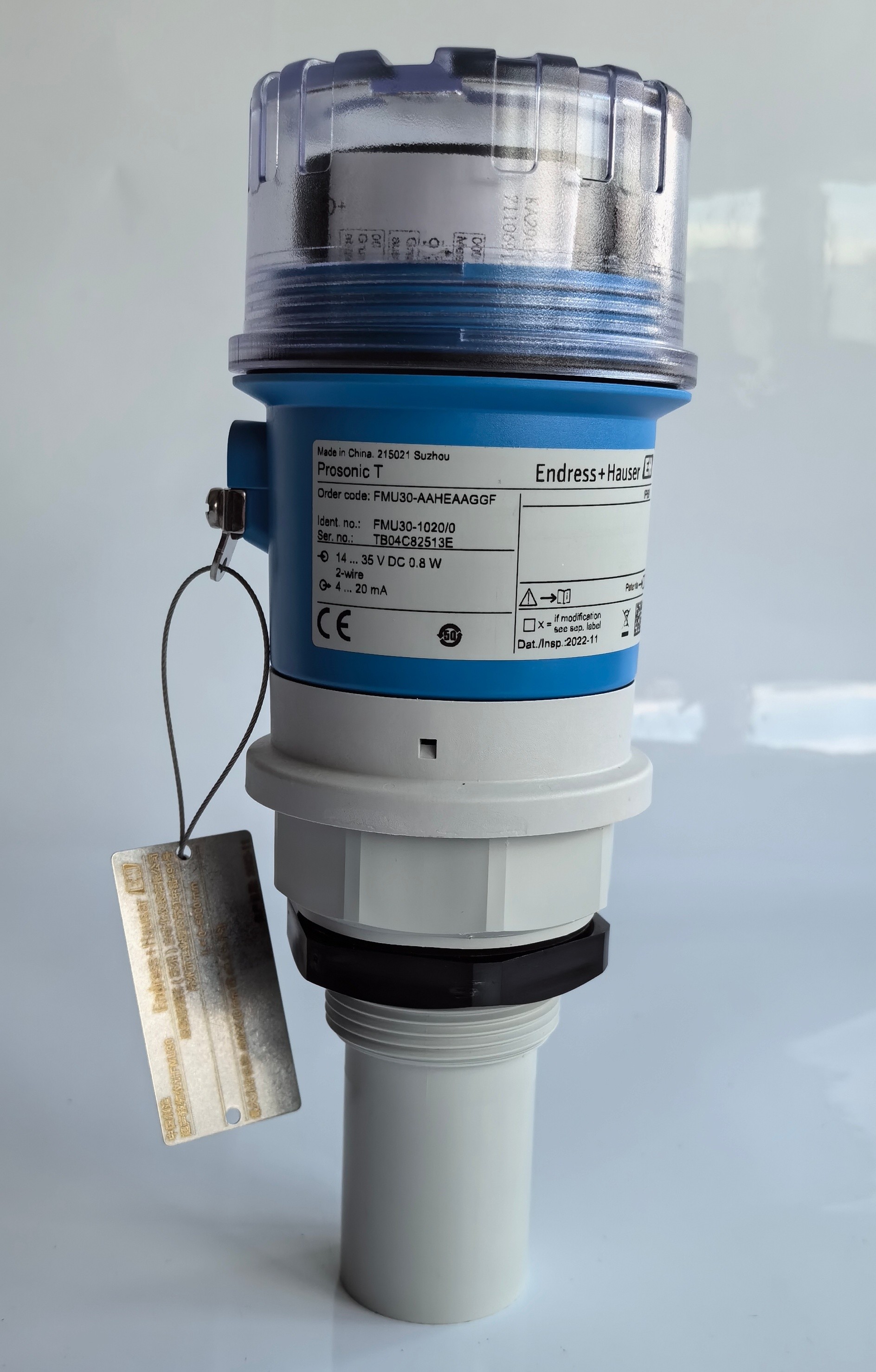

Endress Hauser Ultrasonic measurement Time-of-Flight Prosonic FMU30-AAHEAAGGF
SPECIFICATIONS
Measuring principle:Ultrasonic
Characteristic / Application:Compact ultrasonic transmitter
Supply / Communication:2-wire
Accuracy:+/- 3 mm or +/- 0,2 % of set measuring range
Ambient temperature:-20 °C ... 60 °C(-4 °F ... 140 °F)
Process temperature:-20 °C ... 60 °C(- 4°F ... 140 °F)
Process pressure / max. overpressure limit:0.7 bar ... 3 bar abs(10 psi ... 44 psi)
Main wetted parts:PP/EPDM
Process connection:G / NPT 1 1/2"；G / NPT 2"
Blocking distance:1 1/2": 0.25 m (0.8 ft)；2":0.35 m (1.15 ft)
Communication；4...20 mA
Certificates / Approvals；ATEX, CSA C/US, IEC Ex, NEPSI
Options:Accessory Enclosed:UNI flange 2" ... 4"
Field of application
The range of applications extends from monitoring levels in sewage treatment plants and process water tanks to applications for loading, storage and buffer tanks. FMU30 ultrasonic sensor offers proven software algorithms and all warning and alarm messages are shown on the four-line plain text display and guarantee fast remedy of problems. The envelope curve can also be shown on the display. As the analysis results are displayed directly on-site, this ensures quick and accurate error diagnostics.
Two-wire instrument for continuous non-contact level and flow measurement.
Process connection: Thread
Temperature: -20 to +60°C (-4 to +140°F)
Pressure: +0.7 to +3bar (+10 to +44psi)
Maximum measuring distance:Sensor 1½" for liquids 5m (16ft) and for bulk solids 2m (6.6ft),Sensor 2" for liquids 8m (26ft)and for bulk solids 3.5m (11ft)
Blocking distance:Sensor 1½" 0.25m (0.8ft),Sensor 2" 0.35m (1.15ft)
International explosion protection certificates
Benefits
Quick and simple commissioning via menu-guided onsite operation with four-line plain text display, 7 languages selectable
Envelope curves on the on-site display for simple diagnosis
Linearization function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate
Non-contact measurement method minimizes service requirements
Installation possible from thread G 1½ or 1½ NPT upwards
Integrated temperature sensor for automatic correction of the temperature dependent sound velocity
