Product Description

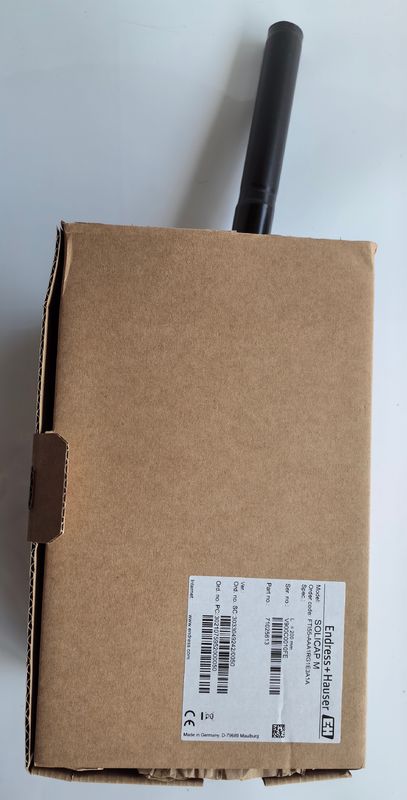

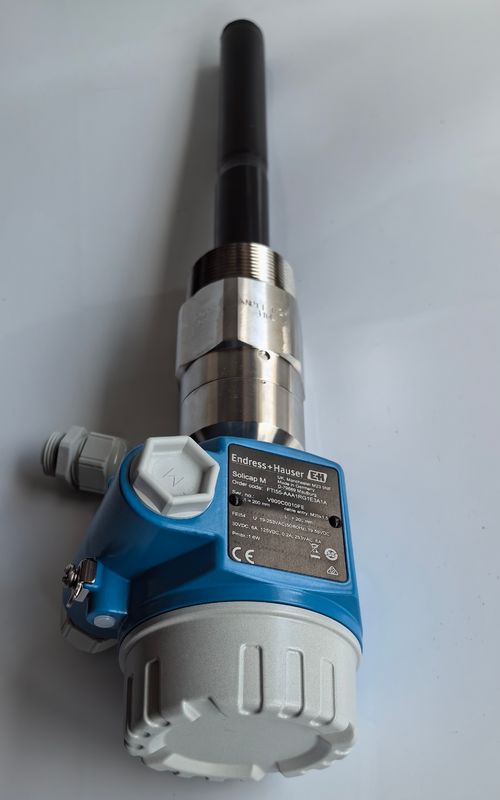

Endress Hauser Capacitance Point level detection Solicap FTI55-AAA1RG1E3A1A

SPECIFICATIONS

• Measuring principle:Capacitive Solid

• Characteristic / Application:Fully / partly isulated rod probe for small-grain / large-grain bulk solids；Simple calibration；Suitable for abrasive media；Very robust probe

• Specialities:Inactive length；Active build-up compensation；High lateral loading；Extremely robust probe

• Supply / Communication:19 ... 253V AC；10 ... 55V DC-PNP；19...253V AC bzw 10...55V DC；8/16mA, 11 ... 36V DC；PFM；3-wire

• Ambient temperature:-50°C ... 70°C；(-58°F ... 158°F)

• Process temperature:-50°C ... 180°C(-58°F ... 356°F)

• Process pressure / max. overpressure limit:Vacuum ... 25 bar(Vacuum ... 362 psi)

• Main wetted parts:PE, PPS, 316L, Steel

• Process connection:Thread R1 1/2, NPT1 1/2；Flanges from DN50.../ASME 2".../JIS...

• Sensor length:0.2m ... 4m(8" ... 157")

  Inactive length: 0.1m ...1m(2" ... 39")

• Communication:2- wire 19-253 VAC；DC PNP；Relais DPDT；PFM；3-wire；8/16 mA

• Certificates / Approvals:ATEX, FM, CSA, IEC Ex, JPN Ex, NEPSI

• Safety approvals:SIL

• Design approvals:EN 10204-3.1

• Components:PFM: FTC325, FTC625, FTC470Z, FTC471Z:3-wire: FTC325

• Application limits:DK min 2

Field of application

Solicap FTI55 is a fully/partly insulated and robust rod probe for point level detection of fine-grained to coarse-grained bulk solids. It offers maximum reliability due to its active build-up compensation and is suited for a wide range of applications thanks to numerous certificates and approvals. Due to its robust construction, it can also be used to provide accurate measurements in applications with very high lateral loads up to 300Nm.

Benefits

Highest safety and reliability due to robust design for demanding process conditions

Cost savings thanks to easy and fast commissioning as calibration is performed at the press of a button

Universal application thanks to wide range of certificates and approvals

Two-stage overvoltage protection against static discharges from the silo

Active build-up compensation for bulk solids with caking tendency (under development)

Increased safety due to permanent automatic monitoring of electronics

Reduction in storage costs thanks to easy-to-shorten rod model (for partial insulation) and rope model (for partial and full insulation)
