Digital Endress And Hauser Flow Meter ORP Sensor 12mm Memosens CPS12D-7PA21
Product Details:
| Place of Origin: | Germany |
| Brand Name: | Endress+Hauser |
| Certification: | With ATEX, IECEx, CSA C/US, NEPSI, Japan Ex and INMETRO approvals for use in hazardous areas Zone 0, Zone 1 and Zone 2 |
| Model Number: | CPS12D-7PA21 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiable |

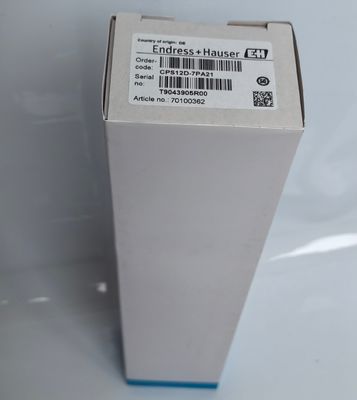

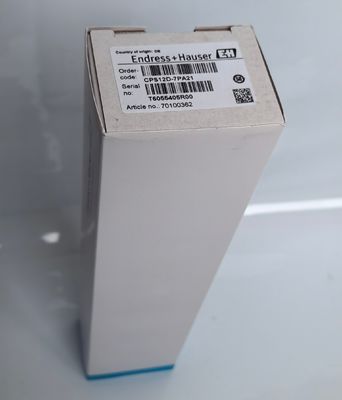

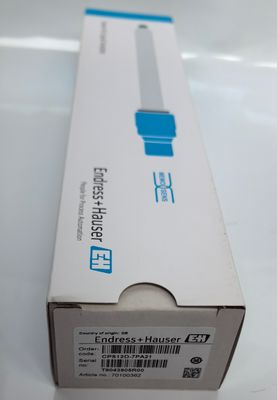

| Packaging Details: | standard carton packing |
| Delivery Time: | on request |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Material: | Sensor Shaft: Glass To Suit Process ORP Measuring Element: Platinum Or Gold Metal Lead: Ag/AgCl Aperture: Ring-shaped PTFE Diaphragm, Sterilizable O-ring: FKM Process Coupling: PPS Fibre-glass Reinforced Nameplate: Ceramic Metal Oxide | Dimension: | Diameter: 12 Mm (0.47 Inch) Shaft Lengths: 120, 225 And 360 Mm (4.72, 8.86 And 14.17 Inch) |
|---|---|---|---|
| Measuring Principle: | Gel Compact Electrode With Teflon Junction And Double Gel Reference Measuring Part As Gold-pin Or Platinum Ring | Application: | Long-term Monitoring And Limit Control In Processes With Stable Process Conditions Water Treatment |
| Characteristic: | Digital ORP Sensor For Standard Applications In Process Technology And Environmental Engineering With Dirt-repellent PTFE Junction And Integrated Temperature Sensor | Design: | All Shaft Lengths With Temperature Sensor Advanced Gel Technology |
| Process Temperature: | -15 To 135 °C (5 To 275 °F) | Temperature Sensor: | NTC 30K |
| Highlight: | Digital endress and hauser flow meter,ORP sensor 12mm,CPS12D 7PA21 |
||
Product Description

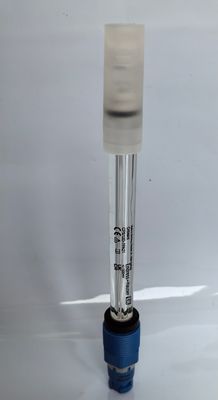

Endress Hauser Digital ORP sensor Memosens CPS12D-7PA21
SPECIFICATIONS
Measuring principle:Sensor ORP / Redox
Application:Long-term monitoring and limit control in processes with stable process conditions Water treatment
Characteristic:Digital ORP sensor for standard applications in process;technology and environmental engineering with dirt-repellent PTFE junction and integrated temperature sensor
Measurement range:-1500 mV to +1500 mV
Measuring principle:Gel compact electrode with teflon junction and double gel reference Measuring part as gold-pin or platinum ring
Design:All shaft lengths with temperature sensor Advanced gel technology
Material:Sensor shaft: Glass to suit process ORP measuring element: Platinum or gold Metal lead: Ag/AgCl Aperture: Ring-shaped PTFE diaphragm, sterilizable O-ring: FKM Process coupling: PPS fibre-glass reinforced Nameplate: ceramic metal oxide
Dimension:Diameter: 12 mm (0.47 inch) Shaft lengths: 120, 225 and 360 mm (4.72, 8.86 and 14.17 inch)
Process temperature:-15 to 135 °C(5 to 275 °F)
Process pressure:0.8 to 17 bar (11.6 to 246.5 psi) absolute
Temperature sensor:NTC 30K
Ex certification:With ATEX, IECEx, CSA C/US, NEPSI, Japan Ex and INMETRO approvals for use in hazardous areas Zone 0, Zone 1 and Zone 2
Connection:Inductive, digital connection head with Memosens 2.0 technology
Ingress protection:IP68
Field of application
Memosens CPS12E is the digital all-round ORP sensor. It measures reliably even in harsh applications or hazardous areas. Designed for low maintenance and a long operating life, the ORP sensor offers you best value for money. Memosens CPS12E features Memosens 2.0 digital technology that provides the perfect basis for predictive maintenance thanks to extended storage of calibration and process data. The plug & play principle of Memosens allows for easy operation and more process uptime.
-
Long-term monitoring and limit monitoring of processes with stable process conditions:
- Chemical industry
- Pulp & paper industry
- Power plants
- Incineration plants
-
Water & wastewater treatment:
- Drinking water
- Cooling water
- Well water
- Wastewater treatment plants
With ATEX, IECEx, CSA C/US, NEPSI, Japan, INMETRO approvals for use in hazardous areas, zones 0, 1 and 2.
Benefits
Robust, low maintenance ORP sensor: Large, dirt-repellent PTFE junction protects from soiling by the medium. Long poison diffusion path prevents poisoning of the electrode reference.
Suitable for harsh applications: Gold pin or platinum cap cover the full range of oxidizing or reducing media. Shaft glass ensures high chemical stability. The sensor is pressure stable up to 17 bar (246.5 psi) absolute.
Memosens 2.0 technology enables the sensor to store more process and calibration data. It lays the basis for IIoT services and predictive maintenance.
Extremely reliable measurement with to non-contact, inductive signal transmission results in increased process safety.
Lab calibration and fast sensor replacement on site allow for minimized process downtimes, reducing operating costs.
