50M Bently Nevada 3500 System Tachometer Module 3500/50-01-00 288062-02 133442-01
| Place of Origin | USA |
|---|---|
| Brand Name | Bently Nevada |
| Certification | CE |
| Model Number | 3500/50-01-00 288062-02 133442-01 |
| Document | 3500-50M Tachometer Module ...38.pdf |
| Minimum Order Quantity | 1pc |
| Price | negotiable |
| Packaging Details | standard carton packing |
| Delivery Time | 12-16weeks |
| Payment Terms | T/T |
| Supply Ability | 100pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Signal | Each 3500/50M Tachometer Module Accepts Up To Two Transducer Signals From Proximity Probe Transducers Or Magnetic Pickups. | Input Signal Range | +10.0 V To -24.0 V |
|---|---|---|---|
| Input Impedance | 20 K Ω (standard) 40 K Ω (TMR) 7.15 K Ω (Internal Barrier) | Power Consumption | 5.8 Watts, Typical |
| Dimensions | 241.3 Mm X 24.4 Mm X 99.1 Mm | Weight | 0.20 Kg (0.44 Lb) |
| Monitor Module | 1 Full-height Front Slot | I/O Modules | 1 Full-height Rear Slot |
| Highlight | 50M Bently Nevada 3500 System,Bently Nevada 3500 System 288062-02,tachometer module 3500/50-01-00 |
||
Product Description

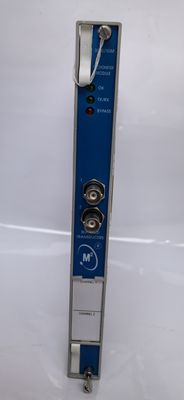

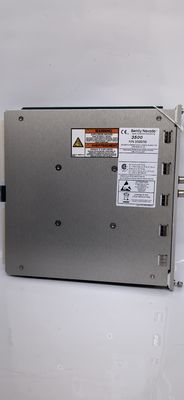

Bently Nevada 3500/50M Tachometer Module 3500/50-01-00 288062-02 133442-01
Description
The 3500/50M Tachometer Module is a 2-channel module that accepts input from proximity probes or magnetic pickups to determine shaft rotative speed, rotor acceleration, or rotor direction. The module compares these measurements against user-programmable alarm setpoints and generates alarms when the setpoints are violated.
The Tachometer Module is programmed using the 3500 Rack Configuration software. The following configuration options are available:
Speed Monitoring, Setpoint Alarming and Speed Band Alarming
Speed Monitoring, Setpoint Alarming and Zero Speed Notification
Speed Monitoring, Setpoint Alarming and Rotor Acceleration Alarming
Speed Monitoring, Setpoint Alarming and Reverse Rotation Notification
The 3500/50M Tachometer Module can be configured to supply conditioned Keyphasor signals to the backplane of the 3500 rack for use by other monitors. Therefore, you don't need a separate Keyphasor module in the rack.
The 3500/50M Tachometer Module has a peak hold feature that stores the highest speed, the highest reverse speed, or the number of reverse rotations that the machine has reached. You can reset the peak values.
Ordering Information
3500/50M Tachometer Module 3500/50-AA-BB
|
A: I/O Module Type |
|
| 01 | I/O Module with Internal Terminations |
| 02 | I/O Module with External Terminations |
| 04 | I/O Module with Internal Barriers and Internal Terminations |
| B: Hazardous Area Approval Option | |
| 00 | None |
| 01 | cNRTLus (Class 1, Division 2) |
| 02 | ATEX/IECEx/CSA (Class 1, Zone 2) |
External Termination (ET) Blocks
|
Part Number |
Description |
|
125808-05 |
Tachometer ET Block Euro Style connectors |
|
128015-05 |
Tachometer ET Block Terminal Strip connectors |
|
128702-01 |
Recorder ET Block Euro Style connectors |
|
128710-01 |
Recorder ET Block Terminal Strip connectors |
Spares
| Part Number | Description |
| 288062-02 | 3500/50M Tachometer Module |
| 133442-01 | I/O Module with Internal Terminations |
| 136703-01 | Discrete Internal Barrier I/O Module with Internal Terminations |
| 133434-01 | I/O Module with External Terminations |
| 133450-01 | TMR I/O Module with External Terminations |
| 134938 | 3500/50M Tachometer User Guide |
| 04425545 | Grounding Wrist Strap Single use only |
| 00580434 | Connector Header Internal Termination 8-position Green |
| 00580436 | Connector Header Internal Termination 6-position Green |
| 00502133 | Connector Header Internal Termination 12-position Blue |
| 166M2390 | Connector Header Push-in-Spring Type (Alternative for PN 00580436) |
| 166M2389 | Connector Header Push-in-Spring Type (Alternative for PN 00580434) |
