Bently Nevada 3500/92 Communication Gateway 3500/92-02-01-00 3500/92-03-01-00 136180-1 136188-01 133323-01

Name: RS232 Bently Nevada 3500 Vibration Probe 3500 92 Communication Gateway 133323-01 3500/92-02-01-00
Brand: SC Automation Limited
SKU: 3500/92-02-01-00 3500/92-03-01-00 136180-1 136188-01 133323-01
Price: 898.00 USD
Availability: InStock

Description

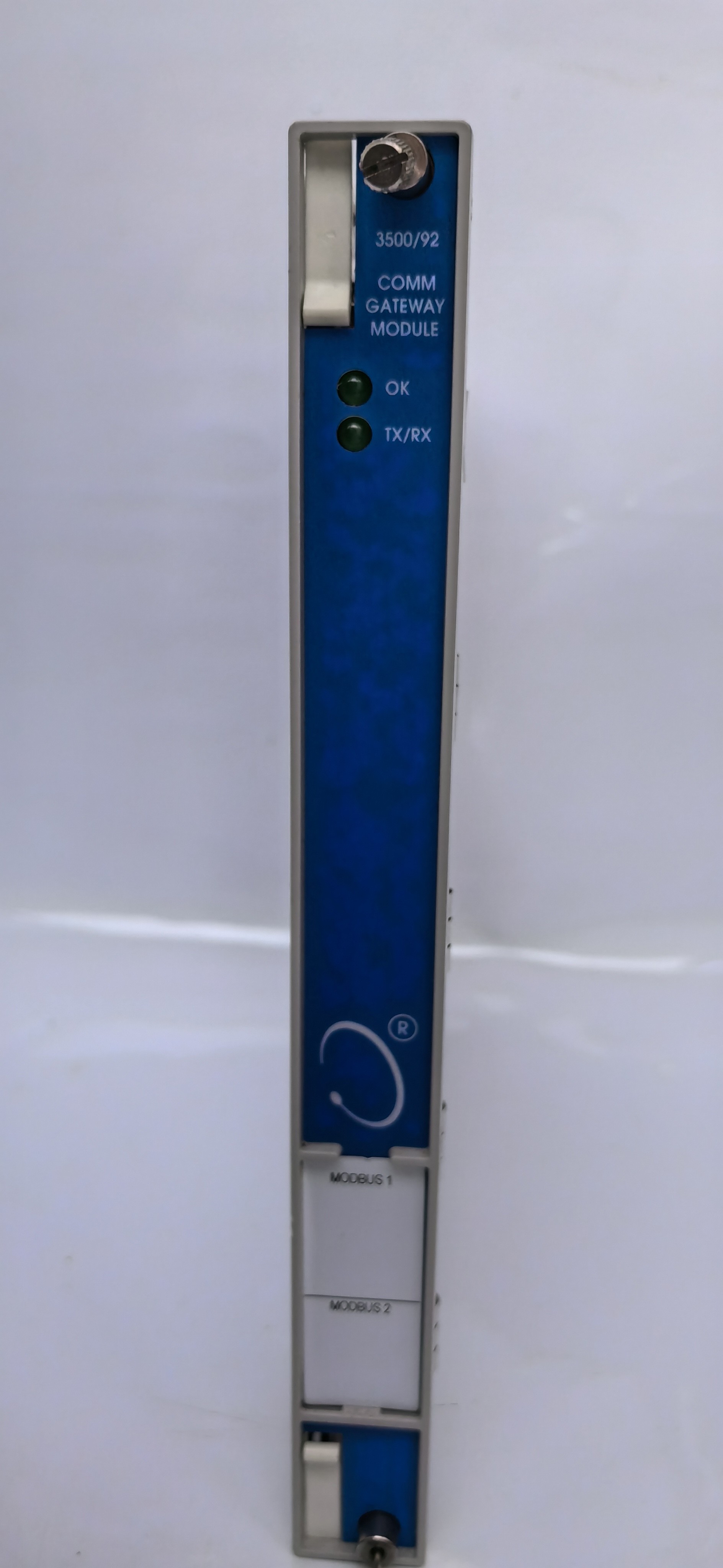

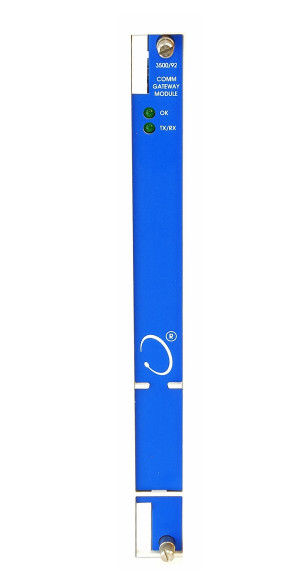

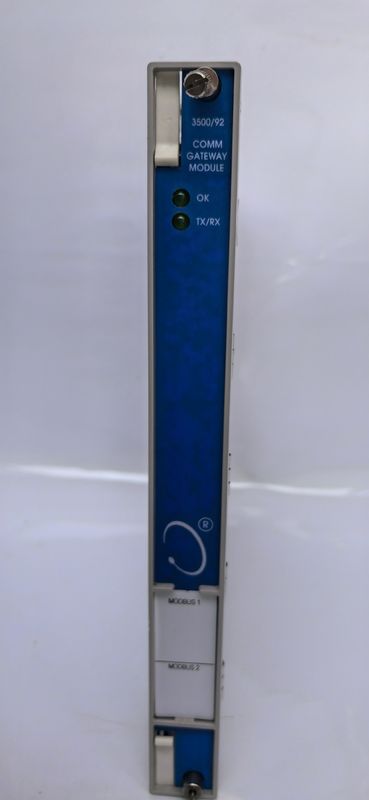

The 3500/92 Communication Gateway module provides extensive communication capabilities of all rack monitored values and statuses for integration with process control and other automation systems using both Ethernet TCP/IP and serial (RS232/RS422/RS485) communications capabilities. It also permits Ethernet communications with 3500 Rack Configuration Software and Data Acquisition Software.

Supported protocols include:

Modicon Modbus protocol (via serial communications)

Modbus/TCP protocol (a variant of serial Modbus used for TCP/IP Ethernet communications)

Proprietary Bently Nevada protocol (for communication with 3500 Rack Configuration and Data Acquisition Software packages)

The 3500/92 supports the communication interfaces, communication protocols, and other features from the original 3500/90 with the exception of the primary value Modbus registers. The 3500/92 now has a Configurable Modbus Register Utility, which can provide the same functionality originally addressed by the primary value Modbus registers.

Ordering Information

3500/92 Communication Gateway 3500/92-AA-BB-CC

A: I/O Module Type
01	ModbusRS232/RS422 I/O Module
02	ModbusRS485 I/O Module
03	Ethernet/RS232 Modbus I/O Module
04	Ethernet/RS485 Modbus I/O Module
B: Memory Type
01	Low Memory
C: Agency Approval Option
00	None
01	CSA/NRTL/C
02	CSA/ATEX/IECEx

Spares

Part Number	Description
04425545	Grounding Wrist Strap (single use)
137495-01	Firmware IC (Odd bank)
137494-01	Firmware IC (Even bank)

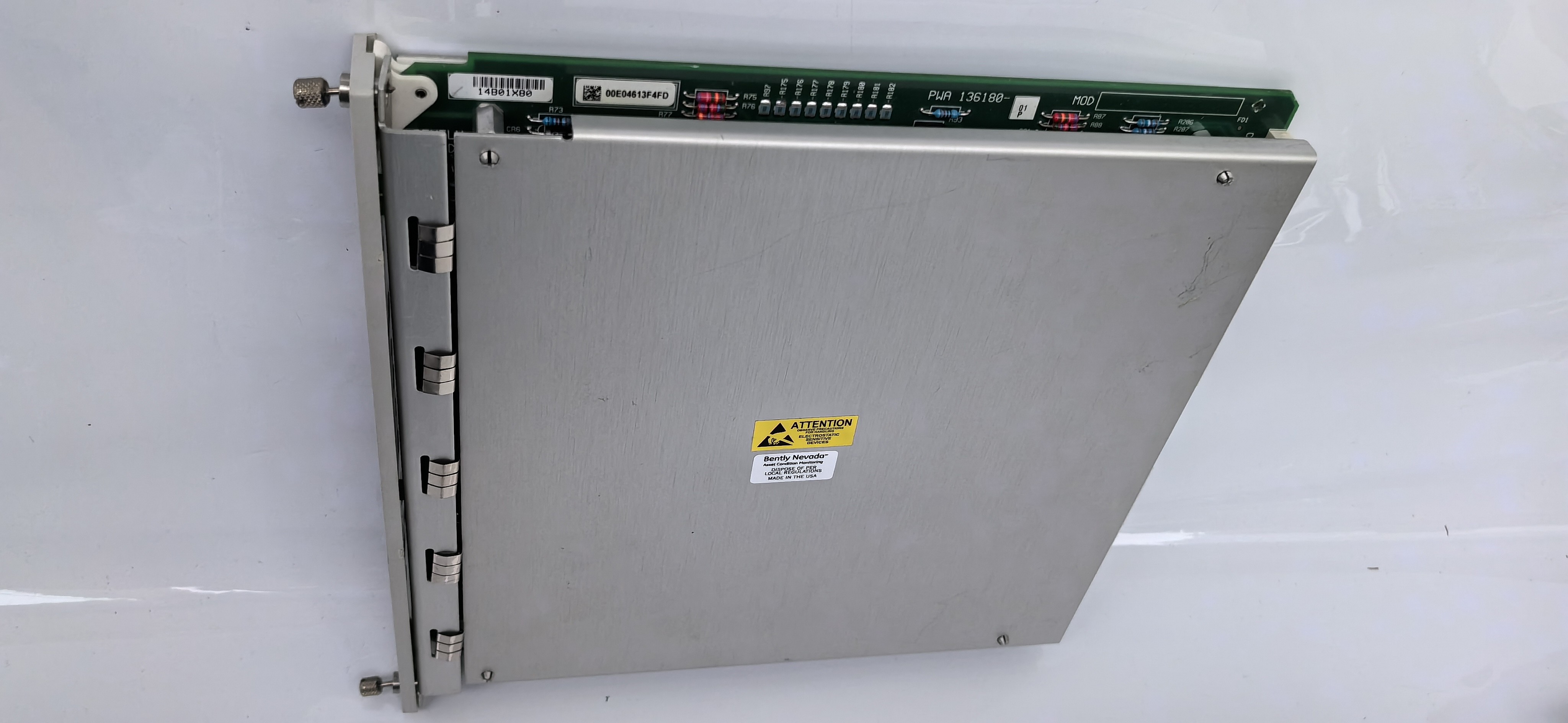

136180-01	3500/92 Communication Gateway Module.
125736-01	ModbusRS232/RS422 I/O Module.

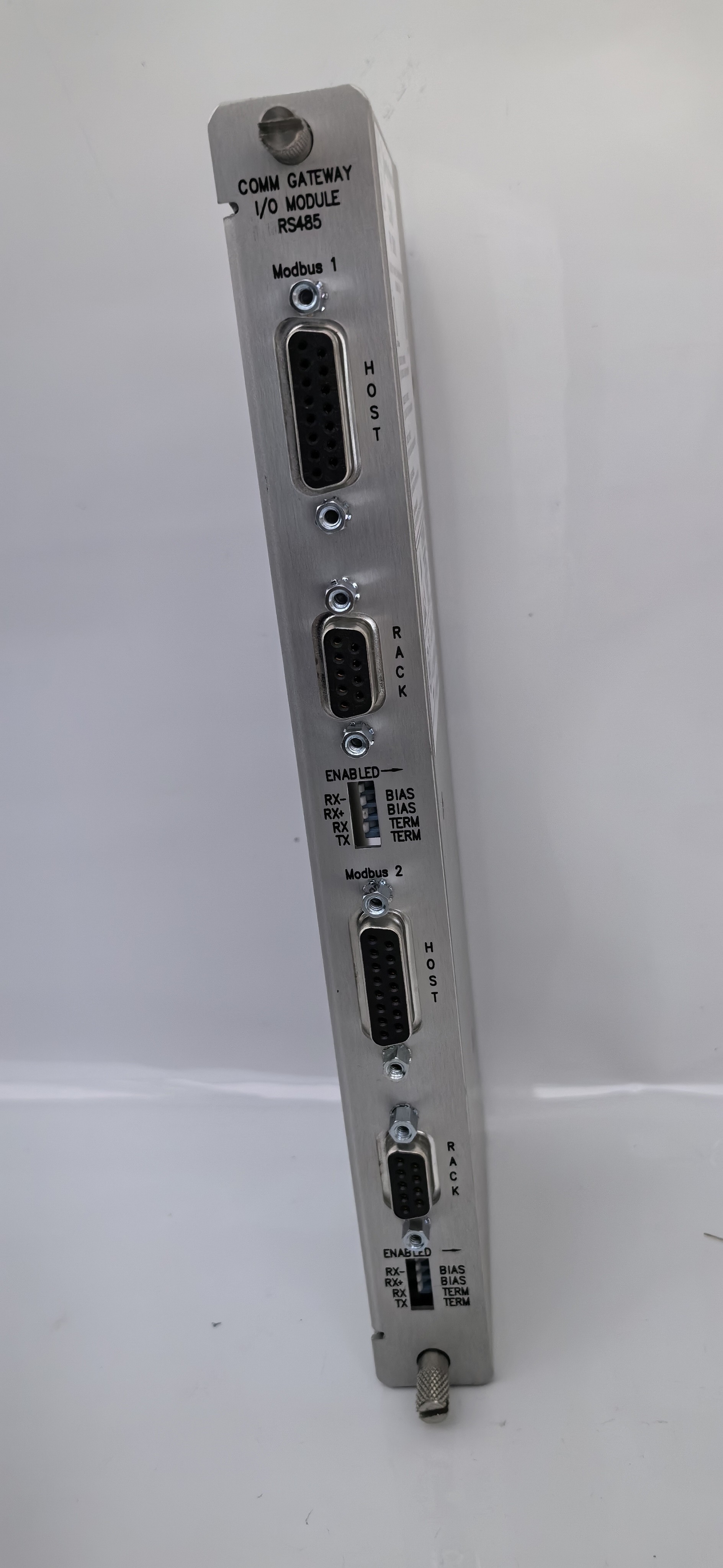

133323-01	1 ModbusRS485 I/O Module.

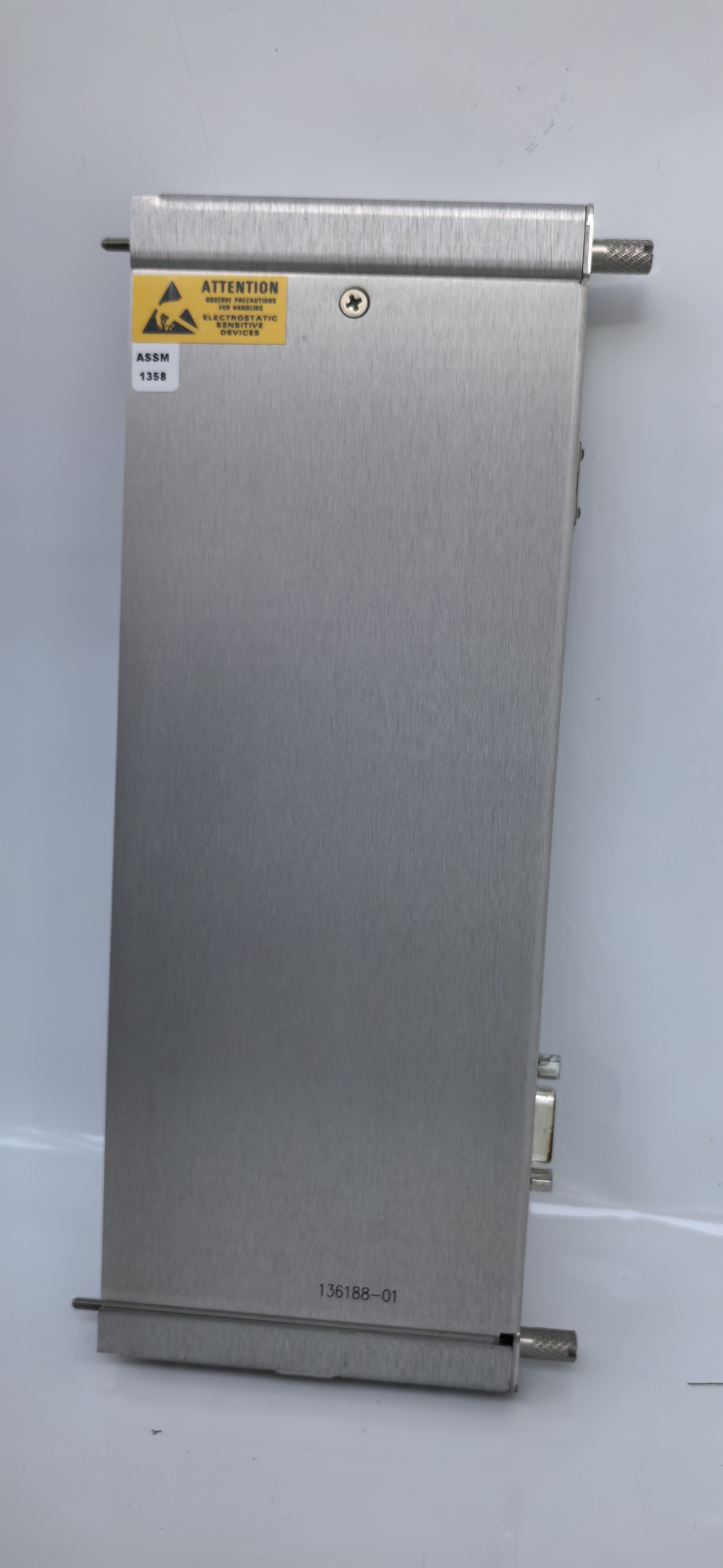

136188-01	Ethernet/RS232 ModbusI/O Module *
136188-02	Ethernet/RS485 ModbusI/O Module *
Bently_ Manuals	International Technical Documentation DVD

Related Part Number:

177230-01-01-CN	991-25-50-01-00	330105-02-12-05-02-00
177313-02-02-00	330106-05-30-05-02-00	330105-02-12-05-02-CN
190501-00-00-CN	330106-05-30-05-02-CN	330105-02-12-10-02-00
200151-060-03-00	330106-05-30-10-02-00	330105-02-12-10-02-CN
200152-150-02-10	330106-05-30-10-02-CN	CB2W100-32
200200-05-05-CN	330130-080-00-00	40180-02
330101-00-16-10-02-CN	330130-040-00-00	CB2W100-32
330101-00-25-05-01-CN	330130-040-00-CN	330180-51-CN
330102-00-17-10-02-CN	330130-080-01-00	330180-91-CN
330102-02-12-10-02-00	330130-045-00-CN	330190-085-00-00
330103-00-05-10-01-00	330130-045-01-00	330195-02-12-05-00
330103-00-08-05-02-CN	330130-075-01-CN	330400-01-CN
330103-00-08-05-02-CN	330130-085-00-CN	330400-02-CN
330103-00-12-15-02-CN	330180-51-00	330525-CN
330104-00-06-05-01-CN	330902-02-12-05-02-CN	330901-00-90-10-02-CN
330104-00-08-05-02-CN	330907-05-30-10-02-00	330902-00-30-10-02-00
330930-040-00-00	330130-045-03-00	330130-045-03-CN
330703-000-050-50-12-00	330130-040-01-CN	330104-00-14-10-02-CN
330101-00-30-50-02-00	330703-000-060-10-02-00	330780-90-00
330780-51-00	330104-05-18-10-02-00	330103-00-17-10-02-00
330910-00-11-10-02-00	330930-060-01-00	330130-040-03-00
330910-00-11-10-02-O0	40113-02	330104-12-20-10-02-CN
330101-00-20-10-02-00	330930-045-00-00	3500/15-05-05-00
3500/92-02-01-00	16925-30	3500/15 106M1081-01
330930-040-01-00	178850-CN	330130-080-00-CN
330908-00-20-70-02-CN	330909-00-20-10-02-CN	330902-00-12-10-02-CN
3500/05-02-04-00-00-01	330905-00-18-05-02-CN	3500/33-01-00
330195-02-12-10-00	190501-19-00-CN	3500/40-03-00+3500/04-01-00
330980-71-CN	330103-00-08-10-02-CN	330103-00-13-10-02-CN
330101-00-40-10-02-CN	330130-085-03-CN	330500-03-00
330103-00-05-10-02-CN	330103-00-02-10-02-CN	330130-080-11-CN
330101-00-25-10-02-CN	330101-00-50-10-02-CN	330101-00-40-10-02-CN
330130-040-12-CN	330101-00-20-10-02-CN	330195-02-12-90-CN

RS232 Bently Nevada 3500 Vibration Probe 3500 92 Communication Gateway 133323-01 3500/92-02-01-00 0

RS232 Bently Nevada 3500 Vibration Probe 3500 92 Communication Gateway 133323-01 3500/92-02-01-00 1

Tag:

Place of Origin:	USA
Brand Name:	Bently Nevada
Certification:	CE
Model Number:	3500/92-02-01-00 3500/92-03-01-00 136180-1 136188-01 133323-01
Document:	3500-92.pdf

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	12-16weeks
Payment Terms:	T/T
Supply Ability:	100pcs per month

Power Consumption:	5.0 Watts Typical With Modbus RS232/ RS422 I/O Module 5.6 Watts Typical With Modbus RS485 I/O Module	OK LED:	Ndicates When The 3500/92 Is Operating Properly.
Dimensions:	241 Mm X 24.4 Mm X 99.1 Mm	Weight:	0.44 Kg (0.96 Lb.)
Monitor Module:	1 Full-height Front Slot	I/O Modules:	1 Full-height Rear Slot
Highlight:	RS232 bently nevada 3500 vibration probe , RS422 3500 92 communication gateway , 133323-01
