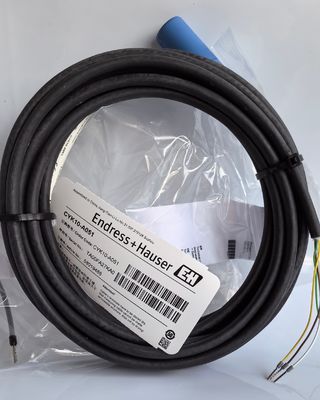

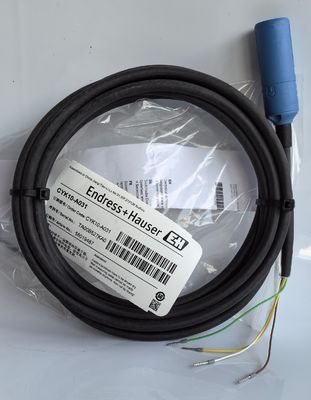

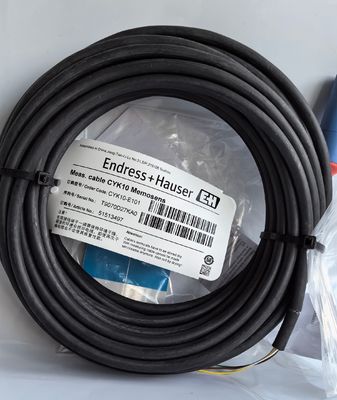

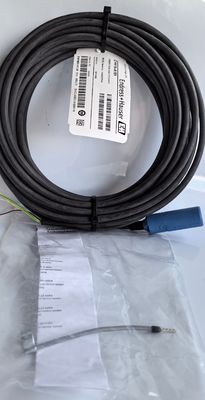

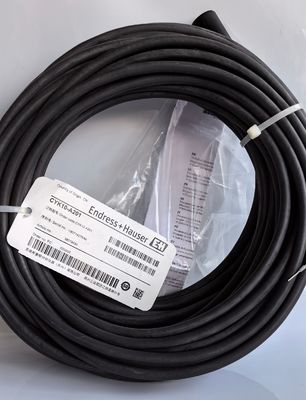

6.3mm Endress Hauser Instruments Digital Measuring Cable CYK10-A031 CYK10-A201 CYK10-E101
| Place of Origin | Germany |
|---|---|
| Brand Name | Endress+Hauser |
| Certification | ATEX II 1G Ex ia IIC T3/T4/T6 FM, CSA IS Cl.1 Div 1 Gr. A-D ATEX, NEPSI II 3G Ex nL IIC TIIS |
| Model Number | CYK10-A031 CYK10-A101 CYK10-A051 CYK10-A201 CYK10-E101 |
| Minimum Order Quantity | 1 piece |
| Price | negotiable |
| Packaging Details | standard carton packing |
| Delivery Time | on request |
| Payment Terms | T/T |
| Supply Ability | 100pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Cable Sheath: TPE Junction Box: Aluminum | Dimension | Diameter: 6.3 Mm (0.25 Inch) Cores: 2x2 Cores, Twisted Pairs Length: Up To Approx. 100 M (328 Ft) |
|---|---|---|---|
| Measuring Principle | Potentiometric | Application | Measuring Cable For Contactless, Inductive, Digital Transmission Of Measurement Signals |
| Characteristic | Inductive, Digital Transmission Of Measurement Signals And Energy Not Influenced By Moisture, EMC-fields And Corrosion | Design | Easy To Handle Bajonett Coupling To Connect Digital Sensors With Memosens Technology And Plug-head No Open Contacts, Resistant Against Humidity |
| Process Temperature | -25 To 135 °C (-13 To 277 °F) | Temperature Sensor | For Digital Sensors With Inductive Plug-head With And Without Temperature Sensor |
| Highlight | 6.3mm Endress Hauser Instruments,Endress Hauser Instruments CYK10-A201,CYK10-A031 |
||
Product Description
Endress Hauser Digital measuring cable CYK10-A031 CYK10-A101 CYK10-A051 CYK10-A201 CYK10-E101
SPECIFICATIONS
-
Measuring principle:Potentiometric
-
Application:Measuring cable for contactless, inductive, digital transmission of measurement signals
-
Installation:Inductive plug- head for digital sensors with Memosens technology and wire terminals or M12 plug to connect to the transmitter
-
Characteristic:Inductive, digital transmission of measurement signals and energy Not influenced by moisture, EMC-fields and corrosion
-
Measurement range:High impedance cable not necessary
-
Design:Easy to handle Bajonett coupling to connect digital sensors with Memosens technology and plug-head No open contacts, resistant against humidity
-
Material:Cable sheath: TPE；Junction box: aluminum
-
Dimension:Diameter: 6.3 mm (0.25 inch)；Cores: 2x2 cores, twisted pairs；Length: up to approx. 100 m (328 ft)
-
Process temperature:-25 to 135 °C (-13 to 277 °F)
-
Process pressure:max. 50 bar/725 psi at 135°C/275°F.
-
Temperature sensor:For digital sensors with inductive plug-head with and without temperature sensor
-
Ex certification:ATEX II 1G Ex ia IIC T3/T4/T6；FM, CSA IS Cl.1 Div 1 Gr. A-D；ATEX, NEPSI II 3G Ex nL IIC；TIIS
-
Ingress protection:IP68
-
Additional certifications；Also available as TÜV approved SIL version
Field of application
CYK10 guarantees absolute water-proof connection of Memosens sensors to the transmitter. Its inductive coupling shows no contact corrosion and guarantees galvanic isolation of transmitter and medium. Simply forget about limited cable length, interfering potentials or moisture and benefit from completely safe and reliable signal transmission.
The Memosens data cable CYK10 is applied in Memosens systems measuring the following parameters:
-
pH/ORP
-
Dissolved oxygen (amperometric)
-
Conductive conductivity
-
Disinfection
Benefits
-
Maximum process safety through non-contact, inductive and digital signal transmission: No contact corrosion, absolutely watertight, no interference potential.
-
Increased availability of the measuring point: Digital data transmission provides an automatic error message if the signal is lost.
-
More flexibility in plant planning and installation: Cable length up to 100 m is possible.
-
Approved for hazardous area use.
-
