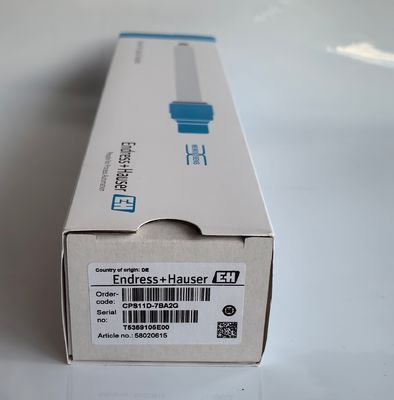

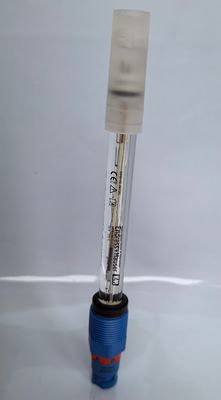

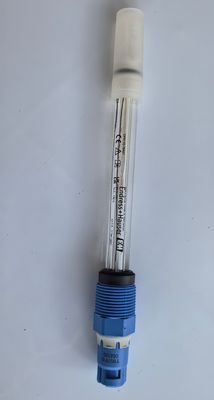

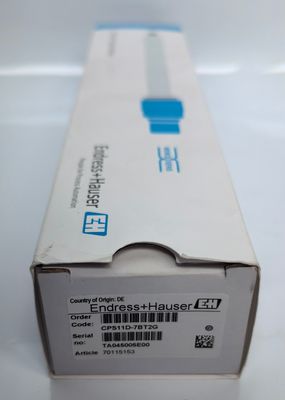

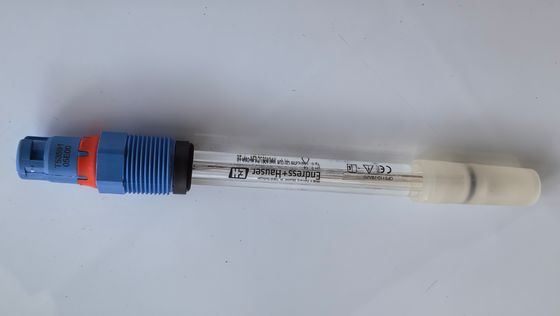

120mm Endress Hauser Ph MeterDigital PH Sensor Orbisint CPS11D-7BA2G CPS11D-7BA21

  • 120mm Endress Hauser Ph MeterDigital PH Sensor Orbisint CPS11D-7BA2G CPS11D-7BA21
  • 120mm Endress Hauser Ph MeterDigital PH Sensor Orbisint CPS11D-7BA2G CPS11D-7BA21
  • 120mm Endress Hauser Ph MeterDigital PH Sensor Orbisint CPS11D-7BA2G CPS11D-7BA21
  • 120mm Endress Hauser Ph MeterDigital PH Sensor Orbisint CPS11D-7BA2G CPS11D-7BA21
  • 120mm Endress Hauser Ph MeterDigital PH Sensor Orbisint CPS11D-7BA2G CPS11D-7BA21
  • 120mm Endress Hauser Ph MeterDigital PH Sensor Orbisint CPS11D-7BA2G CPS11D-7BA21
Place of Origin Germany
Brand Name Endress+Hauser
Certification ATEX, FM, CSA, NEPSI
Model Number CPS11D-7BA2G CPS11D-7BA21 CPS11D-7BT2G CPS11D-7BA2G
Minimum Order Quantity 1 piece
Price negotiable
Packaging Details standard carton packing
Delivery Time on request
Payment Terms T/T
Supply Ability 100pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Glass And PTFE Dimension Diameter: 12 Mm (0.47 Inch) Shaft Length: 120, 225 And 360 Mm (4.72, 8.86 And 14.17 Inch)
Measuring Principle Gel Compact Electrode With PTFE Ring-diaphragm Application Long-term Monitoring, Processes With Little Change Water And Wastewater Treatment
Characteristic Analog, Digital PH Electrodes For Standard Applications In Process And Environmental Technology Dirt-repellent PTFE Diaphragm, Built-in Temperature Sensor Design All Shaft Lengths With Temperature Sensor Advanced Gel Technology Digital Electrode With Memosens Technology
Process Temperature 0 To 135 °C (32 To 275 °F) Temperature Sensor NTC 30k
Highlight

endress hauser ph meter CPS11D-7BA2G

,

Orbisint CPS11D CPS11D-7BA21

,

Digital pH sensor
Leave a Message
Product Description

Endress Hauser Digital pH sensor Orbisint CPS11D-7BA2G CPS11D-7BA21 CPS11D-7BT2G CPS11D-7BA2G



SPECIFICATIONS



  • Measuring principle:Potentiometric

  • Application:Long-term monitoring, processes with little change；Water and wastewater treatment

  • Characteristic:Analog, digital pH electrodes for standard applications in process and environmental technology；Dirt-repellent PTFE diaphragm, built-in temperature sensor

  • Measurement range:pH 0 to 14

  • Measuring principle:Gel compact electrode with PTFE ring-diaphragm

  • Design:All shaft lengths with temperature sensor；Advanced gel technology；Digital electrode with Memosens technology

  • Material:Glass and PTFE

  • Dimension:Diameter: 12 mm (0.47 inch)；Shaft length: 120, 225 and 360 mm(4.72, 8.86 and 14.17 inch)

  • Process temperature:0 to 135 °C (32 to 275 °F)

  • Process pressure:1 to 17 bar (15 to 246 psi)

  • Temperature sensor:NTC 30k

  • Ex certification:ATEX, FM, CSA, NEPSI

  • Connection:Inductive, digital connection head with Memosens technology

  • Ingress protection:IP68

  • Additional certifications:Also available as SIL version





Field of application


Orbisint CPS11D is not the latest Memosens generation and will be phased out soon. To get information on the new Memosens CPS11E sensor with extended functionality, click here.Orbisint CPS11D is the digital all-rounder for process and environmental technology. It measures reliably even in highly alkaline media or hazardous areas. Designed for low maintenance and a long operating life, the electrode offers you best value for money.

  • Long-term monitoring and limit monitoring of processes with stable process conditions:
- Chemical industry
- Paper industry
- Power plants (e.g. flue gas washers, boiler feed water)
- Incineration plants
  • Water treatment:
- Drinking water
- Cooling water
- Well water
With ATEX, FM, CSA approval for use in hazardous areas.

Benefits

  • Robust electrode with long poison diffusion path, requires low maintenance due to large, dirt-repellent PTFE ring diaphragm

  • Suitable for harsh applications: Process glass for highly alkaline media and pressure-stable up to 16 bar (232 psi)

  • Optional salt ring for low conductivity applications such as boiler feed water and water for injection

  • Maximum process safety through non-contact, inductive signal transmission

  • Enables predictive maintenance due to storage of sensor and process-specific data

  • Reduced operating costs thanks to minimized process downtime and extended sensor lifetime

  •
