35VDC SIL 2 P+F Current Driver KFD2-CD-Ex1.32
Product Details:
| Place of Origin: | Germany |
| Brand Name: | P+F |
| Certification: | BAS 02 ATEX 7203 X |
| Model Number: | KFD2-CD-Ex1.32 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard carton packing |
| Delivery Time: | on request |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Labeling: | Space For Labeling At The Front | Safety Integrity Level (SIL): | SIL 2 |
|---|---|---|---|
| Degree Of Protection: | IEC 60529:2001 | Supply Connection: | Power Rail Or Terminals 7+, 8- |
| Ambient Temperature: | -20 ... 60 °C (-4 ... 140 °F) | Dimensions: | 20 X 107 X 115 Mm (0.8 X 4.2 X 4.5 Inch) (W X H X D) , Housing Type B1 |
| Highlight: | SIL 2 P+F Current Driver,35VDC P+F Current Driver,KFD2-CD-Ex1.32 |
||
Product Description

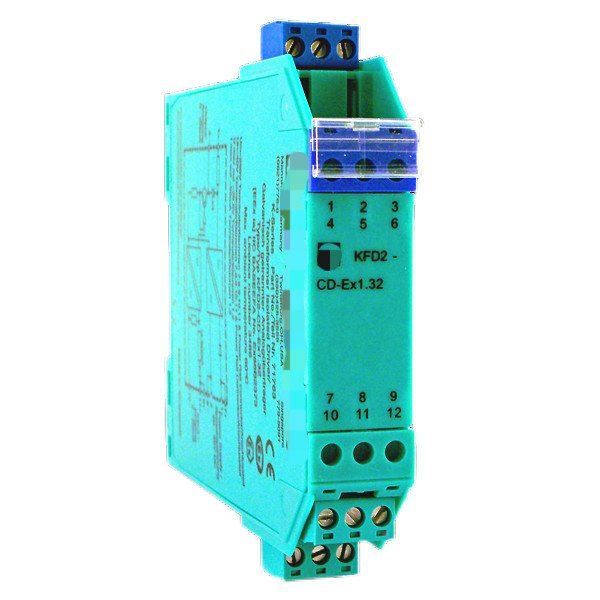

Current Driver KFD2-CD-Ex1.32
1-channel isolated barrier, 24 V DC supply (Power Rail), Current input 0 mA ... 20 mA, Current output 0 mA ... 20 mA, Accuracy 0.1 %, Up to SIL 2 acc. to IEC/EN 61508, Housing width: 20 mm, Number of channels: 1-channel, Transfer direction: to the field, Safety Integrity Level (SIL): SIL 2, Rated voltage: 20 ... 35 V DC, Signal: 1 x 0 ... 20 mA, Signal [2]: 1 x 4 ... 20 mA, Field device: 1 x I/P converters, Field device [2]: 1 x positioner, Signal: 1 x 0 ... 20 mA
Technical Data
|
General specifications |
||
|---|---|---|
|
Signal type |
Analog output |
|
|
Functional safety related parameters |
||
|
Safety Integrity Level (SIL) |
SIL 2 |
|
|
Supply |
||
|
Connection |
Power Rail or terminals 7+, 8- |
|
|
Rated voltage |
20 ... 35 V DC |
|
|
Ripple |
within the supply tolerance |
|
|
Rated current |
max. 50 mA |
|
|
Power dissipation |
1.4 W |
|
|
Input |
||
|
Connection side |
control side |
|
|
Connection |
terminals 9+, 10-, 11+ |
|
|
Voltage drop |
approx. 4 V at 20 mA |
|
|
Input current |
≤ 100 µA up to 50 °C (122 °F) at 10 V |
|
|
Limit |
max. 40 mA |
|
|
Transmission range |
0 ... 20 mA |
|
|
Output |
||
|
Connection side |
field side |
|
|
Connection |
terminals 1+, 2- |
|
|
Voltage |
17 V at 20 mA |
|
|
Current |
0 ... 20 mA |
|
|
Load |
output resistance: max. 3 Ω |
|
|
Transfer characteristics |
||
|
Deviation |
at 20 °C (68 °F), 4 ... 20 mA |
|
|
|
Influence of ambient temperature |
≤ ± 0.01 %/K |
|
Rise time |
< 10 ms |
|
|
Galvanic isolation |
||
|
Input/power supply |
functional insulation, rated insulation voltage 50 V AC |
|
|
Indicators/settings |
||
|
Display elements |
LED |
|
|
Labeling |
space for labeling at the front |
|
|
Directive conformity |
||
|
Electromagnetic compatibility |
|
|
|
|
Directive 2014/30/EU |
EN 61326-1:2013 (industrial locations) |
|
Conformity |
||
|
Degree of protection |
IEC 60529:2001 |
|
|
Protection against electrical shock |
UL 61010-1:2012 |
|
|
Ambient conditions |
||
|
Ambient temperature |
-20 ... 60 °C (-4 ... 140 °F) |
|
|
Mechanical specifications |
||
|
Degree of protection |
IP20 |
|
|
Connection |
screw terminals |
|
|
Mass |
approx. 100 g |
|
|
Dimensions |
20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) (W x H x D) , housing type B1 |
|
|
|
Height |
107 mm |
|
|
Width |
20 mm |
|
|
Depth |
115 mm |
|
Mounting |
on 35 mm DIN mounting rail acc. to EN 60715:2001 |
|
|
Data for application in connection with hazardous areas |
||
|
EU-type examination certificate |
BAS 02 ATEX 7203 X |
|
|
|
Marking |
|
|
Certificate |
TÜV 99 ATEX 1499 X |
|
|
|
Marking |
|
|
Directive conformity |
|
|
|
|
Directive 2014/34/EU |
EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010 |
|
International approvals |
||
|
FM approval |
|
|
|
|
Control drawing |
116-0440 |
|
UL approval |
|
|
|
|
Control drawing |
116-0441 (cULus) |
|
IECEx approval |
|
|
|
|
IECEx certificate |
IECEx BAS 05.0041X |
|
|
IECEx marking |
[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I |
