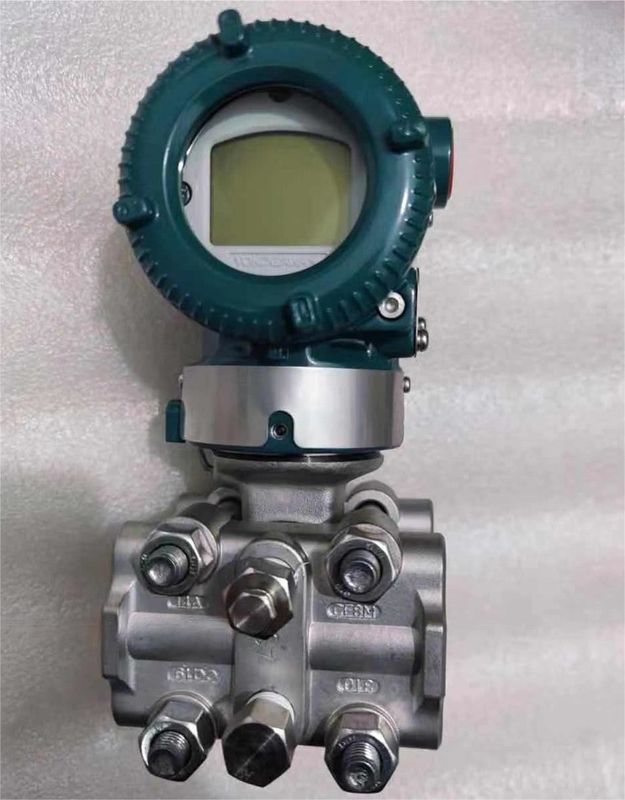

EJA120E Differential Pressure Transmitter EJA120E-JES4G-912DB Pressure Indicating

Basic Information

Place of Origin:	Japan
Brand Name:	YOKOGAWA
Certification:	CE
Model Number:	EJA120E-JES4G-912DB

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	on request
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now

Output Signal:

4 To 20 MA DC With Digital Communication (HART 5/HART 7 Protocol)

Measurement Span (capsule):

0.1 To 1 KPa (0.4 To 4 InH2O)

Process Connections:

With 1/2 NPT Female Process Connector

Bolts And Nuts Material:

316L SST

Installation:

Horizontal Piping And Left Side High Pressure

Amplifier Housing:

Cast Aluminum Alloy

Electrical Connection:

1/2 NPT Female, Two Electrical Connections Without Blind Plugs

Integral Indicator:

Digital Indicator

Highlight:

EJA120E wireless EJA120E differential pressure transmitter

316L wireless differential pressure transmitter

EJA120E-JES4G-912DB pressure indicating transmitter

EJA120E Diff erential Pressure Transmitte EJA120E-JES4G-912DB

Name: EJA120E Differential Pressure Transmitter EJA120E-JES4G-912DB Pressure Indicating
Brand: SC Automation Limited
SKU: EJA120E-JES4G-912DB
Price: 898.00 USD
Availability: InStock

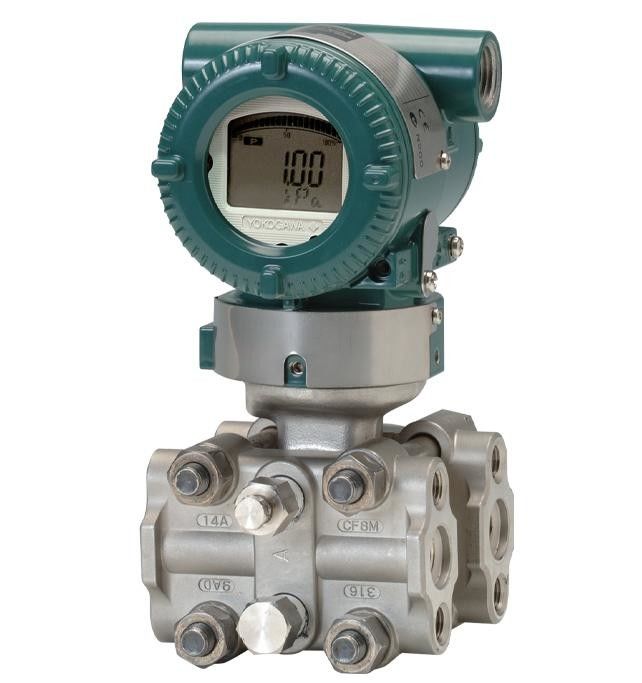

The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family of pressure transmitters. Released in 2012, it combines the ruggedness and success of the work-horse EJA-E series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.

The EJA120E is the traditional-mount Draft Range Pressure Transmitter in this series.

EJA120E features include:

± 0.2% Accuracy (0.09% available with /HAC option)
± 0.3% per 1 year Stability
150 ms Response Time
Exida and TUV SIL 2/3 Certified
Local Parameter Setting (LPS)
True Draft Range design

EJA120E Overview

Refer to the General Specification sheet located under the 'Downloads' tab for detailed specifications.

Measurement Types
Primary Variable	Differential Pressure (Draft Range)
Reference Accuracy
Primary Variable	±0.2% of Span
Response Time
Primary Variable	150 msec
Long Term Stability
Primary Variable	±0.3% of URL per 1 year
Rangeability
Primary Variable	10:1

Related Part Number:

EJA120E-JES4G-912DB

EJA120E-JES4J-812EB

EJA120E-JES5G-934DJ/KU22/M01/D4/N4

EJA130E-JMS4G-712DD/D4

EJA130E-JMS5J-917DB/C1/X2

EJA130E-JHS4J-817EB/FF1/D4

EJA130E-JHS4J-817EB/FU1/D4

EJA130E-JMS5J-719DC/NS21/N4

EJA130E-EMS5B-99DA/X1/D4/M01/T09

EJA130E-JMS4G-91DDJ/KS21/X2/HC/N4

EJA130E-FHS5G-919DB/X2/D4/M01/T09/KS26

EJA130E-FMS5G-919DB/X2/D4/M01/T09/KS26

EJA130E-JMS5G-719DD/X2/D4/M01/T09/KU22

EJA130E-FMS5G-919DB/X2/D4/M01/T09/KS26

EJA130E-FMS5G-919DB/KS26/X2/D4/M01/T09

EJA210E-JMS4J-912DN-EJ14A2SE01-B

EJA210E-JMS5J-912NN-WA13A1SW00-B/D4

EJA210E-DMS4J-912DN-EJ14A2SE01-B/D4

EJA210E-JHS4J-912DN-EA14A1SE01-B/D4
