Output Signal: | 4 To 20 MA DC With Digital Communication (HART 5 Protocol) | Measurement Span (capsule): | 0.5 To 100 KPa (2 To 400 InH2O) |
---|---|---|---|
Process Connections See The Table In The Next Page For The Codes For A Diaphragm Seal System.: | With 1/2 NPT Female Process Connector | Bolts And Nuts Material: | 316L SST |
Installation: | Horizontal Piping And Left Side High Pressure | Amplifier Housing: | Cast Aluminum Alloy |
Electrical Connection: | M20 Female, Two Electrical Connections And A Blind Plug | Integral Indicator: | Digital Indicato |
Highlight: | EJX110A YOKOGAWA Transmitter,YOKOGAWA Transmitter EJX110A-EMS4G-919DB,Differential Pressure Transmitter 4mA |

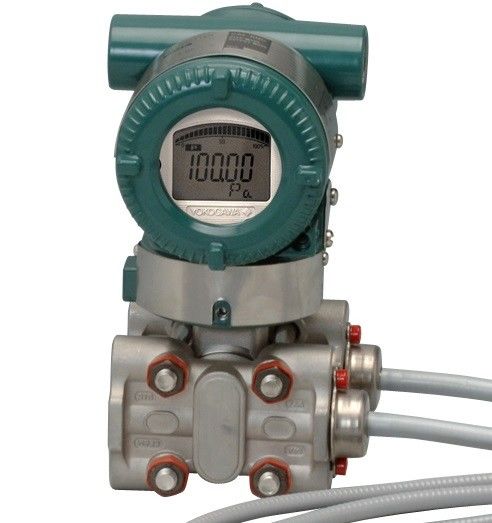

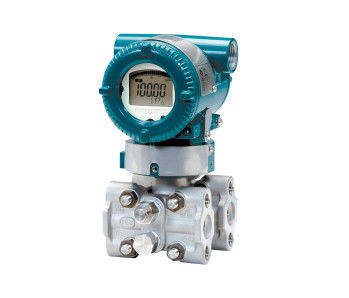

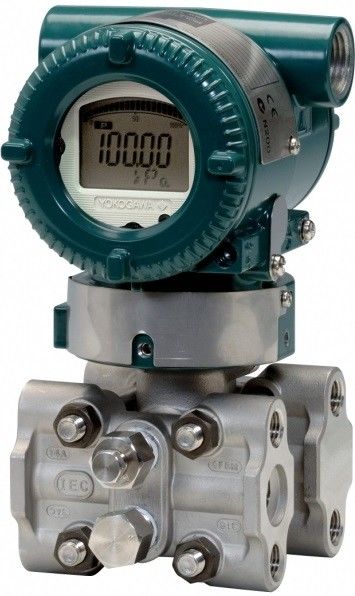

The high performance diff erential pressure transmitter EJX110A features single crystal silicon resonant sensor and is suitable to measure liquid, gas, or steam fl ow as well as liquid level, density and pressure. EJX110A outputs a 4 to 20 mA DC signal corresponding to the measured diff erential pressure. Its highly accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via BRAIN or HART communications. Other key features include quick response, remote set-up using communications, diagnostics and optional status output for pressure high/low alarm. The multi-sensing technology provides the advanced diagnostic function to detect such abnormalities as an impulse line blockage or heat trace breakage. FOUNDATION Fieldbus and PROFIBUS PA protocol types are also available. All EJX series models in their standard confi guration, with the exception of the Fieldbus and PROFIBUS types, are certifi ed as complying with SIL 2 for safety requirement.
EJX110A features include:
EJX110A Specification Overview
Refer to the General Specification sheet located under the 'Downloads' tab for detailed specifications.
Measurement Types | |
---|---|
Primary Variable | Differential Pressure |
Secondary Variable | Static Pressure |
Reference Accuracy | |
Primary Variable | ±0.04% of Span ±0.025% of Span available |
Secondary Variable | ±0.2% of Span |
Response Time | |
Primary Variable | 90 msec |
Secondary Variable | 360 msec |
Long Term Stability | |
Primary Variable | ±0.1% of URL per 15 years |
Over-pressure effect | |
Primary Variable | ±0.03% of URL |
Rangeability | |
Primary Variable | 200:1 |
