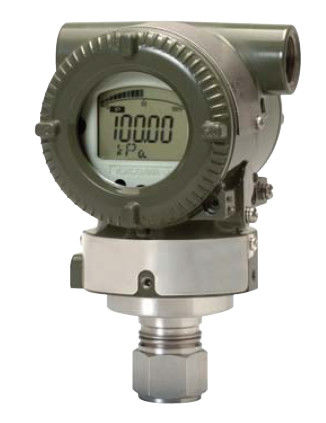

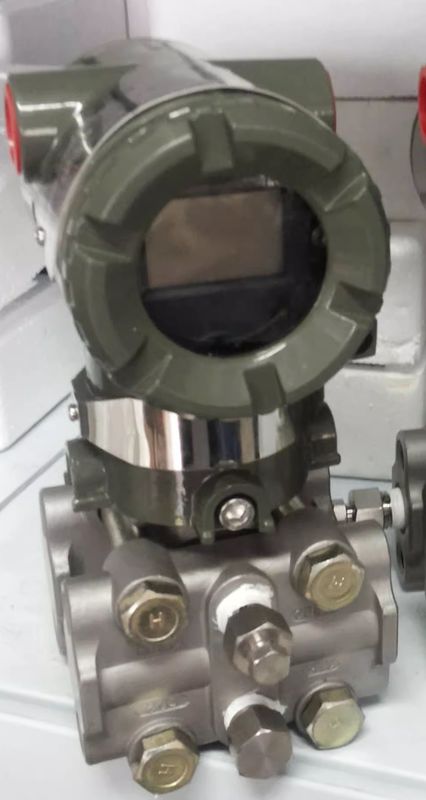

EJA120E Differential Pressure Transmitte EJA120E-JES4J-812EB
Product Details:
| Place of Origin: | Japan |
| Brand Name: | YOKOGAWA |
| Certification: | CE |
| Model Number: | EJA120E-JES4J-812EB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard carton packing |
| Delivery Time: | on request |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Output Signal: | 4 To 20 MA DC With Digital Communication (HART 5/HART 7 Protocol) | Measurement Span (capsule): | 0.1 To 1 KPa (0.4 To 4 InH2O) |
|---|---|---|---|
| Process Connections: | With 1/2 NPT Female Process Connector | Bolts And Nu316L SSTts Material: | B7 Carbon Steel |
| Installation: | Horizontal Piping And Right Side High Pressure | Amplifier Housing: | Cast Aluminum Alloy |
| Electrical Connection: | 1/2 NPT Female, Two Electrical Connections Without Blind Plugs | Integral Indicator: | Digital Indicator With The Range Setting Switch (push Button) |
| Highlight: | mA pressure transmitter yokogawa,20mA pressure transmitter yokogawa,yokogawa eja120e |
||
Product Description
EJA120E Diff erential Pressure Transmitte EJA120E-JES4J-812EB
The high performance draft range diff erential pressure transmitter EJA120E features single crystal silicon resonant sensor and is suitable to measure liquid, gas, or steam fl ow as well as liquid level, density and pressure. EJA120E outputs a 4 to 20 mA DC signal corresponding to the measured diff erential pressure. Other key features include quick response, remote set-up using communications and self-diagnostics. FOUNDATION Fieldbus, PROFIBUS PA and 1 to 5 V DC with HART (Low Power) protocol types are also available. EJA-E series models in their standard confi guration, with the exception of the Fieldbus, PROFIBUS and Low Power types, are certifi ed as complying with SIL 2 for safety requirement.
The EJA120E is the traditional-mount Draft Range Pressure Transmitter in this series.
EJA120E features include:
- ± 0.2% Accuracy (0.09% available with /HAC option)
- ± 0.3% per 1 year Stability
- 150 ms Response Time
- Exida and TUV SIL 2/3 Certified
- Local Parameter Setting (LPS)
- True Draft Range design
