EJA130E Yokogawa Differential Pressure Transmitter EJA130E-DMS5J-912NB
Product Details:
| Place of Origin: | Japan |
| Brand Name: | YOKOGAWA |
| Certification: | CE |
| Model Number: | EJA130E-DMS5J-912NB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard carton packing |
| Delivery Time: | on request |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Output Signal: | 4 To 20 MA DC With Digital Communication (BRAIN Protocol) | Measurement Span (capsule): | 1 To 100 KPa (4 To 400 InH2O) |
|---|---|---|---|
| Process Connections: | Without Process Connector (1/4 NPT Female On The Cover Flanges) | Bolts And Nuts Material: | B7 Carbon Steel |
| Installation: | Horizontal Piping And Left Side High Pressure | Amplifier Housing: | Cast Aluminum Alloy |
| Electrical Connection: | 1/2 NPT Female, Two Electrical Connections Without Blind Plugs | Mounting Bracket: | 304 SST 2-inch Pipe Mounting, Flat Type (for Horizontal Piping) |
| Highlight: | EJA130E yokogawa differential pressure transmitter,carbon steel yokogawa differential pressure transmitter,yokogawa EJA130E |
||
Product Description

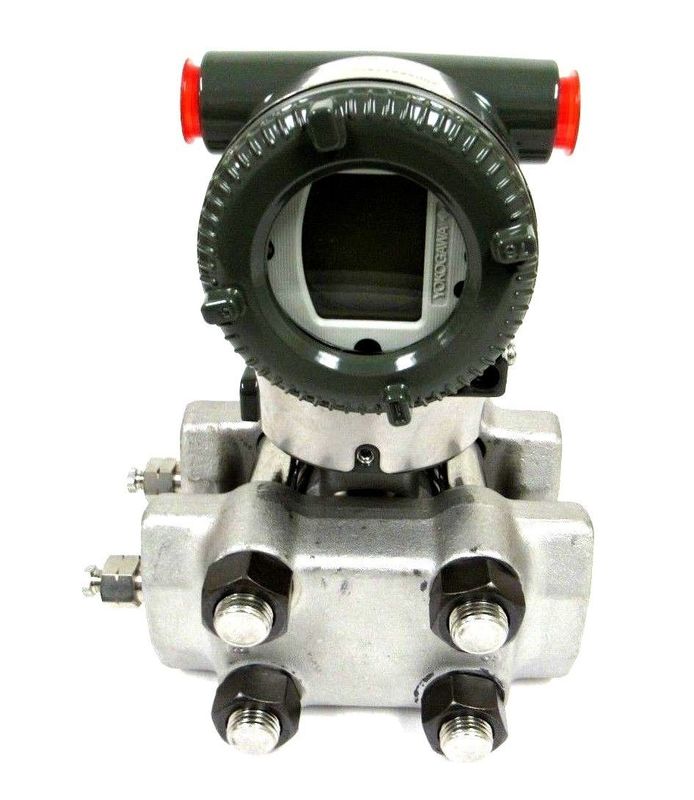

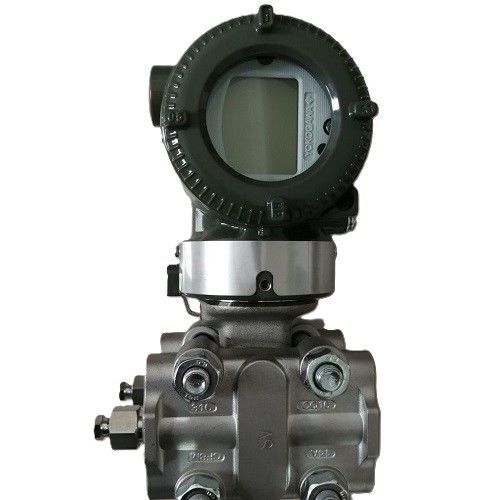

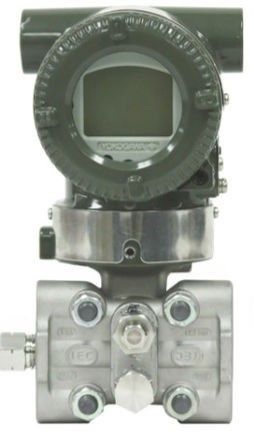

EJA130E Differential Pressure Transmitter EJA130E-DMS5J-912NB
The high performance diff erential pressure transmitter EJA130E features single crystal silicon resonant sensor and is suitable to measure liquid, gas, or steam fl ow as well as liquid level, density and pressure. EJA130E outputs a 4 to 20 mA DC signal corresponding to the measured diff erential pressure. Its accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via BRAIN or HART communications. Other key features include quick response, remote set-up using communications and self-diagnostics. FOUNDATION Fieldbus, PROFIBUS PA and 1 to 5 V DC with HART (Low Power) protocol types are also available. EJA-E series models in their standard confi guration, with the exception of the Fieldbus, PROFIBUS and Low Power types, are certifi ed as complying with SIL 2 for safety requirement.
The EJA130E is a differential pressure transmitter designed to work in a high static pressure enviroment.
EJA130E features include:
- ± 0.055% Accuracy
- ± 0.1% Stability per 10 years
- 150 ms Response Time
- 4,500 psi MWP
- Exida and TUV SIL 2/3 Certified
- Local Parameter Setting (LPS)
Available with HART 5/7, 1 to 5 VDC HART 7 (Low Power), FOUNDATION FieldBus, PROFIBUS PA, or BRAIN communication.
EJA130E Overview
Refer to the General Specification sheet located under the 'Downloads' tab for detailed specifications.
|
Measurement Types |
|
|---|---|
|
Primary Variable |
Differential Pressure (DP) |
|
Secondary Variable |
Static Pressure (SP) |
|
Reference Accuracy |
|
|
Primary Variable |
±0.055% of DP Span |
|
Secondary Variable |
±0.5% of SP Span |
|
Long Term Stability (All Normal Operating Conditions) |
|
|
Primary Variable |
±0.1% of URL per 10 years |
|
Maximum Pressure Limit (MWP) |
|
|
All Capsules |
4,500 psi |
|
Over-pressure Effect |
|
|
Primary Variable |
±0.03% of URL |
|
Rangeability |
|
|
Primary Variable |
100:1 |
|
Burst Pressure |
|
|
All Capsules |
19,100 psi (132 MPa) |
|
Specification Conformance |
|
|
EJX-A Series |
±3σ |
