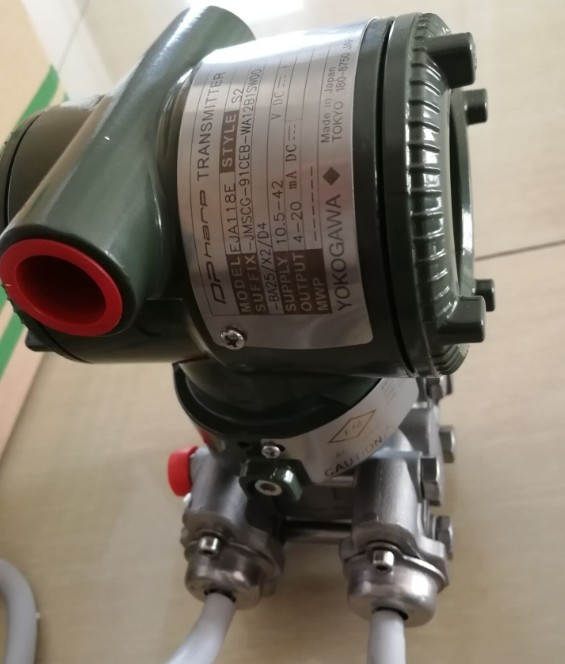

EJA118E DP YOKOGAWA Transmitter With Remote Diaphragm Seals EJA118E-DMSCG-912DB-WJ13B2SW00-BA23/D4
Product Details:
| Place of Origin: | YOKOGAWA |
| Brand Name: | YOKOGAWA |
| Certification: | CE |
| Model Number: | EJA118E-DMSCG-912DB-WJ13B2SW00-BA23/D4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard carton packing |
| Delivery Time: | on request |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Output Signal: | 4 To 20 MA DC With Digital Communication (BRAIN Protocol) | Measurement Span (capsule): | 2.5 To 100 KPa (10 To 400 InH2O) |
|---|---|---|---|
| Coverflange Bolts And Nuts Material: | 316L SST | Installation: | Horizontal Piping Type And Left Side High Pressure |
| Amplifier Housing: | Cast Aluminum Alloy | Electrical Connection: | 1/2 NPT Female, Two Electrical Connections Without Blind Plugs |
| Integral Indicator: | Digital Indicato | Mounting Bracket: | 304 SST 2-inch Pipe Mounting, Flat Type (for Horizontal Piping) |
| Highlight: | 2.5kPa YOKOGAWA Transmitter,100kPa YOKOGAWA Transmitter,EJA118E |
||
Product Description

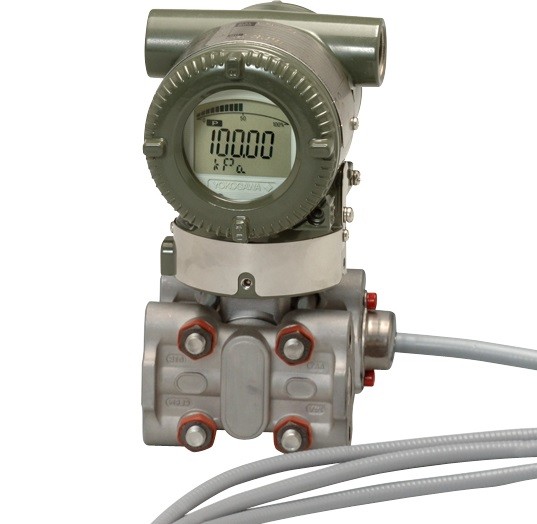

YOKOGAWA EJA118E DP Transmitter with Remote Diaphragm Seals EJA118E-DMSCG-912DB-WJ13B2SW00-BA23/D4
The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-E series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.

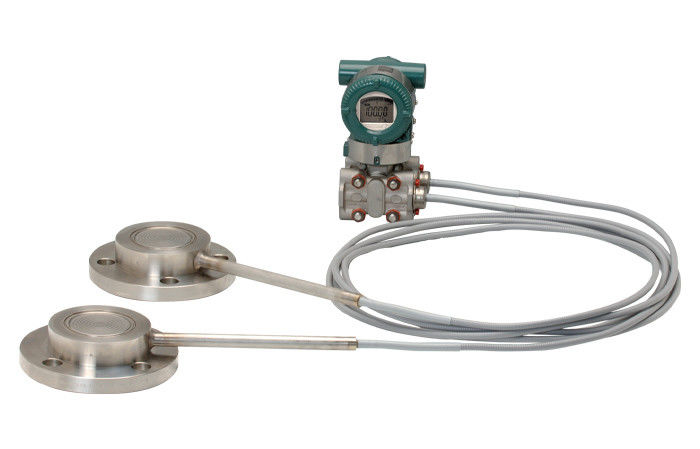

The EJA118E is a Differential Pressure Transmitter with remote diaphragm seals.
EJA118E features include:
- ± 0.2% Accuracy
- 200 ms Response Time
- Exida and TUV SIL2 / SIL3 Certified
- Local Parameter Setting (LPS)
- 10-segment Signal Characterizer
- Active Capillary Fill Fluid Density Compensation
EJA118E Overview
Refer to the General Specification sheet located under the 'Downloads' tab for detailed specifications.
|
Measurement Types |
|
|---|---|
|
Primary Variable |
Differential Pressure (DP) |
|
Secondary Variable |
Static Pressure (SP) |
|
Reference Accuracy |
|
|
Primary Variable |
±0.2% of DP Span |
|
Secondary Variable |
±0.5% of SP Span |
|
Response Time |
|
|
Primary Variable |
200 msec |
|
Secondary Variable |
500 msec |
|
Rangeability |
|
|
Primary Variable |
M-Capsule: 40:1 |
|
Specification Conformance |
|
|
EJX-A Series |
±3σ |
