360mA 4 Channel YOKOGAWA Transmitter ANALOG I / O MODULE AAI835-H00
Product Details:
| Place of Origin: | Indonesio |
| Brand Name: | YOKOGAWA |
| Certification: | CE |
| Model Number: | AAI835-H00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard carton packing |
| Delivery Time: | on request |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Manufacturers: | Yokogawa | Number Of I/O Channels: | 4-channel Input/4-channel Output, Isolated Channels |
|---|---|---|---|
| Input: | 4 To 20 MA | Output: | 4 To 20 MA |
| Maximum Current Consumption: | 360 MA (5 V DC), 450 MA (24 V DC) | Weight: | 0.3 Kg |
| Highlight: | 360mA YOKOGAWA Transmitter,4 channel YOKOGAWA Transmitter,analog io module AAI835-H00 |
||
Product Description

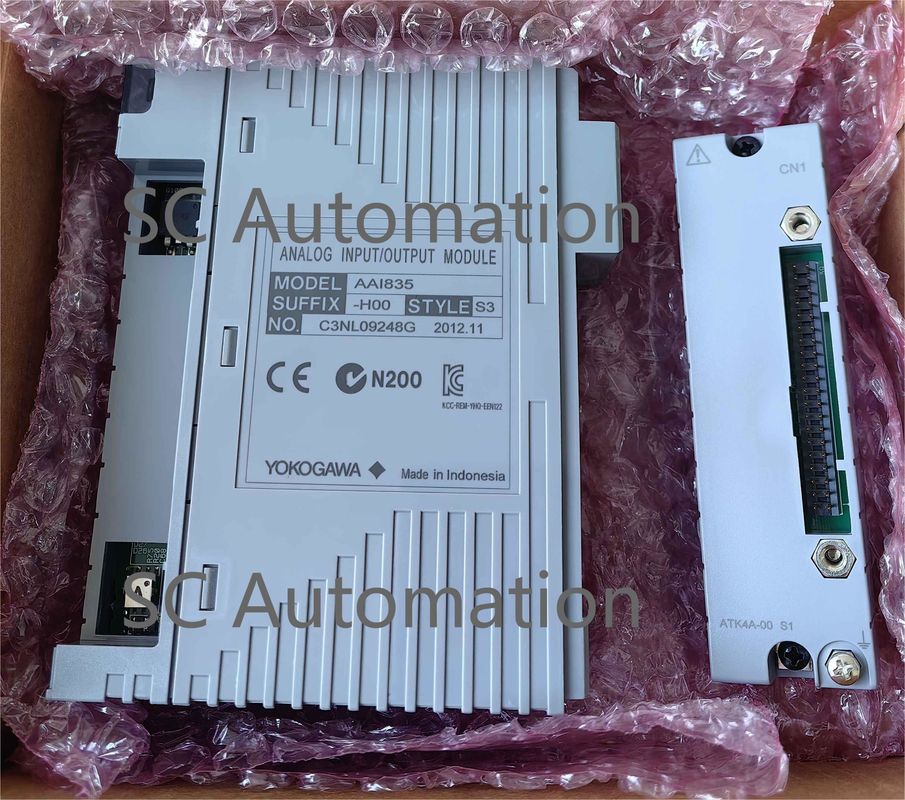

YOKOGAWA ANALOG I/O MODULE AAI835-H00
The current input module receives signal of 4 to 20 mA, and the current I/O module sends and receives signals of 4 to
20 mA. These modules are isolated between the field and the system as well as in between each channel. They can
be used in dual-redundant configuration.
|
Items |
Specifications |
|||
|
Model |
AAI135 (*1) |
AAI835 (*1) |
||
|
Number of I/O channels |
8-channel input, isolated channels |
4-channel input/4-channel output, isolated channels |
||
|
I/O signal |
4 to 20 mA |
Input: 4 to 20 mA |
Output: 4 to 20 mA |
|
|
Allowable input current |
25 mA |
25 mA |
— |
|
|
Withstanding voltage |
Between input and system: 500 VAC, for 1 minute Between input channels: 500 VAC, for 1 minute (*2) |
Between input/output and system: 500 VAC, for 1 minute Between input/output channels: 500 VAC, for 1 minute (*2) |
||
|
Input resistance |
Power ON |
290 Ω (at 20 mA) to 450 Ω (at 4 mA) (*3) |
||
|
Power OFF |
500 kΩ or larger |
|||
|
Allowable load resistance |
— |
— |
0 to 750 Ω (*4) |
|
|
Circuit-open detection |
|
|
Less than 0.65 mA |
|
|
Accuracy |
±16 µA |
Input: ±16 µA |
Output: ±48 µA |
|
|
Data update period |
10 ms |
|||
|
Transmitter power supply |
15.0 V or higher (at 20 mA) 29.3 V or less (at 0 mA) (*5) |
15.0 V or higher (at 20 mA) 29.3 V or less (at 0 mA) (*5) |
|
|
|
Temperature drift |
±16 µA/10 °C |
|||
|
Maximum current consumption |
360 mA (5 V DC), 450 mA (24 V DC) |
360 mA (5 V DC), 450 mA (24 V DC) |
||
|
Weight |
0.3 kg |
|||
|
External connection |
Pressure clamp terminal, MIL connector cable, dedicated cable (KS1) |
|||
|
HART communication (*6) |
Available |
Available |
||
