DO30G YOKOGAWA Transmitter Dissolved Oxygen Sensor DP30G-NN-50-10-PN
| Place of Origin | Japan |
|---|---|
| Brand Name | YOKOGAWA |
| Certification | CE |
| Model Number | DP30G-NN-50-10-PN |
| Minimum Order Quantity | 1pc |
| Price | negotiable |
| Packaging Details | standard carton packing |
| Delivery Time | on request |
| Payment Terms | T/T |
| Supply Ability | 100pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Manufacturer | YOKOGAWA | Title Of Manual | Dissolvecl Oxygen Sensor |
|---|---|---|---|
| Object Of Measurement | Concentration Of Oxygen Dissolved In Solution (water) | Principle Of Measurement | Galvanic-cell Method |
| Measurement Range | 0 To 20 Ppm, 0 To 20 Mg/L, Or 0 To 100% (saturation) | Resistance Temperture Detector (RTD) | Pt 1000 |
| Sensor Unit | Rigid PVC, Stainles Steel | Weight | Approx. 0.3 Kg + 0.12 × N Kg N: Cable Length |
| Highlight | Pt1000 YOKOGAWA Transmitter,DO30G YOKOGAWA Transmitter,dissolved oxygen sensor DP30G-NN-50-10-PN |
||
Product Description

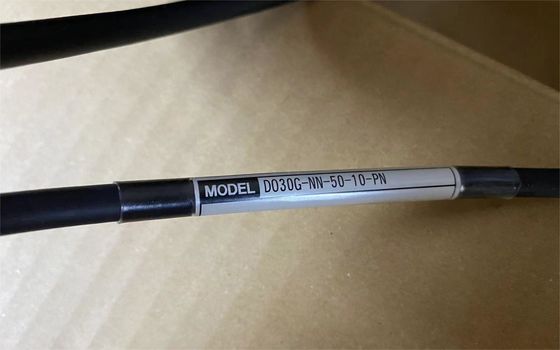

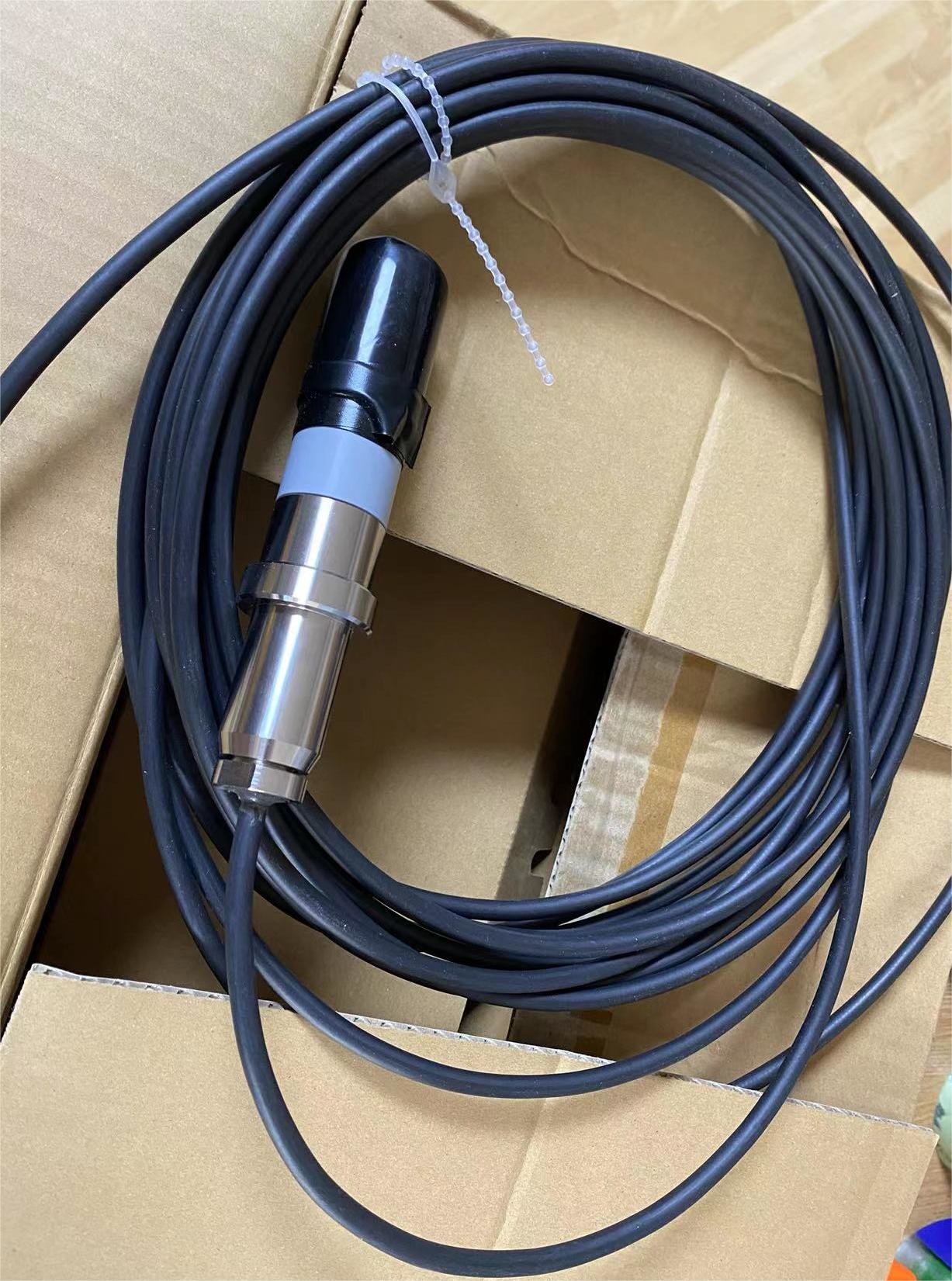

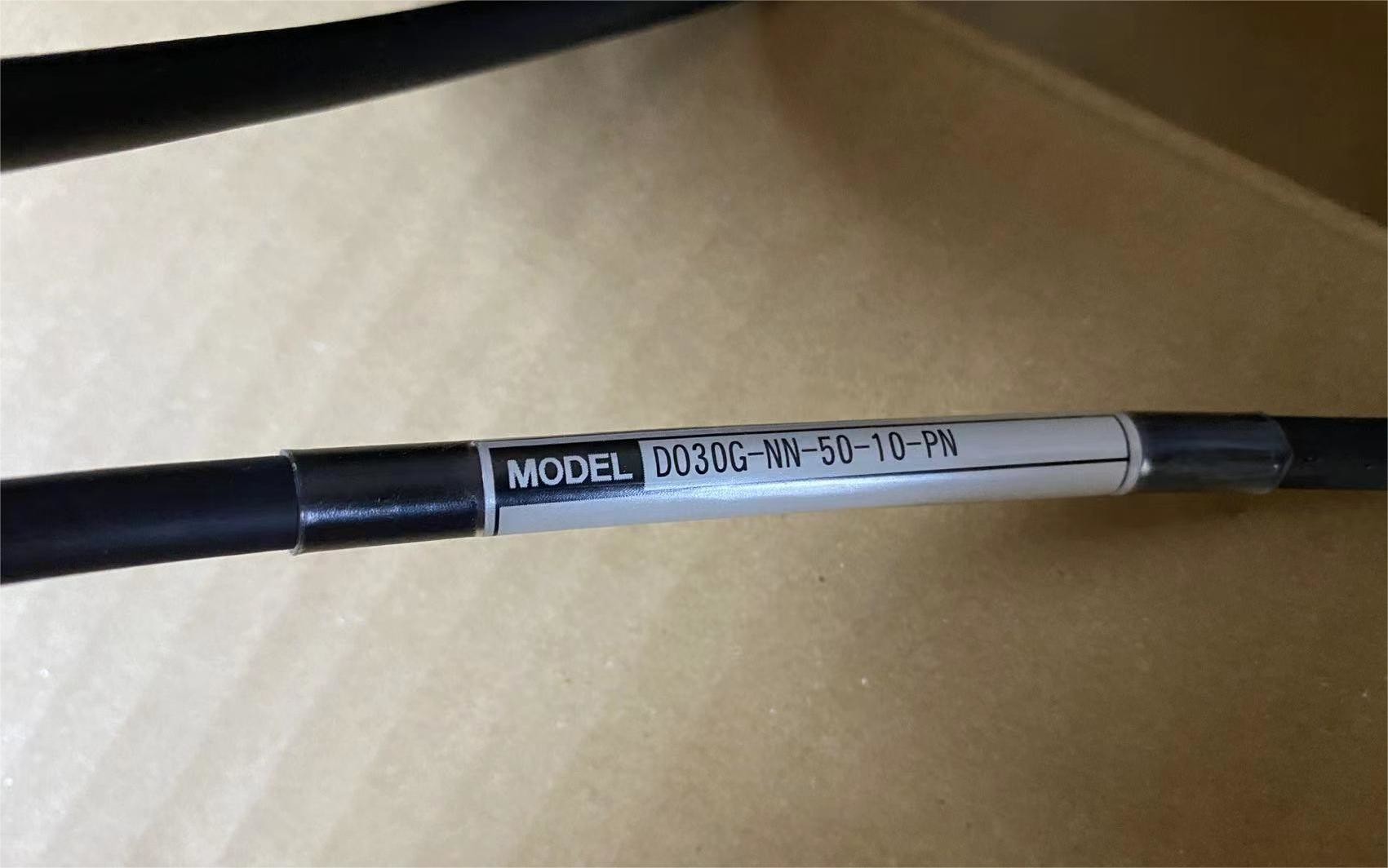

YOKOGAWA DO30G Dissolved Oxygen Sensor DP30G-NN-50-10-PN
The DO30G sensor for dissolved oxygen is designed for use in water treatment plants such as sewage treatment works, effluent activated sludge process, and potable water treatment. It is also effective in river monitoring, intake protection, fish farming and other fields where water quality is important.
This galvanic cell has a fast response time and good long term stability, and features replaceable diaphragm and cable for easy maintenance. A temperature sensor is incorporated for compensation. The DO30G sensor can be used in either the floating ball fitting or in the immersion fitting.
Features
- Fast response time
- Good long term stability
- Easy membrane change
DO Sensor
|
Model |
Suffix Code |
Option Code |
Description |
||||
|
DO30G |
|
|
Dissolved Oxygen Sensor |
||||
|
|
-NN |
|
Always -NN |
||||
|
Membrane thickness |
-50 |
|
50 µm |
||||
|
Cable length |
-03 -05 -10 -15 -20 |
|
3m 5m 10m 15m 20m |
||||
|
Cable terminal |
-PN -FK -FL -FM |
|
Pin terminal *1 Fork terminal M4 ring terminal *2 M3 ring terminal *3 |
||||
*1 Can be used for FLXA402, FLXA202/ FLXA21, DO402G or DO202.When terminal box is used, select WTB10-DO3.
*2 Used to connection to FLXA202/FLXA21. When terminal box is used, select WTB10-DO4.
*3 Used to connection to FLXA402. When terminal box is used, select WTB10-DO3.
