96ma 24v MTL Safety Barrier MTL5544D Repeater Power Supply
Product Details:
| Place of Origin: | USA |
| Brand Name: | MTL |
| Certification: | CE |
| Model Number: | MTL5544D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard carton packing |
| Delivery Time: | on request |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Number Of Channels: | One | Temperature Drift: | < 0.8µA/°C |
|---|---|---|---|
| Response Time: | Settles To Within 10% Of Final Value Within 50µs | Communications Supported: | HART (terminals 1 & 2, Output Ch 1 Only) |
| LED Indicator: | Green: Power Indication | Maximum Power Dissipation Within Unit: | 96mA At 24V Dc |
| Highlight: | 24V MTL Safety Barrier,96ma MTL5544D MTL Safety Barrier,CE REPEATER POWER SUPPLY |
||
Product Description

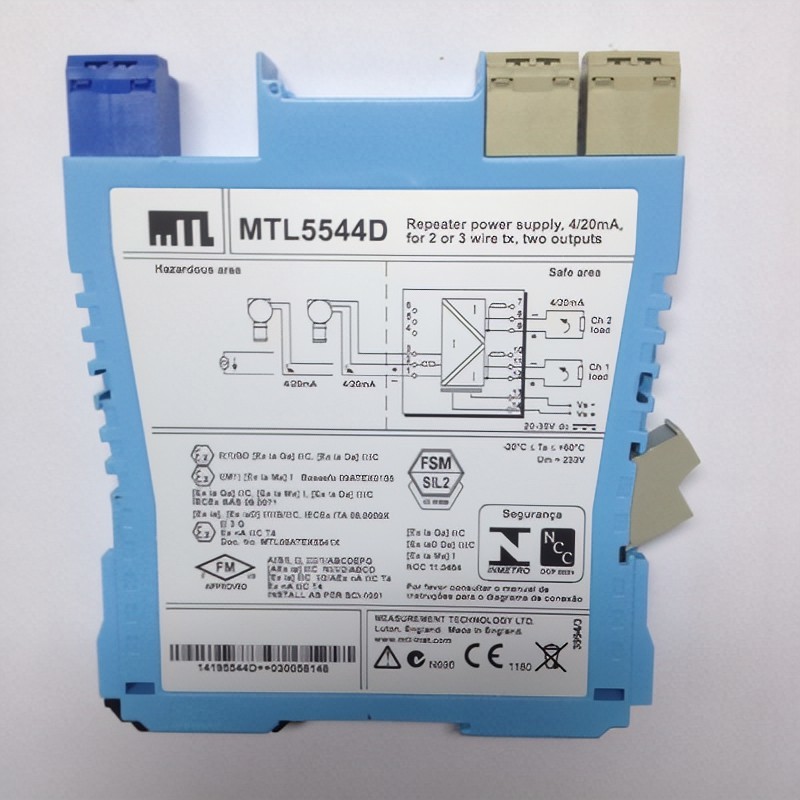

MTL5544D REPEATER POWER SUPPLY

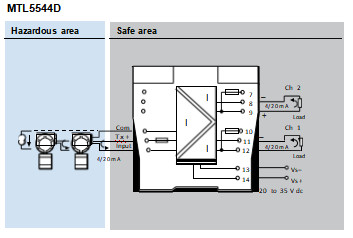

The MTLx544D provides a fully-floating dc supply for energising a conventional 2- or 3-wire 4/20mA transmitter located in a hazardous area, and repeats the current in other circuits to drive two safe-area loads. For HART 2-wire transmitters, the unit allows bi-directional transmission of digital communication signals superimposed on the 4/20mA loop current. Separately powered current sources, such as 4-wire transmitters, can be connected but will not support HART communication.
SPECIFICATION
Number of channels
One
Location of transmitter
Zone 0, IIC, T4–6 hazardous area if suitably certified
Div. 1, Group A hazardous location
Safe-area output
Signal range: 4 to 20mA
Under/over-range: 0 to 24mA
Safe-area load resistance
@ 24mA: 0 to 360Ω
@ 20mA: 0 to 450Ω
Safe-area circuit output resistance: > 1MΩ
Safe-area circuit ripple
< 50µA peak-to-peak
Hazardous-area input
Signal range: 0 to 24mA (including over-range)
Transmitter voltage: 16.5V at 20mA
Transfer accuracy at 20°C
Better than 15µA
Temperature drift
< 0.8µA/°C
Response time
Settles to within 10% of final value within 50µs
Communications supported
HART (terminals 1 & 2, output Ch 1 only)
LED indicator
Green: power indication
Maximum current consumption (with 20mA signals)
96mA at 24V dc
Power dissipation within unit (with 20mA signals)
1.4W @ 24V dc
Safety description
Terminals 2 to 1 and 3:
Uo =28V Io =93mA Po =651mW Um = 253V rms or dc Terminals 1 to 3:
Simple apparatus ≤1.5V, ≤0.1A and ≤25mW; can be connected without further certification into any IS loop with an open-circuit voltage <28V
