500Hz To 10kHz MTL4546Y Isolating Driver 16V 20mA ODM
Product Details:
| Place of Origin: | USA |
| Brand Name: | MTL |
| Certification: | CE |
| Model Number: | MTL4546Y |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard carton packing |
| Delivery Time: | on request |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Number Of Channels: | One | Location Of I/P Converter: | Zone 0, IIC, T4–6 Hazardous Area If Suitably Certified Div. 1, Group A, Hazardous Location |
|---|---|---|---|
| Digital Signal Bandwidth: | 500Hz To 10kHz | Maximum Load Resistance: | 800Ω (16V At 20mA) |
| Output Resistance: | > 1MΩ | LED Indicator: | Green: Power Indication |
| Highlight: | MTL4546Y,10kHz isolating driver,500Hz isolating driver |
||
Product Description

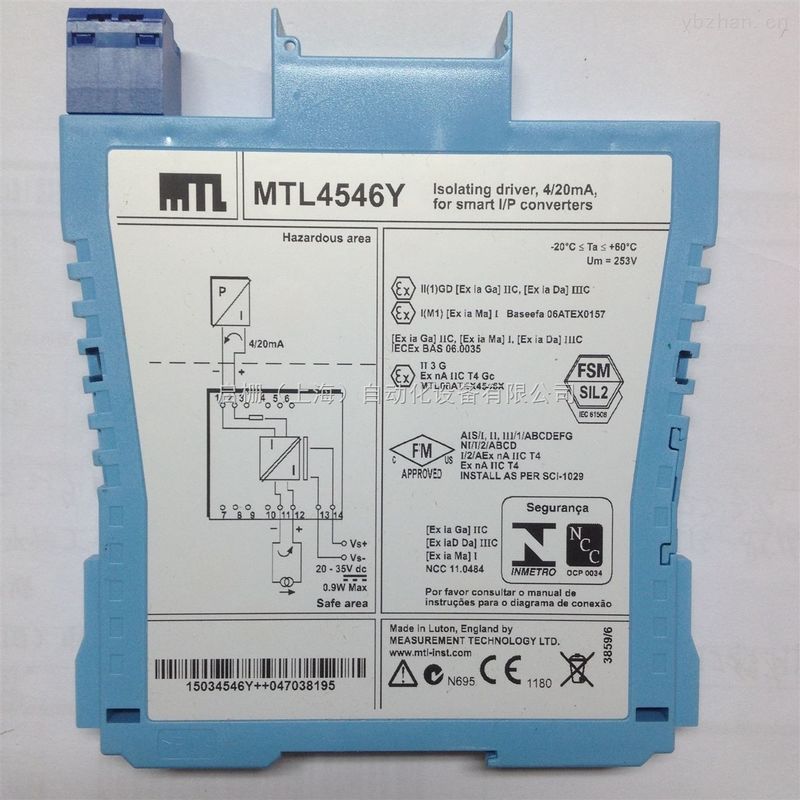

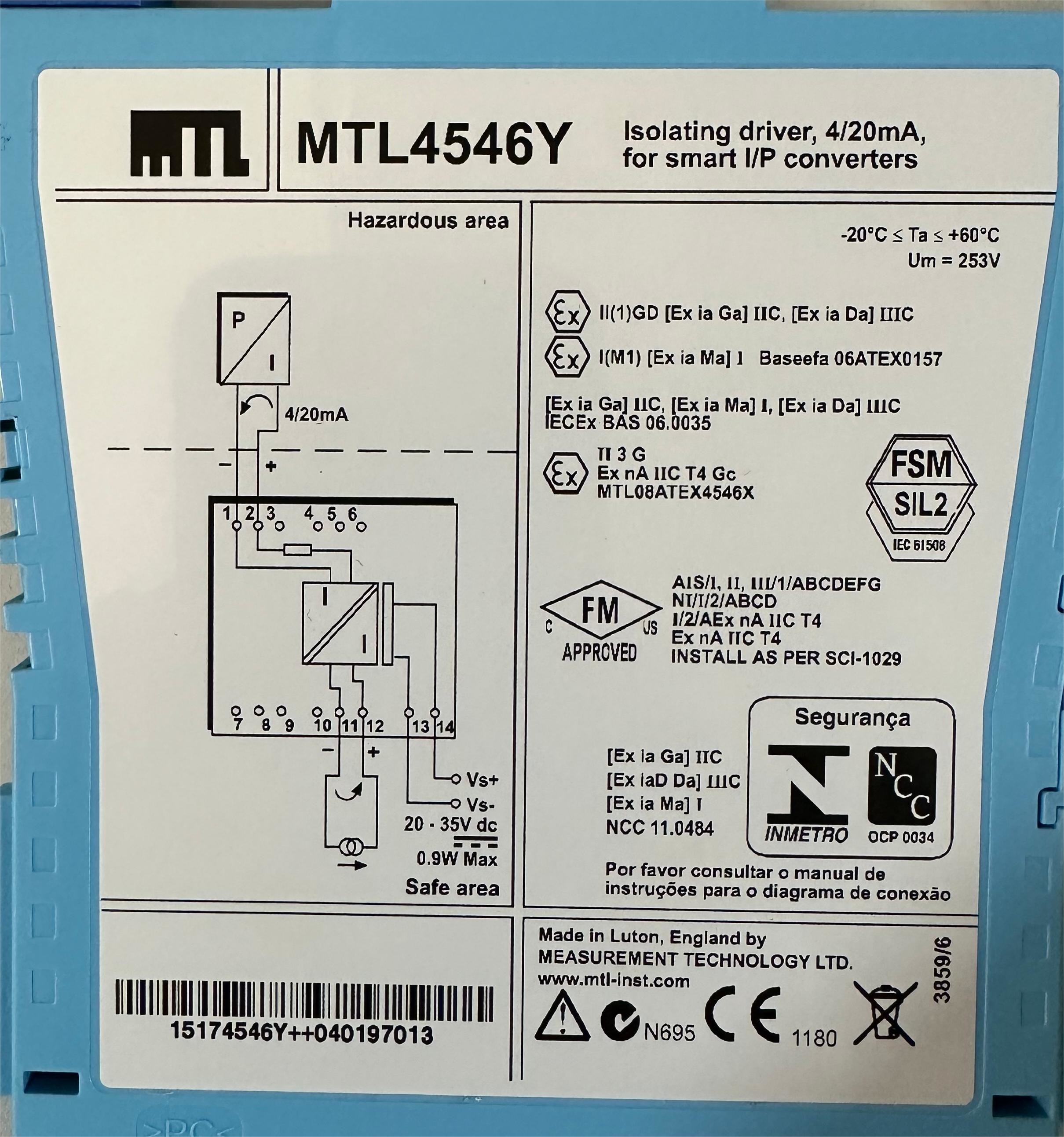

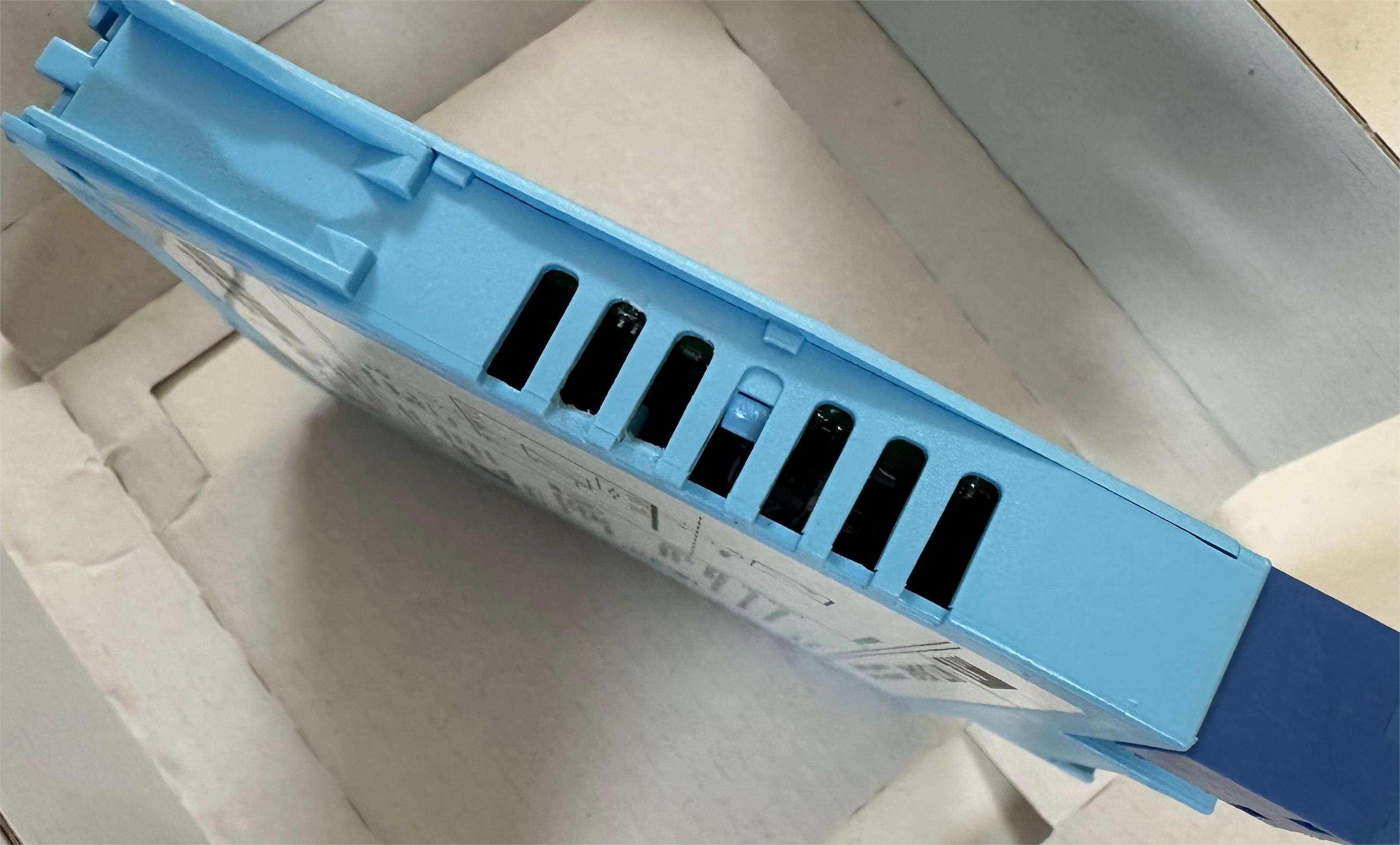

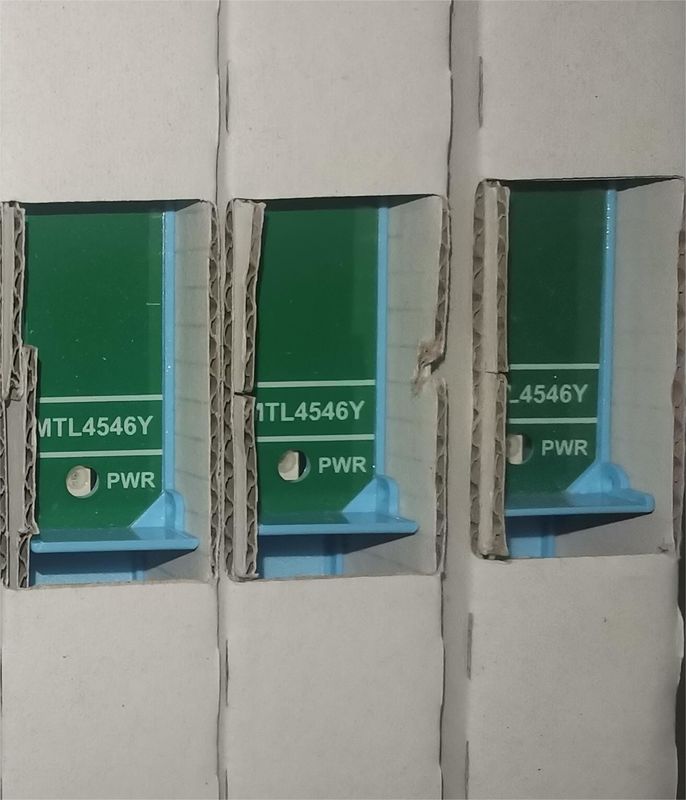

MTL4546Y ISOLATING DRIVER
The MTLx546 accepts a 4/20mA floating signal from a safe-area controller to drive a current/pressure converter (or any other load up to 800Ω) in a hazardous area. For HART valve positioners, the module also permits bi-directional transmission of digital communication signals. Process controllers with a readback facility can detect open or short circuits in the field wiring: if these occur, the current taken into the terminals drops to a preset level. The MTL4546C and the MTLx546Y are very similar to the MTLx546 except that they provide open circuit detection only (i.e. no short-circuit detection).
SPECIFICATION
Number of channels
One
Location of I/P converter
Zone 0, IIC, T4–6 hazardous area if suitably certified Div. 1, Group A, hazardous location
Working range
4 to 20mA
Digital signal bandwidth
500Hz to 10kHz
Maximum load resistance
800Ω (16V at 20mA)
Minimum load resistance
90Ω (short-circuit detection at < 50Ω)
Output resistance
> 1MΩ
Under/over range capability
Under range = 1mA
Over range = 24mA (load ≤ 520Ω)
Input and output circuit ripple
< 40µA peak-to-peak
Transfer accuracy at 20°C
Better than 20µA
Temperature drift
< 1.0µA/°C
LED indicator
Green: power indication
Maximum current consumption (with 20mA signals into 250Ω load)
35mA at 24V dc
Power dissipation within unit (with 20mA signals into 250Ω load)
0.8W at 24V
Safety description
Uo =28V Io =93mA Po =651mW Um = 253V rms or dc
