Home ProductsEmerson Rosemount Transmitter396-54-62 Emerson Rosemount Transmitter Rosemount 396 Submersion/Insertion Ph Sensor

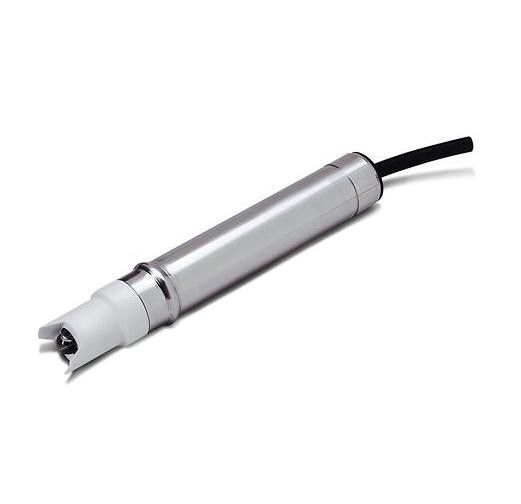

396-54-62 Emerson Rosemount Transmitter Rosemount 396 Submersion/Insertion Ph Sensor

396-54-62 Emerson Rosemount Transmitter Rosemount 396 Submersion/Insertion Ph Sensor
396-54-62 Emerson Rosemount Transmitter Rosemount 396 Submersion/Insertion Ph Sensor 396-54-62 Emerson Rosemount Transmitter Rosemount 396 Submersion/Insertion Ph Sensor 396-54-62 Emerson Rosemount Transmitter Rosemount 396 Submersion/Insertion Ph Sensor
Basic Information
Place of Origin: Mexico
Brand Name: Rosemount
Certification: CE
Model Number: 396-54-62
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: on request
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now
Measurements And Ranges: PH: 0 To 14 Available PH ACCUGLASS Types: GPHT Hemi Bulb Or GPHT Flat Bulb
Wetted Materials: 316 Stainless Steel, Polypropylene, EPDM, Glass Process Connection: None, Use 1 In (25 Mm) NPT Process Connector, PN 23166-00 Or 23166-01 (sold Separately)
Temperature Range: 32.0 °F (0 °C) To 212.0 °F (100 °C) Pressure Range-hemi Bulb: 0 Psig (0.00 Barg) To 150 Psig (10.34 Barg)
Pressure Range-flat Bulb: 0 Psig (0.00 Barg) To 100 Psig (6.89 Barg) Weight/shipping Weight: 1 Lb (0.5 Kg)/2 Lb (0.9 Kg)
Highlight:

396-54-62 Emerson Rosemount Transmitter

,

SS316 Emerson Rosemount Transmitter

,

Rosemount 396

Rosemount 396 Submersion/Insertion pH Sensor 396-54-62

TUpH sensors for your tough pH/oxidation reduction potential (ORP) applications



Rosemount TUpH pH/ORP sensors are robust sensors designed to meet a number of difficult application requirements. Sensors feature a variety of options suited to meet a number of installation requirements and are ideal for use in dirty, abrasive, coating, and high solid applications.





Rosemount 396 ordering information



Model





Code Description
396 pH sensor: TUpH® insertion/submersion/flow-through



Cable termination



Code Description
54 For use with Rosemount 56, 1056, 1066, 1057, and 5081



Option 1



Code Description
_ No selection, standard 15 ft (4.57 m) cable
62 Cable without BNC for direct wiring to Rosemount 56, 1056, 1057, 1066, and 5081
07 Without preamplifier, 4 ft (1.22 m) cable
08 Without preamplifier, 10 ft (3.05 m) cable



Option 2



Code

Description

_

No selection

71

GPHT flat bulb



Calibration and conformance certificates - optional level



Code

Description

CC

Certificate of Calibration (no test data given)

LC

Loop Calibration Certificate (sensor and transmitter calibrated together with test data)

EC

Electronic Calibration Certificate (sensor calibrated against factory instrument with test data)





Related Part Number:



1056-01-22-38-AN
1056-01-25-38-AN
1056-02-20-38
1056-03-22-32-AN
1056面板
1057-02-20-32-42
1066-CL-HT-73
1066-P-HT-73
3900-01-10
3900-02-103
3900-10-01
3900VP-01-10
4847B61G01
5081-P-HT-20-73
21501-08
23242-02
23294-00-99
23502-08
23554-00
23820-00
24091-00
24263
33521-00
33523-00
211001L1NAQ4
499ACL-01-54-VP







396-54-62 Emerson Rosemount Transmitter Rosemount 396 Submersion/Insertion Ph Sensor 0
