0.27lb Emerson Rosemount Transmitter 333 HART® Tri-Loop™ Signal Converter Hart Tri Loop 333u
Product Details:
| Place of Origin: | Thailand |
| Brand Name: | Rosemount |
| Certification: | CE |
| Model Number: | 333U |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard carton packing |
| Delivery Time: | on request |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Output Signal: | 3 Additional Analog Signals | Ambient Temperature Effect: | ±0.15% Of Span |
|---|---|---|---|
| Stability: | ±0.1% Of Span For 12 Months | Ambient: | 50 To 104 °F (10 To 40 °C) |
| Storage: | –40 To 158 °F (–40 To 70 °C) | Reference Accuracy: | ±0.045% Of Span |
| Dimensions: | 1.57 X 3.11 X 3.36 In. (40 X 79 X 85.5 Mm) | Weight: | 0.27 Lb (0.12 Kg) |
| Highlight: | 0.27lb Emerson Rosemount Transmitter,ODM Emerson Rosemount Transmitter,hart tri loop 333u |
||
Product Description

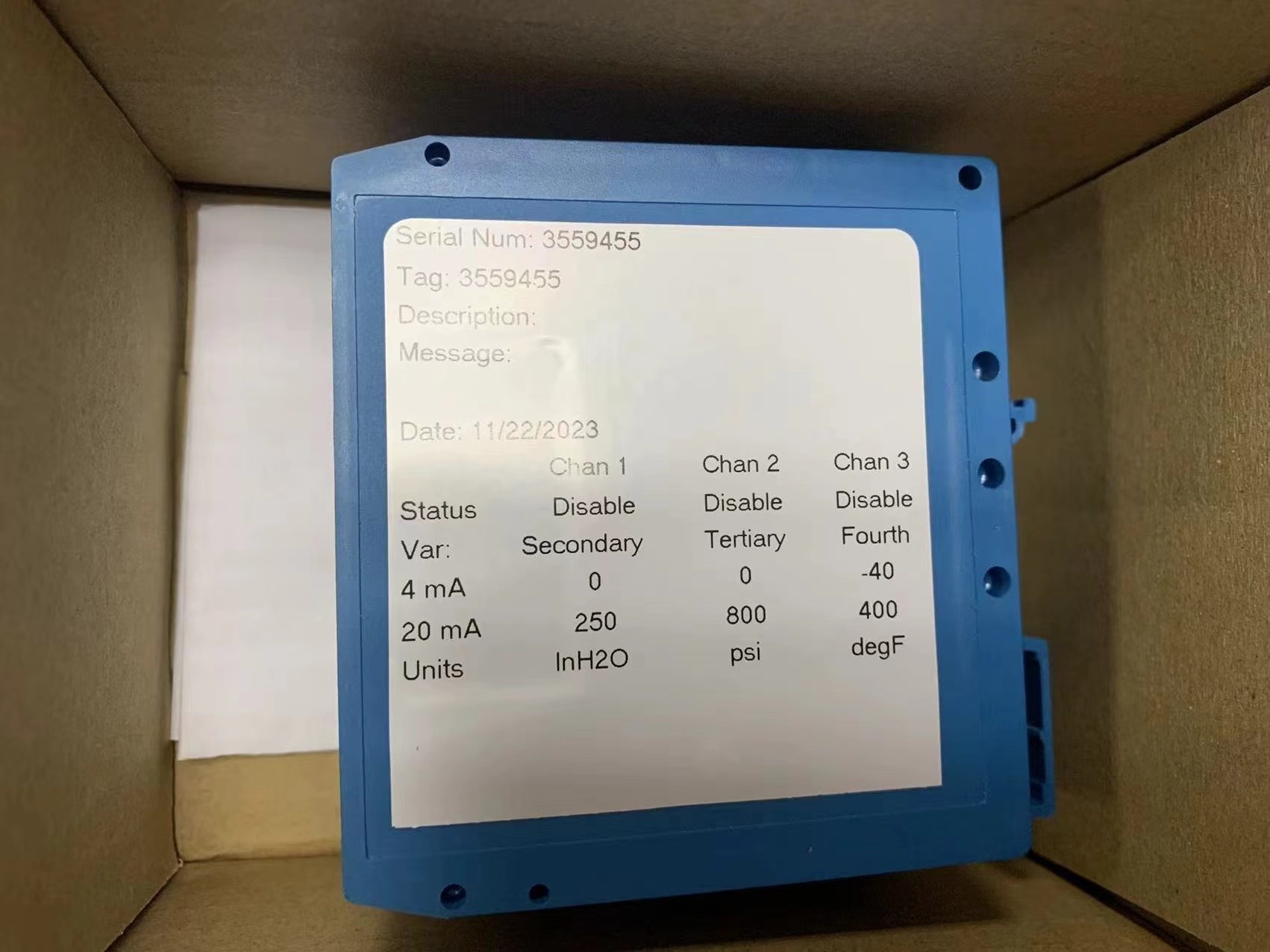

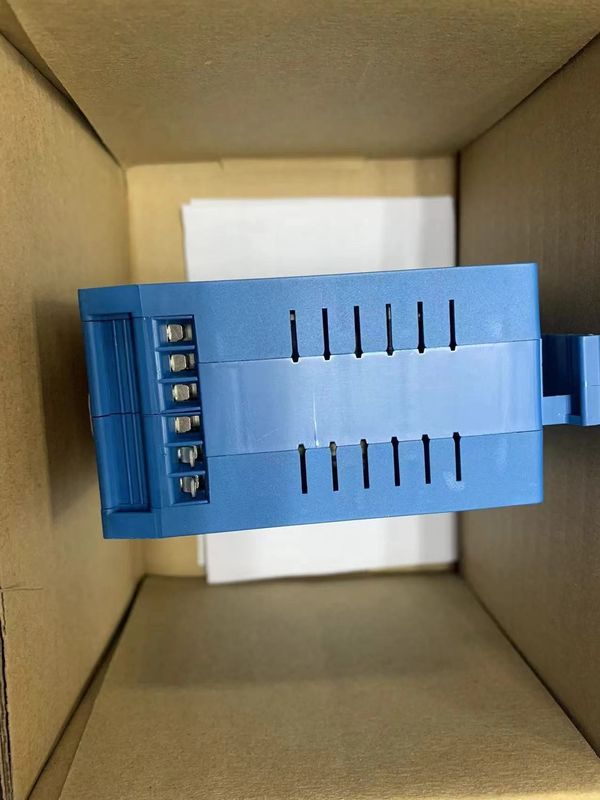

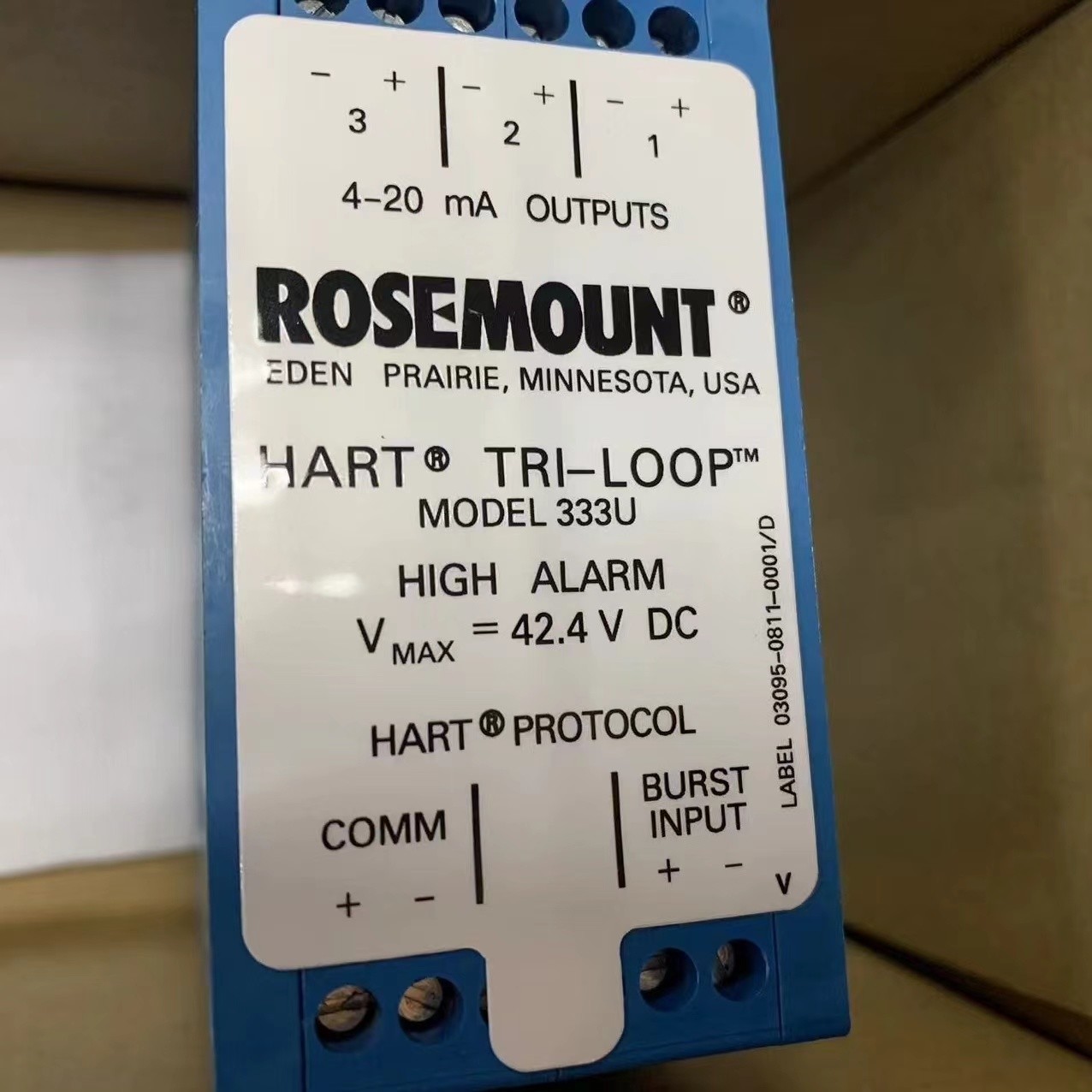

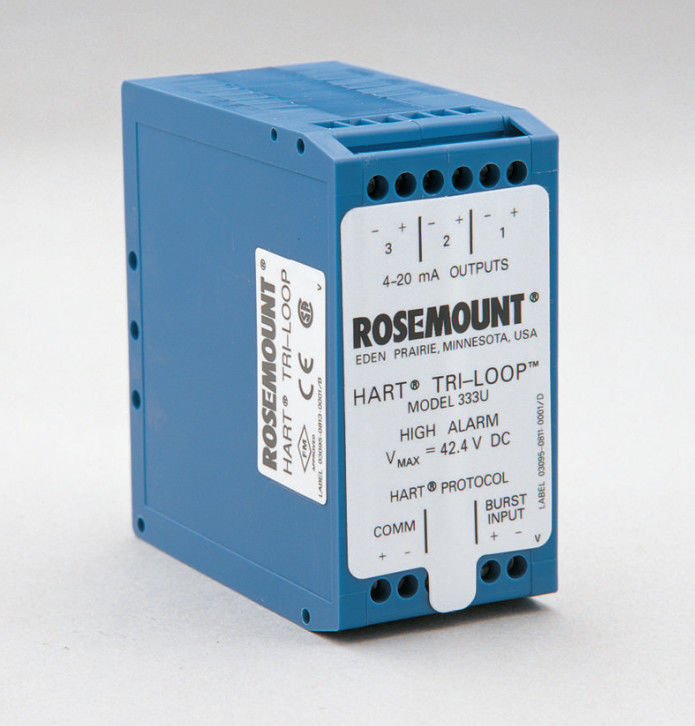

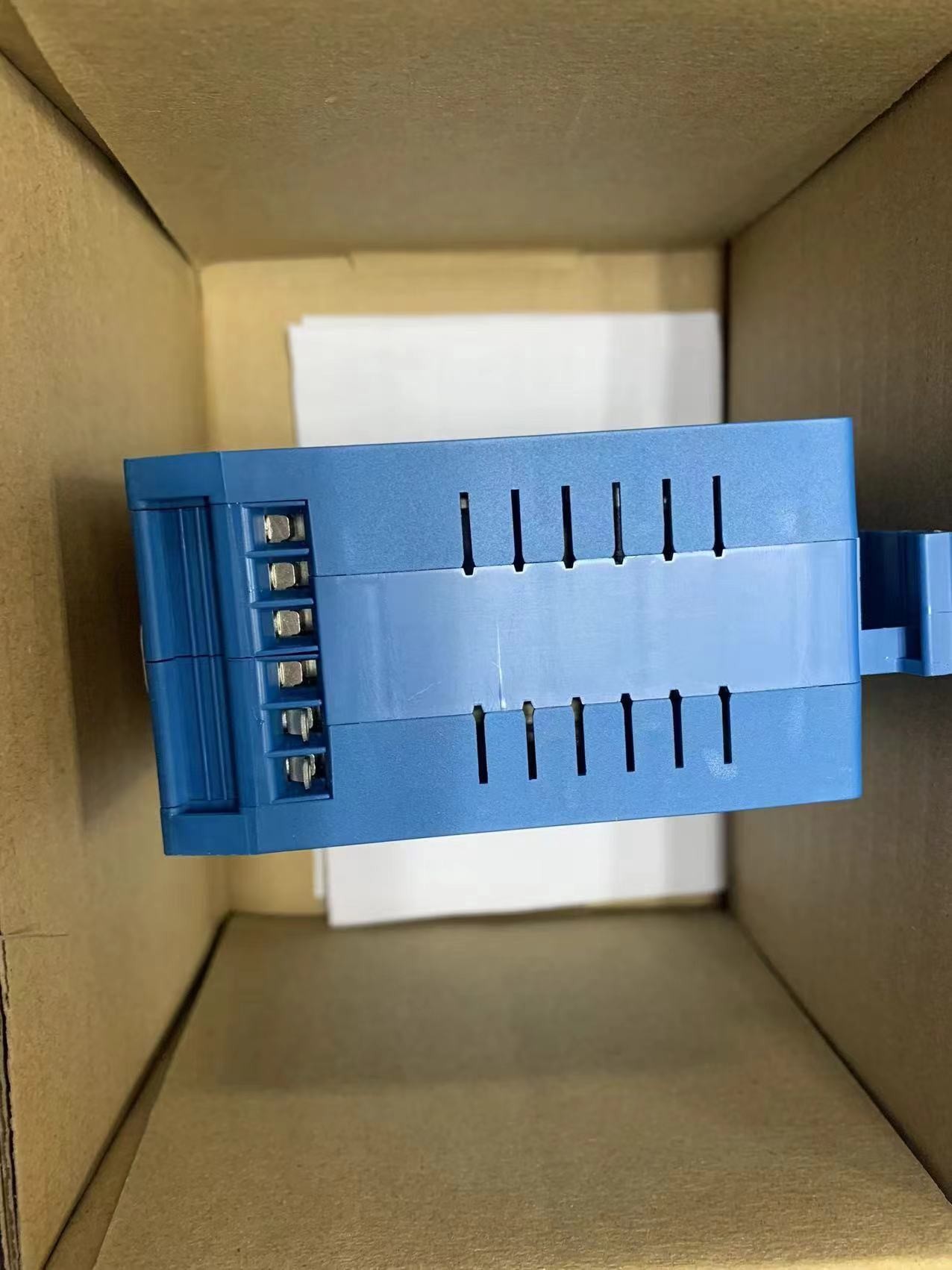

Rosemount 333 HART® Tri-Loop™ Signal Converter 333U
With the Rosemount 333 HART Tri-Loop Signal Converter, you can easily obtain up to three additional analog outputs. This signal converter is designed to convert a digital HART multivariable signal into three independent 4-20 mA analog process variables without additional transmitters and wiring. Available as a high-alarm or low-alarm device, this product also offers DIN rail mount options and electrically isolated analog output channels for flexible configurations.
Required model components
Model
| Code | Description | |
| 333 | HART® Tri-Loop™ | * |
Alarm option
| Code | Description | |
| U | High alarm | * |
| D | Low alarm | * |
Configuration option
| Code | Description | |
| C2 | Custom configuration (Configuration Data Sheet must be completed) | * |
Dimensional drawings
